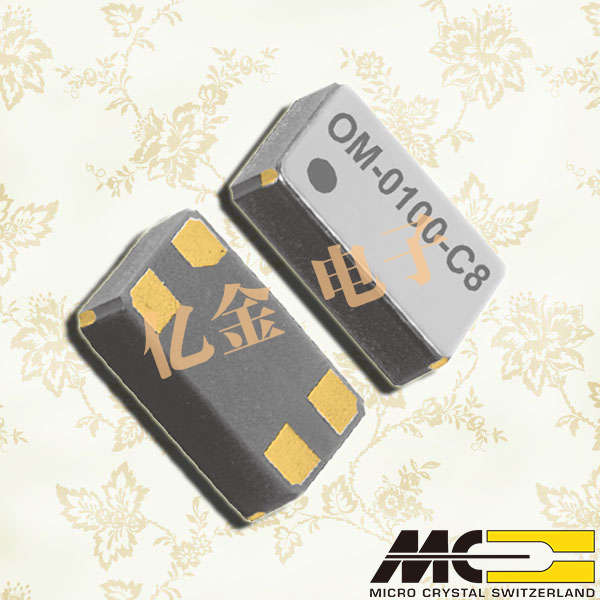

Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器
- 频率：100KHz
- 尺寸：2.0×1.2mm
- 应 用： 欧美晶振,Micro Crystal晶振,OM-0100-C8时钟振荡器,有源晶振,OM-0100-C8-20ppm-TA-QC晶振,千赫晶体KHZ,石英晶体振荡器,2012mm晶振,四脚贴片晶振,SMD晶振,频率100KHz,电压1.2~5.5V,工作温度-40~85°C,频率容差20ppm,无...
-
-
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器,欧美晶振,Micro Crystal晶振,OM-0100-C8时钟振荡器,有源晶振,OM-0100-C8-20ppm-TA-QC晶振,千赫晶体KHZ,石英晶体振荡器,2012mm晶振,四脚贴片晶振,SMD晶振,频率100KHz,电压1.2~5.5V,工作温度-40~85°C,频率容差20ppm,无铅环保晶振,低功耗晶振,轻薄小晶振,物联网晶振,工业自动化晶振,测试与测量仪器晶振,卫生保健晶振.
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器特点：
•宽电源电压范围
•非常低的功耗
•CLKOUT启用/禁用
•小尺寸，低轮廓，重量轻(5.1毫克)
•高抗冲击和抗振动
•100%不含铅，符合RoHS标准
•具备AEC-Q200汽车资质
Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器规格表
|
Standard Frequency
|
FL | 100.000 | KHz |
|
Supply voltage
|
VDD
|
1.2~5.5 | V |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Current consumption (typ./max.)
|
IDD
|
0.55 / 0.75
|
µA
|
|
Duty cycle (min./max.)
|
|
40 / 60
|
% |
|
Start up time (max.)
|
tstart
|
0.5
|
S
|
|
Voltage coefficient (max.)
|
|
±3
|
ppm/V
|
|
Aging first year max. @ 25°C
|
ΔF/F
|
±3
|
ppm
|
|
Turnover temperature (typ.)
|
T0
|
28 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/ °C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TA Operating temperature range
|
T_use | −40~+85 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

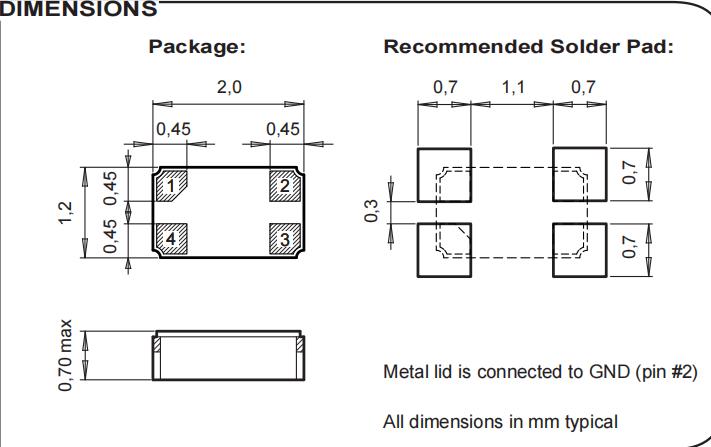

Micro Crystal|OM-0100-C8-20ppm-TA-QC|低功耗时钟振荡器尺寸图
.jpg)
.jpg)
