SG3225VEN能够轻易识别网络信号以及精确的处理双极信号

来源：http://m.hneyq.com 作者：亿金电子 2022年08月24

LVDS（Low Voltage Differential Signaling)它是一种低摆幅的差分信号技术，它使得信号能够在差PCB线对或平衡电缆上以几百的Mbps的速率传输，其低压幅以及低电流驱动输出实现了低噪声以及低功耗。LVDS（Low Voltage Differential Signaling）是一种小振幅差分信号技术，LVDS晶振信号传输一般由三部分组成：差分信号发送器，差分信号互联器，差分信号接收器。

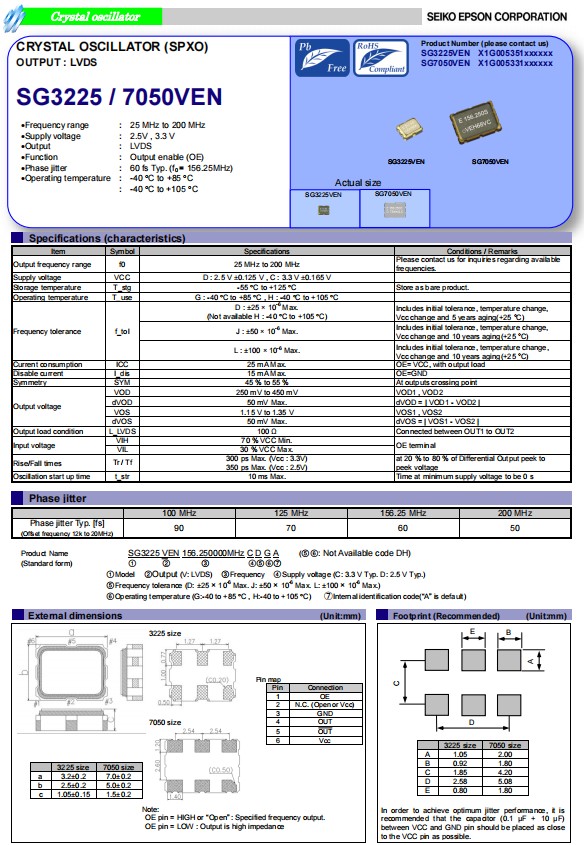

爱普生晶振SG3225VEN，是一款LVDS差分晶振，小体积晶振尺寸3.2x2.5mm有源晶振，石英晶体振荡器，六脚贴片晶振，电源电压:2.5V，3.3V，频率范围:25MHz至200MHz，具有超小型，轻薄型，低电源电压，低抖动，低耗能，低损耗，低功耗等特点，被广泛用于通讯设备,机顶盒,光端机,安防设备及各种频率控制设备上.
SG3225VEN能够轻易识别网络信号以及精确的处理双极信号,X1G005351101800,LVDS晶振

Product Number	Model	Frequency	爱普生晶振	Output Wave	Supply Voltage
X1G005351000100	SG3225VEN	72.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351000200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351000300	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351000700	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351000800	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351001100	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351001200	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351001900	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351002000	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351002100	SG3225VEN	148.351640 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351002200	SG3225VEN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351002300	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351002400	SG3225VEN	74.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V
X1G005351002600	SG3225VEN	30.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	3.135 to 3.465 V

X1G005351100600	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351100700	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351100800	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351100900	SG3225VEN	125.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101000	SG3225VEN	25.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101100	SG3225VEN	72.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101200	SG3225VEN	156.250000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101300	SG3225VEN	133.333000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101400	SG3225VEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101500	SG3225VEN	50.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101600	SG3225VEN	100.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101800	SG3225VEN	156.242187 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351101900	SG3225VEN	200.000000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351102000	SG3225VEN	148.351648 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V
X1G005351102100	SG3225VEN	148.500000 MHz	3.20 x 2.50 x 1.20 mm	LVDS	2.375 to 2.625 V

SG3225VEN能够轻易识别网络信号以及精确的处理双极信号,X1G005351101800,LVDS晶振
日本爱普生LVDS晶振也就是我们所说的EPSON差分晶振,具有多种输出功能，能够轻易识别网络信号以及精确的处理双极信号.
差分贴片晶体振荡器使用于产品中能够很容易地识别小信号,能够从容精确地处理'双极'信号,对外部电磁干扰（EMI）是高度免疫的.
