首頁進口晶振愛普生晶振X1G004171002100|13MHz|50PPM|2520|1.6-3.6V|-40~+85℃

X1G004171002100|13MHz|50PPM|2520|1.6-3.6V|-40~+85℃

頻率：13MHz
尺寸：2520
應　用： X1G004171002100|13MHz|50PPM|2520|1.6-3.6V|-40~+85℃，日本EPSON晶振公司，1612mm晶振,貼片晶振,愛普生晶振,2520,X1G004171002100晶振,2520晶振,SG-210STF13.0000ML3晶振,日本進口晶振,高品質晶振,SG-210STF晶振,穿...

X1G004171002100|13MHz|50PPM|2520|1.6-3.6V|-40~+85℃，日本EPSON晶振公司，1612mm晶振,貼片晶振 ,愛普生晶振,2520,X1G004171002100晶振,2520晶振,SG-210STF13.0000ML3晶振,日本進口晶振,高品質晶振,SG-210STF晶振,穿戴設備晶振,汽車大燈控制器晶振，車載多媒體設備晶振，X1G0041710016晶振，X1G0041710019晶振，X1G0041710026晶振

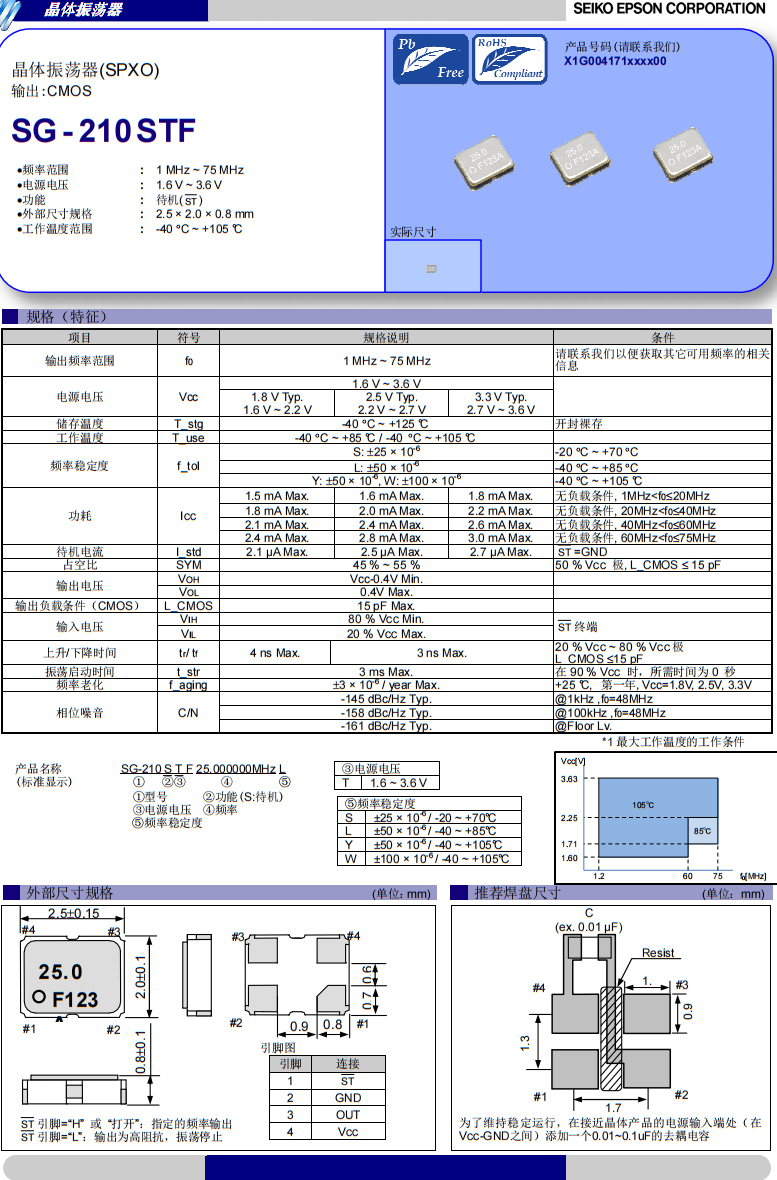

產品型號：	SG-210STF 13.000000MHz L
產品編碼：	X1G004171002100
產品系列：	SG-210STF
北美編碼：	SG-210STF13.0000ML3
標稱頻率：	13MHz
頻率公差：	+/-50 ppm
安裝方式：	SMD
封裝代號：	2520
外部尺寸：	2.50 x 2.00 x 0.90 mm
輸出波形：	CMOS
電源電壓：	1.600 to 3.600 V
工作溫度：	‘-40~85℃
功耗電流：	≤ 1.8 mA
頻率老化：	’+/-3ppm
功能：	ST

愛普生原廠編碼	型號	頻率	尺寸	輸出	工作溫度	頻率穩定度
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710005	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710006	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710007	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710008	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710009	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710010	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710011	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710012	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710013	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710014	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710015	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710016	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710017	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710018	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710019	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710020	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710021	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710022	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710023	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710024	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710025	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710026	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710027	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	CMOS	-40 to 85 °C	+/-50 ppm
