首页欧美晶振 Abracon晶振ABM11-48.000MHZ-D7X-T|48MHz|15PPM|10PF|-40~85℃

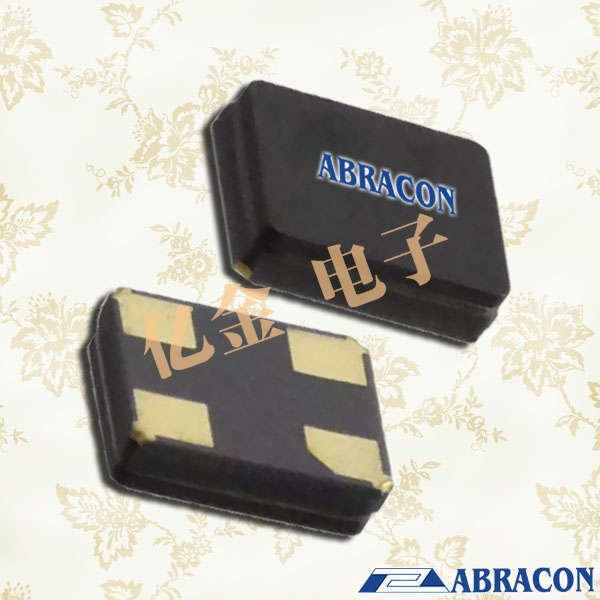

ABM11-48.000MHZ-D7X-T|48MHz|15PPM|10PF|-40~85℃

频率：48MHz

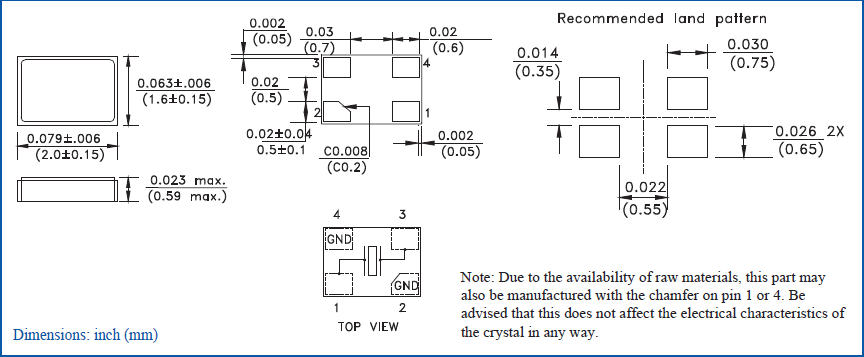

尺寸：2016
应　用： ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃，欧美艾伯康晶振公司,2.0x1.6x0.59mm超微型包装。适用于符合RoHS标准的回流阀。密封陶瓷封装，金属盖，保证高精度和可靠性。移动电话，寻呼机。通讯和测试设备。...

ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃，欧美艾伯康晶振公司,2.0 x 1.6 x 0.59mm超微型包装。•适用于符合RoHS标准的回流阀。•密封陶瓷封装，金属盖，保证高精度和可靠性。移动电话，寻呼机。通讯和测试设备。高密度应用程序PCMCIA和无线应用程序。

ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃

频率

16.000

50.000

MHz

工作模式

Fundamental

工作温度

- 10

+60

ºC

See options

储存温度

--40

+85

ºC

频率公差 @+25°C

--30

+30

ppm

See options

工作温度下的频率稳定性 ( ref. to +25°C)

--50

+50

ppm

See options

等效串联电阻 (R1)

150

16.000~17.999MHz

120

18.000~20.999MHz

100

21.000~29.999 MHz

30.000~37.999 MHz

38.000~50.000 MHz

并联电容 (C0)

7.0

负载电容(CL)

Standard (See options if
other than STD)

驱动电平

100

µW

老化

--5

ppm

@25°C±3°C
First year

绝缘电阻

500

@ 100Vdc ± 15V

ABM2-24.576MHZ-D4Y-T|24.576MHz|18PF|30PPM|-40~85℃

ABM112

ABRACON编号	制造商	型号	频率	频率容差	负载电容
ABM11-143-27.120MHZ-T3	Abracon LLC	ABM11	27.12 MHz	±10ppm	8pF
ABM11-140-26.000MHZ-T3	Abracon LLC	ABM11	26 MHz	±10ppm	8pF
ABM11-16.000MHZ-D2X-T3	Abracon LLC	ABM11	16 MHz	±20ppm	10pF
ABM11-30.000MHZ-B1U-T	Abracon LLC	ABM11	30 MHz	±10ppm	10pF
ABM11-20.000MHZ-D2X-T3	Abracon LLC	ABM11	20 MHz	±20ppm	10pF
ABM11-25.000MHZ-D7X-T	Abracon LLC	ABM11	25 MHz	±15ppm	10pF
ABM11-142-27.120MHZ-T3	Abracon LLC	ABM11	27.12 MHz	±10ppm	8pF
ABM11-38.400MHZ-D2X-T3	Abracon LLC	ABM11	38.4 MHz	±20ppm	10pF
ABM11-25.000MHZ-D2X-T3	Abracon LLC	ABM11	25 MHz	±20ppm	10pF
ABM11-24.000MHZ-D2X-T3	Abracon LLC	ABM11	24 MHz	±20ppm	10pF
ABM11-48.000MHZ-D2X-T3	Abracon LLC	ABM11	48 MHz	±20ppm	10pF
ABM11-30.000MHZ-D2X-T3	Abracon LLC	ABM11	30 MHz	±20ppm	10pF
ABM11-32.000MHZ-D2X-T3	Abracon LLC	ABM11	32 MHz	±20ppm	10pF
ABM11-28.63636MHZ-D2X-T3	Abracon LLC	ABM11	28.63636 MHz	±20ppm	10pF
ABM11-27.000MHZ-D2X-T3	Abracon LLC	ABM11	27 MHz	±20ppm	10pF
ABM11-32.000MHZ-B7G-T	Abracon LLC	ABM11	32 MHz	±15ppm	10pF
ABM11-25.000MHZ-B7G-T	Abracon LLC	ABM11	25 MHz	±15ppm	10pF
ABM11-26.000MHZ-B7G-T	Abracon LLC	ABM11	26 MHz	±15ppm	10pF
ABM11-24.000MHZ-B7G-T	Abracon LLC	ABM11	24 MHz	±15ppm	10pF
ABM11-40.000MHZ-B7G-T	Abracon LLC	ABM11	40 MHz	±15ppm	10pF
ABM11-26.000MHZ-B1U-T	Abracon LLC	ABM11	26 MHz	±10ppm	10pF
ABM11-16.000MHZ-12-N1G-T	Abracon LLC	ABM11	16 MHz	±10ppm	12pF
ABM11-27.000MHZ-B1U-T	Abracon LLC	ABM11	27 MHz	±10ppm	10pF
ABM11-27.000MHZ-D7X-T	Abracon LLC	ABM11	27 MHz	±15ppm	10pF
ABM11-48.000MHZ-D7X-T	Abracon LLC	ABM11	48 MHz	±15ppm	10pF
ABM11-24.000MHZ-12-B1U-T	Abracon LLC	ABM11	24 MHz	±10ppm	12pF
ABM11-16.000MHZ-9-B1U-T	Abracon LLC	ABM11	16 MHz	±10ppm	9pF
ABM11-27.000MHZ-B7G-T	Abracon LLC	ABM11	27 MHz	±15ppm	10pF
ABM11-20.000MHZ-B7G-T	Abracon LLC	ABM11	20 MHz	±15ppm	10pF
ABM11-28.63636MHZ-B7G-T	Abracon LLC	ABM11	28.63636 MHz	±15ppm	10pF
ABM11-32.000MHZ-B1U-T	Abracon LLC	ABM11	32 MHz	±10ppm	10pF
ABM11-38.400MHZ-B7G-T	Abracon LLC	ABM11	38.4 MHz	±15ppm	10pF
ABM11-38.400MHZ-B1U-T	Abracon LLC	ABM11	38.4 MHz	±10ppm	10pF
ABM11-32.000MHZ-8-7G-T	Abracon LLC	ABM11	32 MHz	±15ppm	8pF
ABM11-27.120MHZ-B1U-T	Abracon LLC	ABM11	27.12 MHz	±10ppm	10pF
ABM11-24.000MHZ-12-N1G-T	Abracon LLC	ABM11	24 MHz	±10ppm	12pF
ABM11-40.000MHZ-B1U-T3	Abracon LLC	ABM11	40 MHz	±10ppm	10pF
ABM11-24.000MHZ-B1U-T	Abracon LLC	ABM11	24 MHz	±10ppm	10pF
ABM11-25.000MHZ-18-B2Y-T	Abracon LLC	ABM11	25 MHz	±20ppm	18pF
