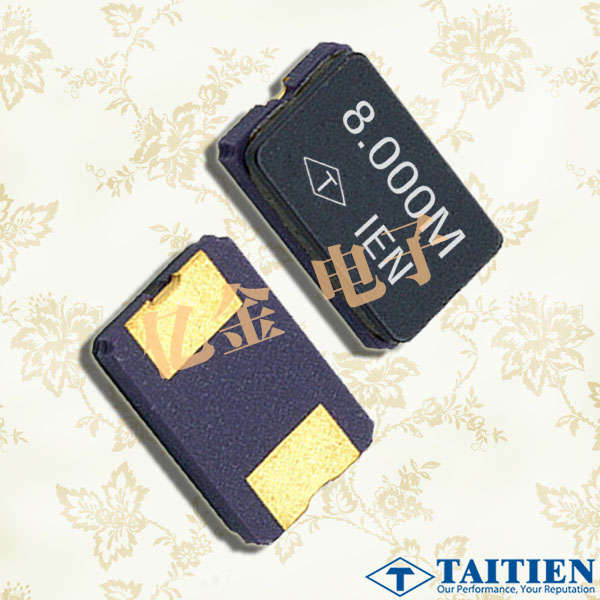

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF
- 频率：24.576MHz
- 尺寸：5032mm
- 应 用： XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF，台产泰艺晶振，典型的5.0x3.2x1.2mm全陶瓷SMD包装。12mm宽的胶带和卷轴线圈包装，用于自动组装。汽车，笔记本电脑，电脑外设，硬盘-MP3播放器，视听设备XSCGGCNA...
-
-
.jpg)
.jpg)

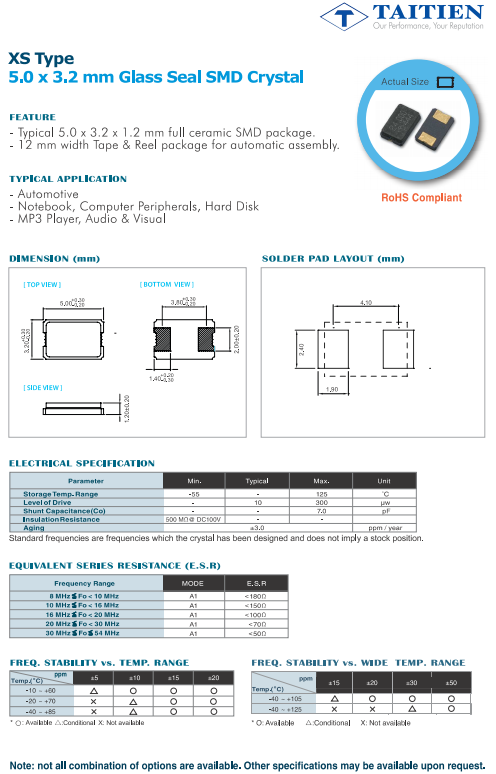

XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF，台产泰艺晶振，典型的5.0x3.2x1.2mm全陶瓷SMD包装。12 mm宽的胶带和卷轴线圈包装，用于自动组装。汽车，笔记本电脑，电脑外设，硬盘-MP3播放器，视听设备
XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF
| 参数 | 最小值 | 典型的 | 最大值 | 单位 |
| 储存温度 | --55 | - | 125 | ℃ |
| 驱动电平 | - | 10 | 300 | µw |
| 并联电容 | - | - | 7.0 | pF |
| 绝缘电阻 | 500 M?@ DC100V | - | - | |
| 老化 | ±3 | ppm / year | ||
.jpg)
XSCGGCNANF-24.576000-TAITIEN-24.576MHz-50PPM-10PF
| TAITIEN原厂编码 | 生产厂家 | 型号 | 频率 | 频率稳定度 | 频率偏差 | 负载电容 |
| XSCEECNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | ±30ppm | 10pF |
| XSCEGCNANF-10.000000 | TAITIEN晶振 | XS | 10MHz | ±50ppm | ±30ppm | 10pF |
| XSCGGCNANF-24.576000 | TAITIEN晶振 | XS | 24.576MHz | ±50ppm | ±50ppm | 10pF |
| XSDEECNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELNANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELNANF-13.560000 | TAITIEN晶振 | XS | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 12pF |
| XSDEGCNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±50ppm | ±30ppm | 12pF |
| XSFGGLNANF-20.000000 | TAITIEN晶振 | XS | 20MHz | ±50ppm | ±50ppm | 16pF |
| XSGEECNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±30ppm | ±30ppm | 18pF |
| XSGEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 18pF |
| XSGEGLNANF-13.000000 | TAITIEN晶振 | XS | 13MHz | ±50ppm | ±30ppm | 18pF |
| XSHEECNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSHEELNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSHGGLNANF-11.059200 | TAITIEN晶振 | XS | 11.0592MHz | ±50ppm | ±50ppm | 20pF |
| XSHGGLNANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±50ppm | ±50ppm | 20pF |
| XSHGGLNANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±50ppm | ±50ppm | 20pF |
| XSHGGLNANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±50ppm | ±50ppm | 20pF |
| XSDEELAANF-12.000000 | TAITIEN晶振 | XS | 12MHz | ±30ppm | ±30ppm | 12pF |
| XSDEELAANF-13.560000 | TAITIEN晶振 | XS | 13.56MHz | ±30ppm | ±30ppm | 12pF |
| XSGEECAANF-16.000000 | TAITIEN晶振 | XS | 16MHz | ±30ppm | ±30ppm | 18pF |
| XSGEELAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 18pF |
| XSHEECAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSHEELAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±30ppm | ±30ppm | 20pF |
| XSGCCLNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±20ppm | ±20ppm | 18pF |
| XSGCECNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | ±20ppm | 18pF |
| XSGCELNANF-8.000000 | TAITIEN晶振 | XS | 8MHz | ±30ppm | ±20ppm | 18pF |
| XSHCCLNANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±20ppm | ±20ppm | 20pF |
| XSCDDCAANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±25ppm | ±25ppm | 10pF |
| XSGCCLAANF-25.000000 | TAITIEN晶振 | XS | 25MHz | ±20ppm | ±20ppm | 18pF |
| XSFPPCNANF-50.000000 | TAITIEN晶振 | XS | 50MHz | ±15ppm | ±15ppm | 16pF |
| XSDEELNANF-37.050000 | TAITIEN晶振 | XS | 37.05MHz | ±30ppm | ±30ppm | 12pF |
| XSCDDCNANF-24.000000 | TAITIEN晶振 | XS | 24MHz | ±25ppm | ±25ppm | 10pF |
.jpg)
.jpg) |
