首页进口晶振泰艺晶振X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃

X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃

频率：48MHz
尺寸：1612

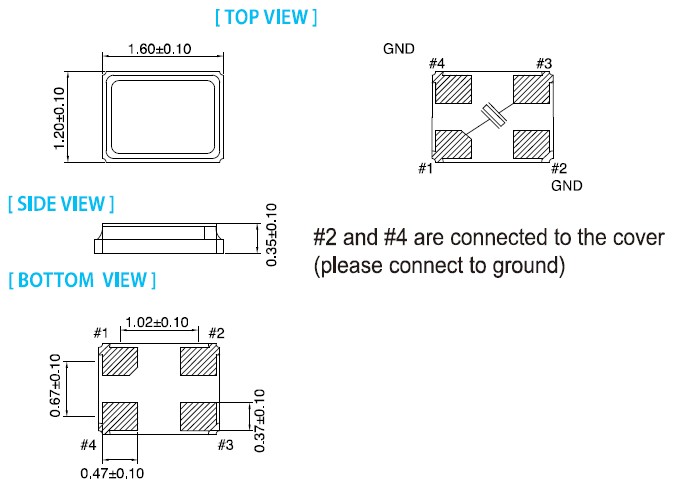

应　用： X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃,台湾泰艺无源晶体,典型的1.65x1.25x0.3mm超薄陶瓷包装，8mm宽的胶带和卷轴包装，用于自动组装，紧密公差10ppm可用。蓝牙，移动电话，无线局域网。事务工作自动化...

X3AEELNANF-48.000000,48MHz,30PPM,8PF,1612,-40~85℃,台湾泰艺无源晶体,典型的1.65 x 1.25 x 0.3 mm超薄陶瓷包装，8 mm宽的胶带和卷轴包装，用于自动组装，紧密公差10 ppm可用。蓝牙，移动电话，无线局域网。事务工作自动化，音频和视频。

参数	最小值	典型的	最大值	Unit
储存温度	-40	-	125	℃
标准频率	48			MHz
驱动电平	-	10	200	uW
并联电容	-	-	3.0	pF
绝缘电阻	500M Q @ DC100V	-	-
老化	±1.0 to ±3.0			ppm/year

TAITIEN原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	工作温度
X3AEEJNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEEJNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 105°C
X3AEELNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	48MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	48MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3AEELNANF-48.000000	Taitien晶振	X3	48MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
X3LEECNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-26.000000	Taitien晶振	X3	26MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.000000	Taitien晶振	X3	27MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-27.120000	Taitien晶振	X3	27.12MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-30.000000	Taitien晶振	X3	30MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-38.400000	Taitien晶振	X3	38.4MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
X3LEECNANF-40.000000	Taitien晶振	X3	40MHz	±30ppm	±30ppm	6pF	-20°C ~ 70°C
