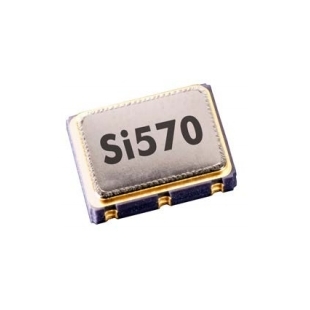

思佳讯有源晶振,571ACA000148DG,6G光纤通道晶振
- 频率：24.576MHz
- 尺寸：7.0×5.0mm
- 应 用： 欧美进口晶振,思佳讯有源晶振,Si571压控晶振,571ACA000148DG晶振,VCXO晶振,7050mm晶振,SMD晶体,石英晶体振荡器,LVPECL晶振,差分晶振,频率24.576MHz,电压3.3V,工作温度-40~85°C,无铅环保晶振,低抖动晶振,高品质晶振,6...
-
-
思佳讯有源晶振,571ACA000148DG,6G光纤通道晶振,欧美进口晶振,思佳讯有源晶振,Si571压控晶振,571ACA000148DG晶振,VCXO晶振,7050mm晶振,SMD晶体,石英晶体振荡器,LVPECL晶振,差分晶振,频率24.576MHz,电压3.3V,工作温度-40~85°C,无铅环保晶振,低抖动晶振,高品质晶振,6G光纤通道晶振,网络交换晶振,无线通信晶振,时钟和数据恢复晶振.
思佳讯有源晶振,571ACA000148DG,6G光纤通道晶振特点：
•可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz
•I2C串行接口
•第三代DSPLL®具有优越的抖动性能
•频率稳定性优于SAW-based振荡器
•内部固定晶频，可靠性高，老化低
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•工业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
思佳讯有源晶振,571ACA000148DG,6G光纤通道晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 24.576MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±50 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 130mA Max |
LVPECL
|
| 对称性（占空比） | SYM | 45%~55% | 在输出交叉点 |
| 输出电压 | VOD | 1.9VPP Max |
LVPECL
|
| VO | 1.25V Max | ||
| 输入电压 | VIH | 0.75XVDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降时间 | tr/tf | 350ps Max |
LVPECL
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 0.62ps Max |
Differential Formats
|
.jpg)
思佳讯有源晶振,571ACA000148DG,6G光纤通道晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 |
| 571AEA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571BMC000804DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMC000804DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BAA000522DG | Skyworks Solutions Inc. | Si571 | 545 MHz | LVDS | 2.97V ~ 3.63V | ±100ppm |
| 571BBA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±100ppm |
| 571BBA000126DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.97V ~ 3.63V | ±100ppm |
| 571BFA000166DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571ECA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.25V ~ 2.75V | ±50ppm |
| 571FCA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571FCA000313DG | Skyworks Solutions Inc. | Si571 | 300 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571FCA001742DG | Skyworks Solutions Inc. | Si571 | 300 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571FDA000113DG | Skyworks Solutions Inc. | Si571 | 311.04 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571MDA001661DG | Skyworks Solutions Inc. | Si571 | 496.685652 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571NCA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571SCA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.25V ~ 2.75V | ±50ppm |
| 571ACA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000141DG | Skyworks Solutions Inc. | Si571 | 56.32 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000148DG | Skyworks Solutions Inc. | Si571 | 24.576 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000206DG | Skyworks Solutions Inc. | Si571 | 321.4 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ACA000209DG | Skyworks Solutions Inc. | Si571 | 14.1 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000382DG | Skyworks Solutions Inc. | Si571 | 1.375 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001549DG | Skyworks Solutions Inc. | Si571 | 993.409691 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001841DG | Skyworks Solutions Inc. | Si571 | 802.5 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571AFA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571AFA000133DG | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000395DG | Skyworks Solutions Inc. | Si571 | 904.64 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BCA000675DG | Skyworks Solutions Inc. | Si571 | 51.84 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001064DG | Skyworks Solutions Inc. | Si571 | 589.824 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001122DG | Skyworks Solutions Inc. | Si571 | 1.4 GHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001628DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001721DG | Skyworks Solutions Inc. | Si571 | 830 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000164DG | Skyworks Solutions Inc. | Si571 | 400 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA000233DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA001971DG | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 3.3V | ±50ppm |
| 571ECA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 571ECA000399DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 571ECA002033DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.5V | ±50ppm |
| 571FFA000161DG | Skyworks Solutions Inc. | Si571 | 491.52 MHz | LVDS | 2.5V | ±50ppm |
| 571ADA000106DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 571ACA000106DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA002143DG | Skyworks Solutions Inc. | Si571 | 444 MHz | LVPECL | 3.3V | ±50ppm |
| 571BDA000115DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 571BDA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 571ADA000991DG | Skyworks Solutions Inc. | Si571 | 135 MHz | LVPECL | 3.3V | ±50ppm |
| 571ADA000115DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVPECL | 3.3V | ±50ppm |
| 571BDA000436DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 3.3V | ±50ppm |
| 571BGA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA001666DGR | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000170DGR | Skyworks Solutions Inc. | Si571 | 915 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000278DGR | Skyworks Solutions Inc. | Si571 | 146.52 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000118DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000372DGR | Skyworks Solutions Inc. | Si571 | 800 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001082DGR | Skyworks Solutions Inc. | Si571 | 320 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001118DGR | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001898DGR | Skyworks Solutions Inc. | Si571 | 102.4 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000118DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000164DGR | Skyworks Solutions Inc. | Si571 | 400 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000179DGR | Skyworks Solutions Inc. | Si571 | 312.5 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000788DGR | Skyworks Solutions Inc. | Si571 | 438 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000804DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571EJA000763DGR | Skyworks Solutions Inc. | Si571 | 1.09 GHz | LVPECL | 2.25V ~ 2.75V | ±20ppm |
| 571FGA000126DGR | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FHA000103DGR | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000466DGR | Skyworks Solutions Inc. | Si571 | 161.733417 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000741DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000742DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000743DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000744DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000745DGR | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571MHA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000542DGR | Skyworks Solutions Inc. | Si571 | 698.812335 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571NEA001677DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NHA000399DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000143DGR | Skyworks Solutions Inc. | Si571 | 117 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000409DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571SHA000115DGR | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571SHA001843DGR | Skyworks Solutions Inc. | Si571 | 1.29948467 GHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571AEA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000133DGR | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000197DGR | Skyworks Solutions Inc. | Si571 | 614.4 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000227DGR | Skyworks Solutions Inc. | Si571 | 980 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000444DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000462DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000467DGR | Skyworks Solutions Inc. | Si571 | 990 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000498DGR | Skyworks Solutions Inc. | Si571 | 825 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000928DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001455DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001677DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001678DGR | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001679DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001680DGR | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001796DGR | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000192DGR | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000239DGR | Skyworks Solutions Inc. | Si571 | 233.639 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000240DGR | Skyworks Solutions Inc. | Si571 | 877.969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000420DGR | Skyworks Solutions Inc. | Si571 | 644.53125 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000106DGR | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000372DGR | Skyworks Solutions Inc. | Si571 | 800 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000550DGR | Skyworks Solutions Inc. | Si571 | 146.54 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000618DGR | Skyworks Solutions Inc. | Si571 | 437.5 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA001612DGR | Skyworks Solutions Inc. | Si571 | 698.812334 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000137DGR | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000192DGR | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000374DGR | Skyworks Solutions Inc. | Si571 | 200 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000400DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000409DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000512DGR | Skyworks Solutions Inc. | Si571 | 706.25 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001118DGR | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001212DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001741DGR | Skyworks Solutions Inc. | Si571 | 70.656 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001748DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001757DGR | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001788DGR | Skyworks Solutions Inc. | Si571 | 993.40969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001789DGR | Skyworks Solutions Inc. | Si571 | 1.0242396 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001863DGR | Skyworks Solutions Inc. | Si571 | 978 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001959DGR | Skyworks Solutions Inc. | Si571 | 873 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000105DGR | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000165DGR | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000166DGR | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000444DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000501DGR | Skyworks Solutions Inc. | Si571 | 1.333 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000788DGR | Skyworks Solutions Inc. | Si571 | 438 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000107DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000122DGR | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000126DGR | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA001828DGR | Skyworks Solutions Inc. | Si571 | 1.1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001973DGR | Skyworks Solutions Inc. | Si571 | 993 MHz | LVPECL | 3.3V | ±20ppm |
| 571AMA001971DGR | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm |
| 571BGA000476DGR | Skyworks Solutions Inc. | Si571 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 571AMA000121DGR | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 571BJA000215DGR | Skyworks Solutions Inc. | Si571 | 27 MHz | LVDS | 3.3V | ±20ppm |
| 571AJA000337DGR | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 571NEA001679DGR | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 3.3V | ±20ppm |
| 571AEA002238DGR | Skyworks Solutions Inc. | Si571 | 63 MHz | LVPECL | 3.3V | ±20ppm |
| 571NJA000181DGR | Skyworks Solutions Inc. | Si571 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 571BEA002345DGR | Skyworks Solutions Inc. | Si571 | 873.49794 MHz | LVDS | 3.3V | ±20ppm |
| 571AJA002230DGR | Skyworks Solutions Inc. | Si571 | 155.48 MHz | LVPECL | 3.3V | ±20ppm |
| 571BGA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BGA001666DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000170DG | Skyworks Solutions Inc. | Si571 | 915 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BHA000278DG | Skyworks Solutions Inc. | Si571 | 146.52 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000118DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA000372DG | Skyworks Solutions Inc. | Si571 | 800 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001082DG | Skyworks Solutions Inc. | Si571 | 320 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001118DG | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BJA001898DG | Skyworks Solutions Inc. | Si571 | 102.4 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000118DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000164DG | Skyworks Solutions Inc. | Si571 | 400 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000179DG | Skyworks Solutions Inc. | Si571 | 312.5 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000788DG | Skyworks Solutions Inc. | Si571 | 438 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BMA000804DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571EJA000763DG | Skyworks Solutions Inc. | Si571 | 1.09 GHz | LVPECL | 2.25V ~ 2.75V | ±20ppm |
| 571FGA000126DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FHA000103DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000466DG | Skyworks Solutions Inc. | Si571 | 161.733417 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000741DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000742DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000743DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000744DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FJA000745DG | Skyworks Solutions Inc. | Si571 | 156.25 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571FMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571MHA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MJA000542DG | Skyworks Solutions Inc. | Si571 | 698.812335 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571MMA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571NEA001677DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NHA000399DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NJA000143DG | Skyworks Solutions Inc. | Si571 | 117 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571NMA000409DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571SHA000115DG | Skyworks Solutions Inc. | Si571 | 125 MHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571SHA001843DG | Skyworks Solutions Inc. | Si571 | 1.29948467 GHz | LVDS | 2.25V ~ 2.75V | ±20ppm |
| 571AEA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000133DG | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000197DG | Skyworks Solutions Inc. | Si571 | 614.4 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000227DG | Skyworks Solutions Inc. | Si571 | 980 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000444DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000462DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000467DG | Skyworks Solutions Inc. | Si571 | 990 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000498DG | Skyworks Solutions Inc. | Si571 | 825 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA000928DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001455DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001677DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001678DG | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001679DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001680DG | Skyworks Solutions Inc. | Si571 | 993.41 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AEA001796DG | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000192DG | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000239DG | Skyworks Solutions Inc. | Si571 | 233.639 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000240DG | Skyworks Solutions Inc. | Si571 | 877.969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AGA000420DG | Skyworks Solutions Inc. | Si571 | 644.53125 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000106DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000372DG | Skyworks Solutions Inc. | Si571 | 800 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000550DG | Skyworks Solutions Inc. | Si571 | 146.54 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA000618DG | Skyworks Solutions Inc. | Si571 | 437.5 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AHA001612DG | Skyworks Solutions Inc. | Si571 | 698.812334 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000137DG | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000192DG | Skyworks Solutions Inc. | Si571 | 647.239 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000374DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000400DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000409DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA000512DG | Skyworks Solutions Inc. | Si571 | 706.25 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001118DG | Skyworks Solutions Inc. | Si571 | 784.247202 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001212DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001741DG | Skyworks Solutions Inc. | Si571 | 70.656 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001748DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001757DG | Skyworks Solutions Inc. | Si571 | 1.024 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001788DG | Skyworks Solutions Inc. | Si571 | 993.40969 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001789DG | Skyworks Solutions Inc. | Si571 | 1.0242396 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001863DG | Skyworks Solutions Inc. | Si571 | 978 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001959DG | Skyworks Solutions Inc. | Si571 | 873 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000105DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000165DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000166DG | Skyworks Solutions Inc. | Si571 | 622.08 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000444DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000501DG | Skyworks Solutions Inc. | Si571 | 1.333 GHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571AMA000788DG | Skyworks Solutions Inc. | Si571 | 438 MHz | LVPECL | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000107DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000122DG | Skyworks Solutions Inc. | Si571 | 1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA000126DG | Skyworks Solutions Inc. | Si571 | 200 MHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571BEA001828DG | Skyworks Solutions Inc. | Si571 | 1.1 GHz | LVDS | 2.97V ~ 3.63V | ±20ppm |
| 571AJA001973DG | Skyworks Solutions Inc. | Si571 | 993 MHz | LVPECL | 3.3V | ±20ppm |
| 571AMA001971DG | Skyworks Solutions Inc. | Si571 | 873.51542 MHz | LVPECL | 3.3V | ±20ppm |
| 571BGA000476DG | Skyworks Solutions Inc. | Si571 | 322.265625 MHz | LVDS | 3.3V | ±20ppm |
| 571AJA000337DG | Skyworks Solutions Inc. | Si571 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 571BEA002345DG | Skyworks Solutions Inc. | Si571 | 873.49794 MHz | LVDS | 3.3V | ±20ppm |
| 571BJA000215DG | Skyworks Solutions Inc. | Si571 | 27 MHz | LVDS | 3.3V | ±20ppm |
| 571NJA000181DG | Skyworks Solutions Inc. | Si571 | 148.5 MHz | LVDS | 3.3V | ±20ppm |
| 571NEA001679DG | Skyworks Solutions Inc. | Si571 | 873.515 MHz | LVDS | 3.3V | ±20ppm |
| 571AMA000121DG | Skyworks Solutions Inc. | Si571 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 571AEA002238DG | Skyworks Solutions Inc. | Si571 | 63 MHz | LVPECL | 3.3V | ±20ppm |
| 571AJA002230DG | Skyworks Solutions Inc. | Si571 | 155.48 MHz | LVPECL | 3.3V | ±20ppm |
| 571EJB000111DG | Skyworks Solutions Inc. | Si571 | 25 MHz | LVPECL | 2.25V ~ 2.75V | ±20ppm |
| 571BFA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571MDA000265DGR | Skyworks Solutions Inc. | Si571 | 1.3 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000133DGR | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000803DGR | Skyworks Solutions Inc. | Si571 | 148.351648 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001211DGR | Skyworks Solutions Inc. | Si571 | 700 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001243DGR | Skyworks Solutions Inc. | Si571 | 900 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA001548DGR | Skyworks Solutions Inc. | Si571 | 993.409692 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571AFA000112DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000282DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000399DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA000400DGR | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001517DGR | Skyworks Solutions Inc. | Si571 | 433.5 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001606DGR | Skyworks Solutions Inc. | Si571 | 77.76 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BDA001752DGR | Skyworks Solutions Inc. | Si571 | 142.8 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571BFA000112DG | Skyworks Solutions Inc. | Si571 | 10 MHz | LVDS | 2.97V ~ 3.63V | ±50ppm |
| 571MDA000265DG | Skyworks Solutions Inc. | Si571 | 1.3 GHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000133DG | Skyworks Solutions Inc. | Si571 | 500 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
| 571ADA000803DG | Skyworks Solutions Inc. | Si571 | 148.351648 MHz | LVPECL | 2.97V ~ 3.63V | ±50ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://m.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
