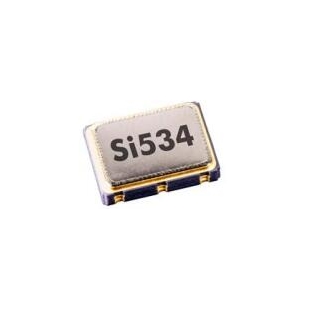

思佳讯电子晶振,534BB212M500DGR,6G光纤通道晶振
- 频率：212.5MHz
- 尺寸：7.0×5.0mm
- 应 用： 思佳讯电子晶振,Si534进口贴片晶振,有源晶振,石英晶体振荡器,534BB212M500DGR晶振,LVDS晶振,差分晶振,7050mm晶振,频率212.5MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,高稳定性晶振,低抖动晶振,无铅环保晶振,6G...
-
-
思佳讯电子晶振,534BB212M500DGR,6G光纤通道晶振,思佳讯电子晶振,Si534进口贴片晶振,有源晶振,石英晶体振荡器,534BB212M500DGR晶振,LVDS晶振,差分晶振,7050mm晶振,频率212.5MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,高稳定性晶振,低抖动晶振,无铅环保晶振,6G光纤通道晶振,测试和测量仪器晶振,摄像机和视频设备晶振,信息娱乐系统晶振.
思佳讯电子晶振,534BB212M500DGR,6G光纤通道晶振特点：
•可与任意速率输出频率从10MHz到945MHz和选择频率到1.4 GHz
•四个可选的输出频率
•第三代DSPLL®具有优越的抖动性能
•频率稳定性优于SAW-based振荡器
•内部固定晶频，可靠性高，老化低
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•行业标准的5 × 7mm封装和引脚
•无铅，符合RoHS标准
思佳讯电子晶振,534BB212M500DGR,6G光纤通道晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 212.5MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±20 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 98mA Max |
LVDS
|
| 对称性（占空比） | SYM | 45%~55% | 在输出交叉点 |
| 输出电压 | VOD | 0.9VPP Max |
LVDS
|
| VO | 1.275V Max | ||
| 输入电压 | VIH | 0.75XVDD Min |
|
| VIL | 0.5V Max | ||
| 上升下降时间 | tr/tf | 350ps Max |
LVDS
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 0.42ps Max |
Differential Formats
|
.jpg)
思佳讯电子晶振,534BB212M500DGR,6G光纤通道晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 |
| 535AC100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 535AB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 535FB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±20ppm |
| 535FB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 535AC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535BB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 535AC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535BC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±7ppm |
| 535BC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 535FB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±20ppm |
| 535FB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±20ppm |
| 535FB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±20ppm |
| 535FB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 535FB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±20ppm |
| 535FB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±7ppm |
| 535FC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±7ppm |
| 535FC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±7ppm |
| 535FC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±7ppm |
| 535FC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 535FC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 535BB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000335DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 3.3V | ±20ppm |
| 535BB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 535BB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 535BB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 535BB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±20ppm |
| 535BB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±20ppm |
| 535BC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±7ppm |
| 535BC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 535BC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 535BB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±20ppm |
| 535BB000335DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 3.3V | ±20ppm |
| 535BB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±20ppm |
| 535BB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 535BB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 535BB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±20ppm |
| 535BB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±20ppm |
| 535BC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 3.3V | ±7ppm |
| 535BC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 3.3V | ±7ppm |
| 535BC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 3.3V | ±7ppm |
| 535BC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 3.3V | ±7ppm |
| 535BC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 3.3V | ±7ppm |
| 535BC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±7ppm |
| 535FB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±20ppm |
| 535FB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±20ppm |
| 535FB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±20ppm |
| 535FB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±20ppm |
| 535FB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±20ppm |
| 535FB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±20ppm |
| 535FB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±20ppm |
| 535FC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVDS | 2.5V | ±7ppm |
| 535FC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVDS | 2.5V | ±7ppm |
| 535FC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVDS | 2.5V | ±7ppm |
| 535FC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±7ppm |
| 535FC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVDS | 2.5V | ±7ppm |
| 535FC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 2.5V | ±7ppm |
| 535FC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 2.5V | ±7ppm |
| 535AB000335DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 535BB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 535BB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 535EB100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535FB100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±20ppm |
| 535FB125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±20ppm |
| 535FB156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 2.5V | ±20ppm |
| 535AB000335DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 535EB100M000DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±20ppm |
| 535FB100M000DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±20ppm |
| 535AB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535AC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535EB000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EC000172DG | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000305DG | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC150M000DG | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC159M375DG | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535AB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 535EB125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535AB156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±20ppm |
| 535AB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535AC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±7ppm |
| 535EB000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±20ppm |
| 535EC000172DGR | Skyworks Solutions Inc. | Si535 | 166.6286 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC000305DGR | Skyworks Solutions Inc. | Si535 | 156.2578 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC150M000DGR | Skyworks Solutions Inc. | Si535 | 150 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC159M375DGR | Skyworks Solutions Inc. | Si535 | 159.375 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 2.5V | ±7ppm |
| 535AB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB312M500DGR | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 535AB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVPECL | 3.3V | ±20ppm |
| 535BB312M500DG | Skyworks Solutions Inc. | Si535 | 312.5 MHz | LVDS | 3.3V | ±20ppm |
| 534BC002614DG | Skyworks Solutions Inc. | Si534 | 74 MHz | LVDS | 3.3V | ±7ppm |
| 534BC002614DGR | Skyworks Solutions Inc. | Si534 | 74 MHz | LVDS | 3.3V | ±7ppm |
| 535AC000175DGR | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000335DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC155M520DGR | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±7ppm |
| 535BC100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 3.3V | ±7ppm |
| 535BC106M250DGR | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 535BC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 535BC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 535EC100M000DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535FC000292DGR | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000338DGR | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±7ppm |
| 535FC100M000DGR | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 535FC125M000DGR | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 535AC156M250DGR | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000175DG | Skyworks Solutions Inc. | Si535 | 167.3316 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC000335DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVPECL | 3.3V | ±7ppm |
| 535AC155M520DG | Skyworks Solutions Inc. | Si535 | 155.52 MHz | LVPECL | 3.3V | ±7ppm |
| 535BC106M250DG | Skyworks Solutions Inc. | Si535 | 106.25 MHz | LVDS | 3.3V | ±7ppm |
| 535BC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 3.3V | ±7ppm |
| 535BC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVDS | 3.3V | ±7ppm |
| 535EC100M000DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVPECL | 2.5V | ±7ppm |
| 535EC156M250DG | Skyworks Solutions Inc. | Si535 | 156.25 MHz | LVPECL | 2.5V | ±7ppm |
| 535FC000292DG | Skyworks Solutions Inc. | Si535 | 161.1328 MHz | LVDS | 2.5V | ±7ppm |
| 535FC000338DG | Skyworks Solutions Inc. | Si535 | 156.2539 MHz | LVDS | 2.5V | ±7ppm |
| 535FC100M000DG | Skyworks Solutions Inc. | Si535 | 100 MHz | LVDS | 2.5V | ±7ppm |
| 535FC125M000DG | Skyworks Solutions Inc. | Si535 | 125 MHz | LVDS | 2.5V | ±7ppm |
| 535BC212M500DGR | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±7ppm |
| 535BC212M500DG | Skyworks Solutions Inc. | Si535 | 212.5 MHz | LVDS | 3.3V | ±7ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://m.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
