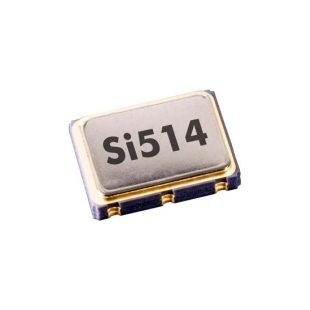

514BCA001826BAG,Skyworks晶振,6G无线模块晶振
- 频率：216.96MHz
- 尺寸：5.0×3.2mm
- 应 用： Skyworks晶振,Si514进口晶振,514BCA001826BAG晶振,5032mm晶振,六脚贴片晶振,LVDS差分晶振,有源晶振,石英晶体振荡器,6G无线模块晶振,全数字锁相环晶振,SONET/SDH/OTN晶振,数据通讯晶振.
-
-

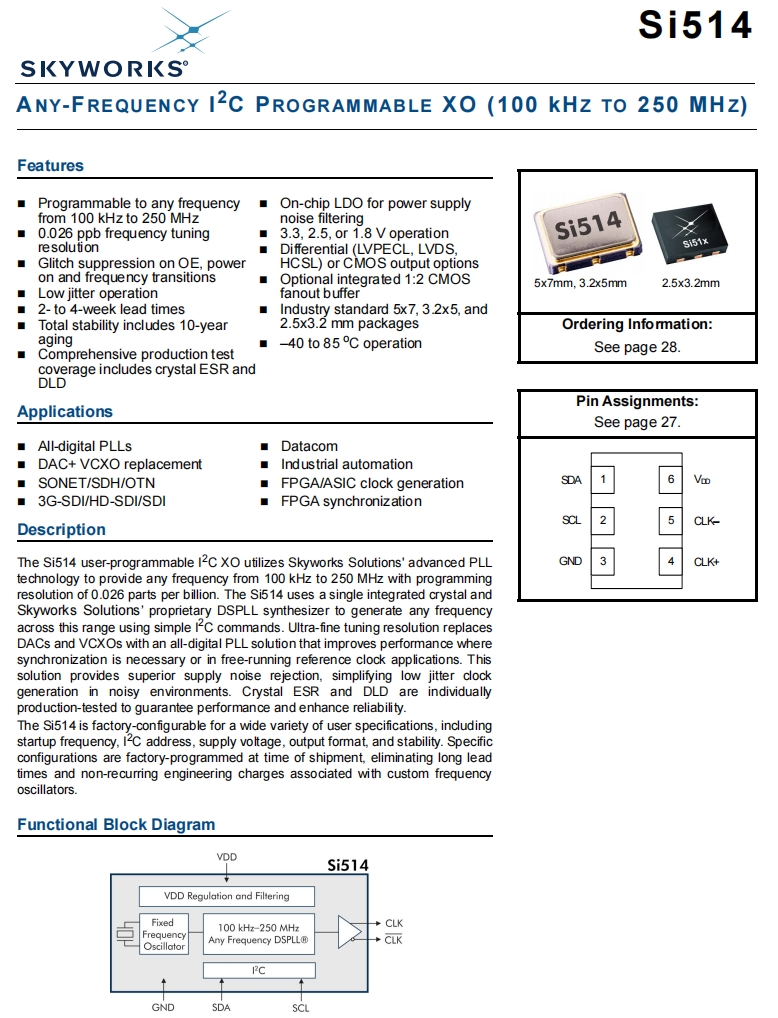

514BCA001826BAG,Skyworks晶振,6G无线模块晶振,Skyworks晶振,Si514用户可编程I2C XO采用Skyworks Solutions的高级PLL 通过编程提供100 kHz至250 MHz的任何频率的技术分辨率为十亿分之0.026.Si514使用单个集成晶体,并且 Skyworks Solutions的专有DSPLL频率合成器可产生任何频率在这个范围内使用简单的I2C命令,LVDS差分晶振,有源晶振,石英晶体振荡器,6G无线模块晶振,全数字锁相环晶振,SONET/SDH/OTN晶振,数据通讯晶振.
514BCA001826BAG,Skyworks晶振,6G无线模块晶振特点：
•可编程到从100 kHz到250 MHz的任何频率
•0.026 PPB频率调谐分辨率
•对OE、上电、频率转换等故障进行抑制
•低抖动操作
•2- 4周的交货期
•总稳定性包括10年老化
•综合生产测试覆盖范围包括晶体ESR和 DLD
•用于电源噪声滤波的片上LDO
•3.3、2.5或1.8 V操作
•差分(LVPECL, LVDS，HCSL)或CMOS输出选项
•可选集成1:2 CMOS扇出缓冲器
•行业标准5x7，3.2x5，2.5x3.2 mm封装
•工作温度-40至85℃
514BCA001826BAG,Skyworks晶振,6G无线模块晶振规格表
| 项目 | 符号 | 规格说明 | 条件 |
| 额定频率 | f_nom | 216.96MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | Vcc | 3.3V | |
| 储存温度 | T_stg | -55℃~+125℃ | 裸存 |
| 工作温度 | T_use | -40℃~ +85℃ | |
| 频率稳定性 | f_tol | ±20 ppm | +25℃,超出标准的规格说明请联系我们 |
| 电源电流 | IDD | 23mA Max |
LVDS
|
| 对称性（占空比） | SYM | 45%~55% | 在输出交叉点 |
| 输出电压 | VOC | 1.33V Max |
LVDS
|
| VO | 0.45Vpp Max | ||
| 输入电压 | VIH | 80%VDD Min |
|
| VIL | 20%VDD Max | ||
| 上升下降时间 | tr/tf | 800ps Max |
LVDS
|
| 起始时间 | t str | 10ms Max | |
| 相位抖动 | tpj | 0.5ps Max |
Differential Formats
|
.jpg)

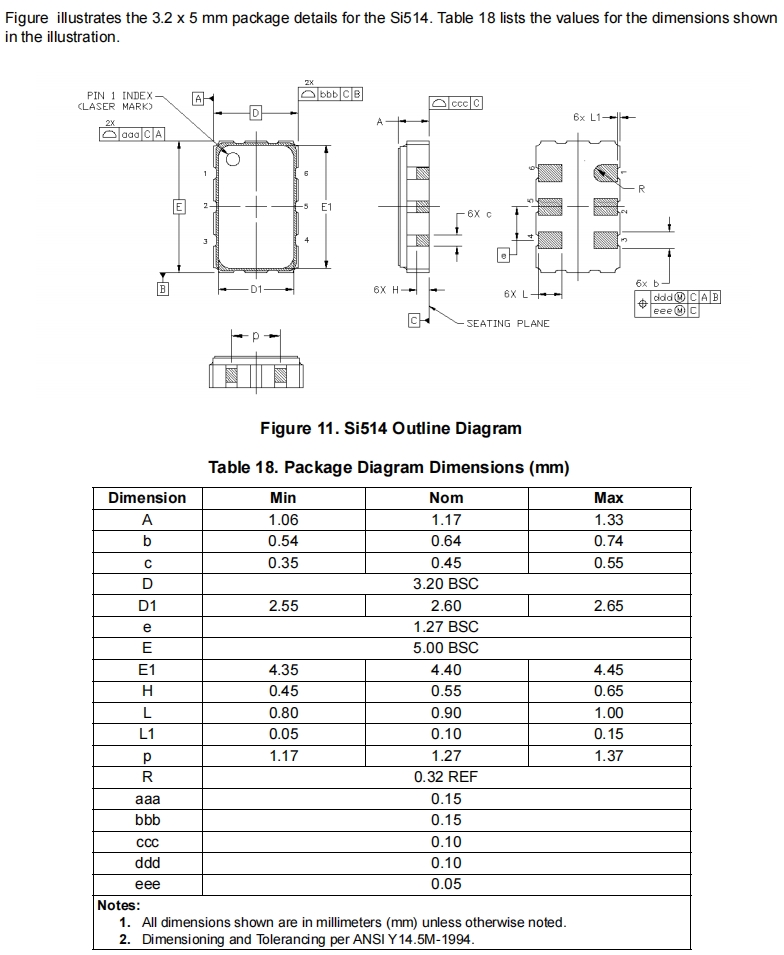

514BCA001826BAG,Skyworks晶振,6G无线模块晶振尺寸图

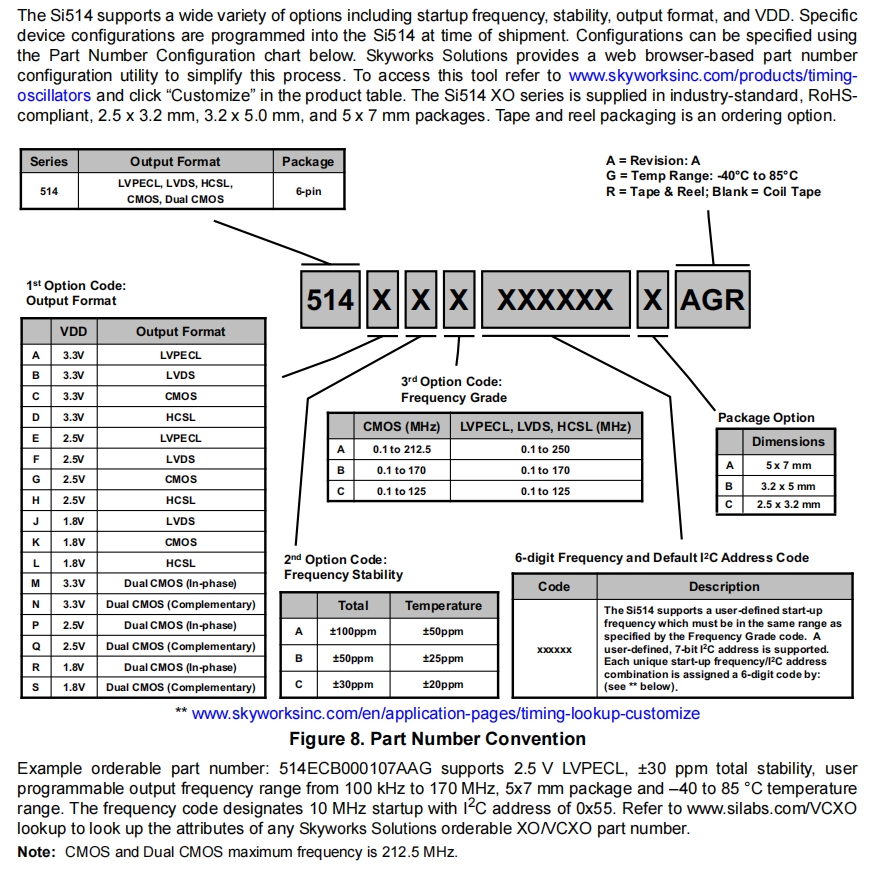

| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 |
| 514BBC000932BAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514FAA000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±50ppm |
| 514BBC000932AAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BCA001826BAG | Skyworks Solutions Inc. | Si514 | 216.96 MHz | LVDS | 3.3V | ±20ppm |
| 514JAA000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514BBA001207AAG | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±25ppm |
| 514BCA000112AAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514ACC000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCC001696BAGR | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC001696BAGR | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000163BAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±50ppm |
| 514ACC000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCC001696BAG | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC001696BAG | Skyworks Solutions Inc. | Si514 | 84 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000163BAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±50ppm |
| 514ABB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB001662BAGR | Skyworks Solutions Inc. | Si514 | 148.35164 MHz | LVDS | 3.3V | ±25ppm |
| 514ABB000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB001662BAG | Skyworks Solutions Inc. | Si514 | 148.35164 MHz | LVDS | 3.3V | ±25ppm |
| 514ABA000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000110BAGR | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000126BAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 2.5V | ±25ppm |
| 514ACA001763BAGR | Skyworks Solutions Inc. | Si514 | 9.8304 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCA001204BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000126BAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536BAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001690BAGR | Skyworks Solutions Inc. | Si514 | 161.1328 MHz | LVDS | 1.8V | ±20ppm |
| 514BAC000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001794BAGR | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002153BAGR | Skyworks Solutions Inc. | Si514 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001992CAGR | Skyworks Solutions Inc. | Si514 | 12.8 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000144BAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000348CAGR | Skyworks Solutions Inc. | Si514 | 16.384 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002231BAGR | Skyworks Solutions Inc. | Si514 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 514BBC000163AAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001605AAGR | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000932BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001794BAGR | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±25ppm |
| 514EBC000157BAGR | Skyworks Solutions Inc. | Si514 | 50 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBC000215BAGR | Skyworks Solutions Inc. | Si514 | 27 MHz | LVDS | 2.5V | ±25ppm |
| 514BBC000932CAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514BCB000106AAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001535AAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 3.3V | ±20ppm |
| 514ABA000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000110BAG | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000126BAG | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 2.5V | ±25ppm |
| 514BCC001698AAGR | Skyworks Solutions Inc. | Si514 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC000790AAGR | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCC001536AAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514BBC000163AAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001605AAG | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±25ppm |
| 514BAA000950AAGR | Skyworks Solutions Inc. | Si514 | 88 MHz | LVDS | 3.3V | ±50ppm |
| 514EAA001009AAGR | Skyworks Solutions Inc. | Si514 | 8 MHz | LVPECL | 2.5V | ±50ppm |
| 514BAC000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001794BAG | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000144BAG | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002153BAG | Skyworks Solutions Inc. | Si514 | 40.96 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC001992CAG | Skyworks Solutions Inc. | Si514 | 12.8 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC002231BAG | Skyworks Solutions Inc. | Si514 | 64 MHz | LVDS | 3.3V | ±50ppm |
| 514BAC000348CAG | Skyworks Solutions Inc. | Si514 | 16.384 MHz | LVDS | 3.3V | ±50ppm |
| 514AAB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 514ACC000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 514BAB001049BAGR | Skyworks Solutions Inc. | Si514 | 148.426 MHz | LVDS | 3.3V | ±50ppm |
| 514BCC000107BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000144BAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000163BAGR | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000932BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC001289BAGR | Skyworks Solutions Inc. | Si514 | 114.544 MHz | LVDS | 3.3V | ±20ppm |
| 514DCC000798BAGR | Skyworks Solutions Inc. | Si514 | 1 MHz | HCSL | 3.3V | ±20ppm |
| 514JAB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514JAB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±50ppm |
| 514ACA001763BAG | Skyworks Solutions Inc. | Si514 | 9.8304 MHz | LVPECL | 3.3V | ±20ppm |
| 514BCA001204BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000126BAG | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536BAG | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001690BAG | Skyworks Solutions Inc. | Si514 | 161.1328 MHz | LVDS | 1.8V | ±20ppm |
| 514BAB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 514JAB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±50ppm |
| 514JCC002362BAGR | Skyworks Solutions Inc. | Si514 | 94 MHz | LVDS | 1.8V | ±20ppm |
| 514FCC000111CAGR | Skyworks Solutions Inc. | Si514 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 514ACC000773CAGR | Skyworks Solutions Inc. | Si514 | 98.304 MHz | LVPECL | 3.3V | ±20ppm |
| 514JAB000115BAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 1.8V | ±50ppm |
| 514AAB000118CAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514BCA000383BAG | Skyworks Solutions Inc. | Si514 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 514BCA000383BAGR | Skyworks Solutions Inc. | Si514 | 150 MHz | LVDS | 3.3V | ±20ppm |
| 514FBB001663BAG | Skyworks Solutions Inc. | Si514 | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| 514FBB001663BAGR | Skyworks Solutions Inc. | Si514 | 148.351648 MHz | LVDS | 2.5V | ±25ppm |
| 514JCA001703AAG | Skyworks Solutions Inc. | Si514 | 148.35165 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001703AAGR | Skyworks Solutions Inc. | Si514 | 148.35165 MHz | LVDS | 1.8V | ±20ppm |
| 514ABA000144AAGR | Skyworks Solutions Inc. | Si514 | 80 MHz | LVPECL | 3.3V | ±25ppm |
| 514ABA001695AAGR | Skyworks Solutions Inc. | Si514 | 125 kHz | LVPECL | 3.3V | ±25ppm |
| 514ABA001741AAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBA000159AAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514FBA000112AAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 2.5V | ±25ppm |
| 514FBA000950AAGR | Skyworks Solutions Inc. | Si514 | 88 MHz | LVDS | 2.5V | ±25ppm |
| 514JBA000121AAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±25ppm |
| 514JBA000159AAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514BCC001698AAG | Skyworks Solutions Inc. | Si514 | 90 MHz | LVDS | 3.3V | ±20ppm |
| 514JCC000790AAG | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCC001536AAG | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514ABB000136BAGR | Skyworks Solutions Inc. | Si514 | 160 MHz | LVPECL | 3.3V | ±25ppm |
| 514BBB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000744BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB001011BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±25ppm |
| 514EBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 2.5V | ±25ppm |
| 514FBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 2.5V | ±25ppm |
| 514JBB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000159BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000482BAGR | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB000586BAGR | Skyworks Solutions Inc. | Si514 | 155.52 MHz | LVDS | 1.8V | ±25ppm |
| 514JBB001011BAGR | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 1.8V | ±25ppm |
| 514BBB002312CAGR | Skyworks Solutions Inc. | Si514 | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| 514FBB000115CAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 514BBB000115CAGR | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB002216BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±25ppm |
| 514BBC001794BAG | Skyworks Solutions Inc. | Si514 | 40 MHz | LVDS | 3.3V | ±25ppm |
| 514EBC000157BAG | Skyworks Solutions Inc. | Si514 | 50 MHz | LVPECL | 2.5V | ±25ppm |
| 514FBC000215BAG | Skyworks Solutions Inc. | Si514 | 27 MHz | LVDS | 2.5V | ±25ppm |
| 514BBC000932CAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±25ppm |
| 514AAB000159BAG | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVPECL | 3.3V | ±50ppm |
| 514ACC000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVPECL | 3.3V | ±20ppm |
| 514BAB001049BAG | Skyworks Solutions Inc. | Si514 | 148.426 MHz | LVDS | 3.3V | ±50ppm |
| 514BCC000107BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000144BAG | Skyworks Solutions Inc. | Si514 | 80 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000163BAG | Skyworks Solutions Inc. | Si514 | 20 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC000932BAG | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCC001289BAG | Skyworks Solutions Inc. | Si514 | 114.544 MHz | LVDS | 3.3V | ±20ppm |
| 514DCC000798BAG | Skyworks Solutions Inc. | Si514 | 1 MHz | HCSL | 3.3V | ±20ppm |
| 514JAB000112BAG | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 1.8V | ±50ppm |
| 514JAB000482BAG | Skyworks Solutions Inc. | Si514 | 148.35 MHz | LVDS | 1.8V | ±50ppm |
| 514BAB000159BAG | Skyworks Solutions Inc. | Si514 | 148.5 MHz | LVDS | 3.3V | ±50ppm |
| 514JCC002362BAG | Skyworks Solutions Inc. | Si514 | 94 MHz | LVDS | 1.8V | ±20ppm |
| 514JAB000115BAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 1.8V | ±50ppm |
| 514ACC000773CAG | Skyworks Solutions Inc. | Si514 | 98.304 MHz | LVPECL | 3.3V | ±20ppm |
| 514JAB000121BAG | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 1.8V | ±50ppm |
| 514FCC000111CAG | Skyworks Solutions Inc. | Si514 | 25 MHz | LVDS | 2.5V | ±20ppm |
| 514AAB000118CAG | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514BCA000126AAGR | Skyworks Solutions Inc. | Si514 | 200 MHz | LVDS | 3.3V | ±20ppm |
| 514JCA000790AAGR | Skyworks Solutions Inc. | Si514 | 32 MHz | LVDS | 1.8V | ±20ppm |
| 514JCA001536AAGR | Skyworks Solutions Inc. | Si514 | 85 MHz | LVDS | 1.8V | ±20ppm |
| 514BBB002312CAG | Skyworks Solutions Inc. | Si514 | 148.425824 MHz | LVDS | 3.3V | ±25ppm |
| 514BBB000115CAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 3.3V | ±25ppm |
| 514FBB000115CAG | Skyworks Solutions Inc. | Si514 | 125 MHz | LVDS | 2.5V | ±25ppm |
| 514BBB002216BAG | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±25ppm |
| 514AAA000110BAGR | Skyworks Solutions Inc. | Si514 | 74.25 MHz | LVPECL | 3.3V | ±50ppm |
| 514AAA000776BAGR | Skyworks Solutions Inc. | Si514 | 100 kHz | LVPECL | 3.3V | ±50ppm |
| 514BAA000643BAGR | Skyworks Solutions Inc. | Si514 | 212.5 MHz | LVDS | 3.3V | ±50ppm |
| 514BCB000112BAGR | Skyworks Solutions Inc. | Si514 | 10 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB000118BAGR | Skyworks Solutions Inc. | Si514 | 156.25 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB000121BAGR | Skyworks Solutions Inc. | Si514 | 100 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001605BAGR | Skyworks Solutions Inc. | Si514 | 93.2 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001741BAGR | Skyworks Solutions Inc. | Si514 | 70.656 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001853BAGR | Skyworks Solutions Inc. | Si514 | 55 MHz | LVDS | 3.3V | ±20ppm |
| 514BCB001855BAGR | Skyworks Solutions Inc. | Si514 | 235.4 kHz | LVDS | 3.3V | ±20ppm |
| 514BCB001856BAGR | Skyworks Solutions Inc. | Si514 | 23.54 MHz | LVDS | 3.3V | ±20ppm |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://m.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
