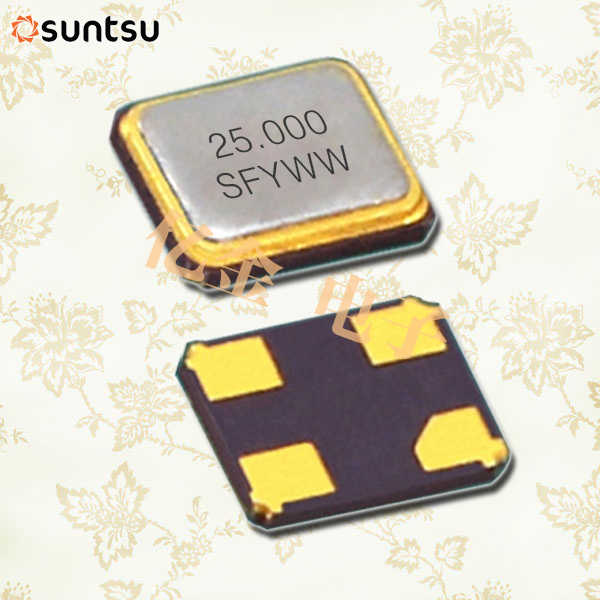

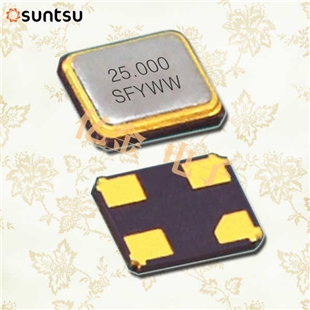

SXT32410AA07-14.7456M,3225,10PF,50PPM,14.7456MHz,SUNTSU
- 频率：14.7456MHz
- 尺寸：3225
- 应 用： SXT22410AA07-16.000M252010PF16MHz50PPMSUNSTU，石英贴片晶振，10ppm/10ppm（公差/稳定性），可用的超微型包装切割，基本磁带和卷轴，蓝牙，无线局域网，高密度应用程序。PCMCIA卡，无线应用，计算机和调制解调器。S...
-
-

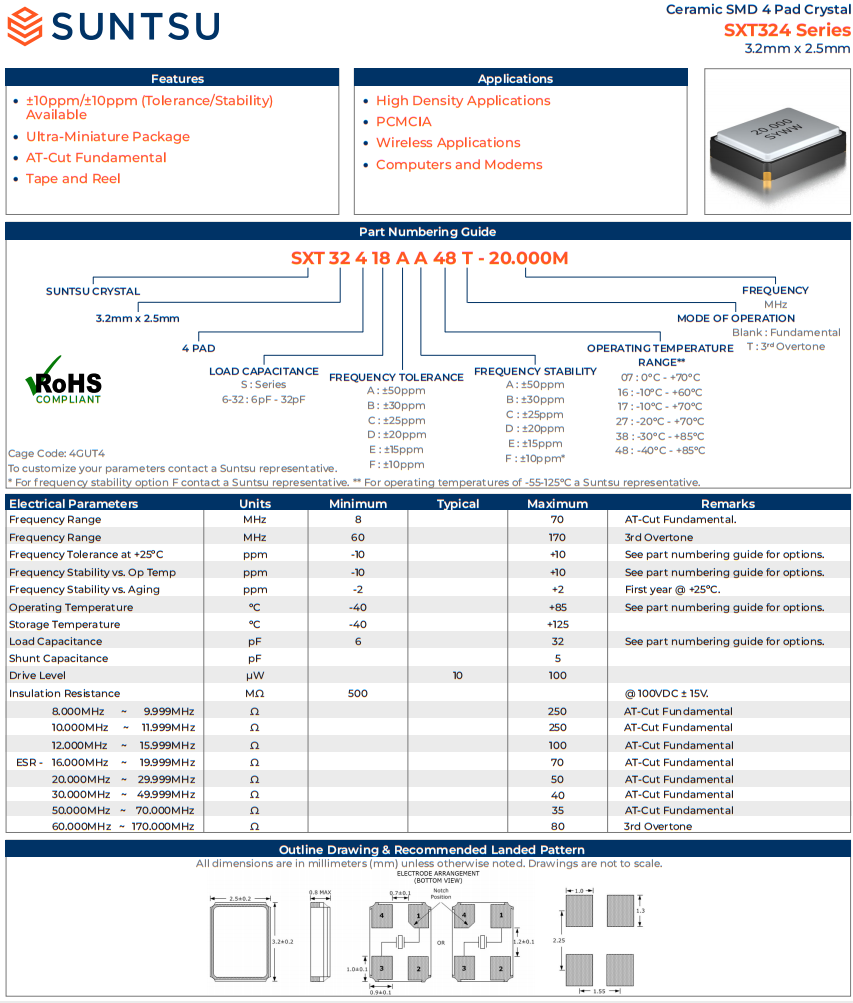

.jpg)
SXT32410AA07-14.7456M,3225,10PF,50PPM,14.7456MHz,SUNTSU，石英贴片晶振，±10ppm/±10ppm（公差/稳定性），可用的超微型包装切割，基本磁带和卷轴，蓝牙，无线局域网，高密度应用程序。PCMCIA卡，无线应用，计算机和调制解调器。
SXT32410AA07-14.7456M,3225,10PF,50PPM,14.7456MHz,SUNTSU
| 电气参数 | 单位 | 最小值 | 典型的 | 最大值 | 注意 |
| 频率范围 | MHz | 8 | 70 | AT-Cut Fundamental. | |
| 频率范围 | MHz | 60 | 170 | 3rd Overtone | |
| 频率公差 at +25ºC | ppm | --10 | +10 | See part numbering guide for options. | |
| 工作温度下的频率稳定度 | ppm | --10 | +10 | See part numbering guide for options. | |
| 老化 | ppm | --2 | +2 | First year @ +25ºC. | |
| 工作温度 | °C | --40 | +85 | See part numbering guide for options. | |
| 储存温度 | °C | --40 | +95 | ||
| 负载电容 | pF | 6 | 32 | See part numbering guide for options. | |
| 并联电容 | pF | 3 | |||
| 驱动电平 | µW | 10 | 100 | ||
| 绝缘电阻 | M? | 500 | @ 100VDC ± 15V. |

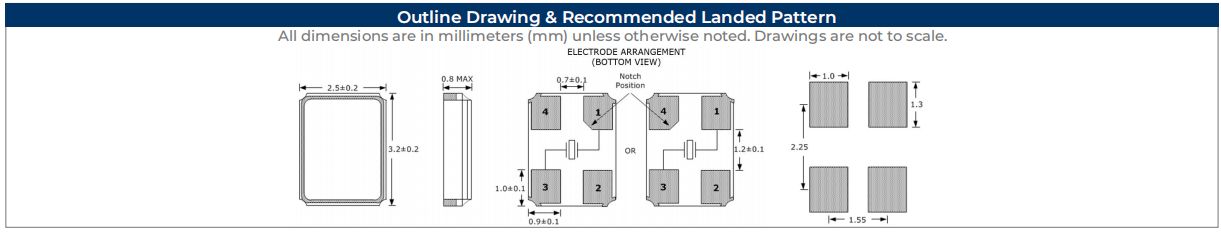

.jpg)
SXT32410AA07-14.7456M,3225,10PF,50PPM,14.7456MHz,SUNTSU
| SUNTSU原厂编码 | 封装尺寸 | 负载电荷 | 频率偏差度 | 频率 |
| SXT32410AA07-11.0592M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 11.0592M |
| SXT32410AA07-12.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT32410AA07-12.288M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT32410AA07-13.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT32410AA07-13.560M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT32410AA07-14.31818M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT32410AA07-14.7456M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT32410AA07-16.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT32410AA07-16.384M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT32410AA07-18.432M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT32410AA07-19.200M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT32410AA07-19.6608M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.6608M |
| SXT32410AA07-20.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT32410AA07-22.1184M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT32410AA07-24.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT32410AA07-24.576M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT32410AA07-25.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT32410AA07-26.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT32410AA07-27.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT32410AA07-27.120M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT32410AA07-28.63636M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 28.63636M |
| SXT32410AA07-29.4912M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 29.4912M |
| SXT32410AA07-30.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT32410AA07-32.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
| SXT32410AA07-36.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 36.000M |
| SXT32410AA07-37.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 37.400M |
| SXT32410AA07-38.400M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 38.400M |
| SXT32410AA07-40.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 40.000M |
| SXT32410AA07-44.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 44.000M |
| SXT32410AA07-48.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 48.000M |
| SXT32410AA07-50.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 50.000M |
| SXT32410AA07-52.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 52.000M |
| SXT32410AA16-11.0592M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 11.0592M |
| SXT32410AA16-12.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.000M |
| SXT32410AA16-12.288M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 12.288M |
| SXT32410AA16-13.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.000M |
| SXT32410AA16-13.560M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 13.560M |
| SXT32410AA16-14.31818M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.31818M |
| SXT32410AA16-14.7456M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 14.7456M |
| SXT32410AA16-16.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.000M |
| SXT32410AA16-16.384M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 16.384M |
| SXT32410AA16-18.432M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 18.432M |
| SXT32410AA16-19.200M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.200M |
| SXT32410AA16-19.6608M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 19.6608M |
| SXT32410AA16-20.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 20.000M |
| SXT32410AA16-22.1184M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 22.1184M |
| SXT32410AA16-24.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.000M |
| SXT32410AA16-24.576M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 24.576M |
| SXT32410AA16-25.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 25.000M |
| SXT32410AA16-26.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 26.000M |
| SXT32410AA16-27.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.000M |
| SXT32410AA16-27.120M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 27.120M |
| SXT32410AA16-28.63636M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 28.63636M |
| SXT32410AA16-29.4912M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 29.4912M |
| SXT32410AA16-30.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 30.000M |
| SXT32410AA16-32.000M | 3.2X2.5 SMD (4 PAD) CRYSTAL | 10pF | ±50ppm | 32.000M |
