首頁歐美晶振拉隆晶振Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太網晶振

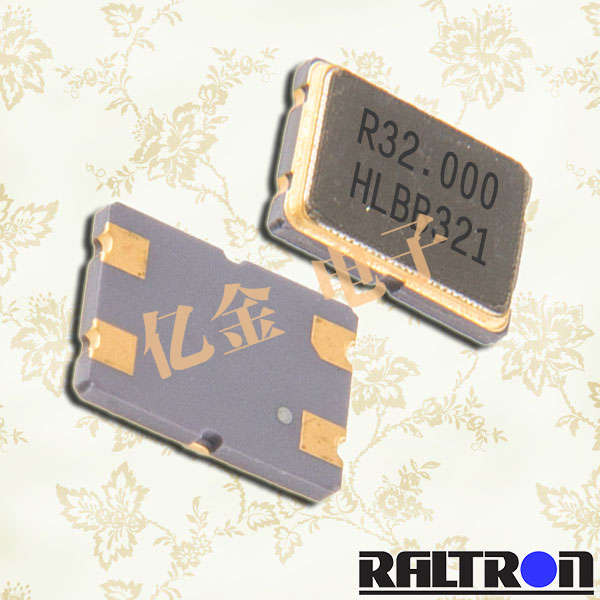

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太網晶振

頻率：19.2MHz
尺寸：7.0×5.0mm
應　用： 美國拉隆晶振,進口無源晶振,H13SMD晶振,H13-19.200-16-5050-EXT-TR晶振,7050mm晶振,頻率19.2MHz,負載16pF,頻率穩定性50ppm,工作溫度-40~85°C,高穩定性晶振,無鉛環保晶振,6G以太網晶振,藍牙模塊晶振,智能手機晶振,平板...

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太網晶振,美國拉隆晶振,進口無源晶振,H13SMD晶振,H13-19.200-16-5050-EXT-TR晶振,7050mm晶振,頻率19.2MHz,負載16pF,頻率穩定性50ppm,工作溫度-40~85°C,高穩定性晶振,無鉛環保晶振,6G以太網晶振,藍牙模塊晶振,智能手機晶振,平板電腦晶振.
Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太網晶振特點：
•低調

•嚴格的公差和穩定性到±10ppm

•寬頻率范圍

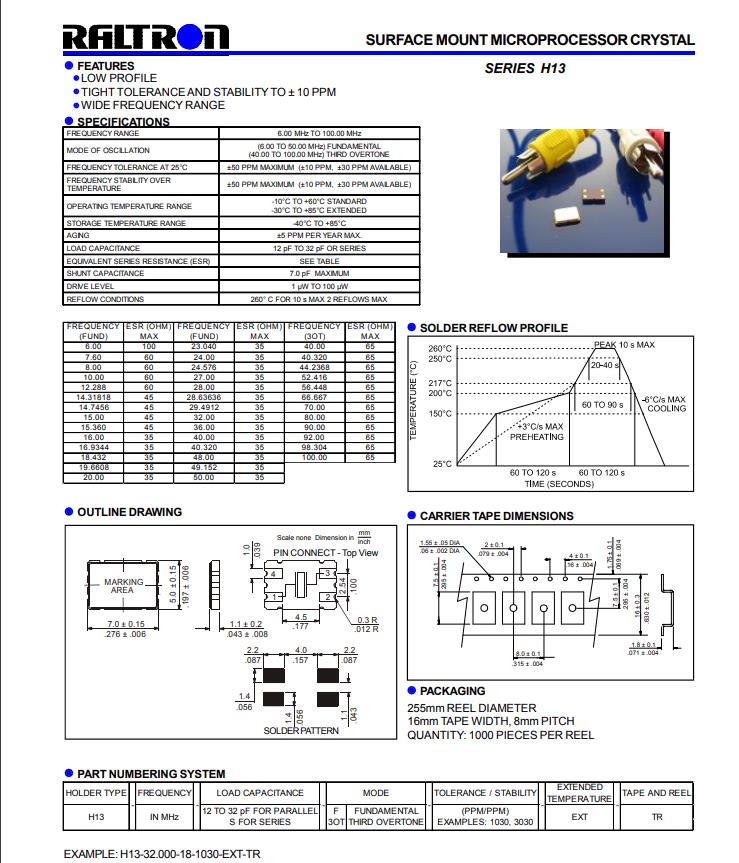

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太網晶振規格表

參數	數值
標準頻率	19.2MHz
頻率容差	50ppm
頻率穩定性	30ppm
工作溫度	−40~+85°C
儲存溫度	−40~+85°C
老化	±5ppm
負載	16pF
并聯電容	7pF Max
激勵功率	1 µW TO 100 µW
等效串聯電阻	35 OHMS MAX
等效串聯電阻	35 OHMS MAX
回流焊條件	260° C FOR 10 s MAX 2 REFLOWS MAX

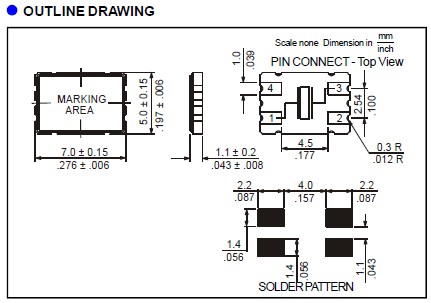

Raltron晶振,H13-19.200-16-5050-EXT-TR,6G以太網晶振尺寸圖

Raltron原廠編碼	型號	頻率	尺寸	頻率偏差	頻率穩定度	負載	工作溫度
H13-10.000-16-5050-EXT-TR	H13	10.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-13.000-16-5050-EXT-TR	H13	13.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-16.000-16-5050-EXT-TR	H13	16.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-19.200-16-5050-EXT-TR	H13	19.200MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-20.000-16-5050-EXT-TR	H13	20.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-21.000-16-5050-EXT-TR	H13	21.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-22.000-16-5050-EXT-TR	H13	22.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-23.000-16-5050-EXT-TR	H13	23.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-24.000-16-5050-EXT-TR	H13	24.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-25.000-16-5050-EXT-TR	H13	25.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-26.000-16-5050-EXT-TR	H13	26.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-27.000-16-5050-EXT-TR	H13	27.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-28.000-16-5050-EXT-TR	H13	28.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-29.000-16-5050-EXT-TR	H13	29.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-30.000-16-5050-EXT-TR	H13	30.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-31.000-16-5050-EXT-TR	H13	31.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-32.000-16-5050-EXT-TR	H13	32.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-33.000-16-5050-EXT-TR	H13	33.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-34.000-16-5050-EXT-TR	H13	34.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-35.000-16-5050-EXT-TR	H13	35.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-36.000-16-5050-EXT-TR	H13	36.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-37.000-16-5050-EXT-TR	H13	37.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-38.000-16-5050-EXT-TR	H13	38.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-39.000-16-5050-EXT-TR	H13	39.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-40.000-16-5050-EXT-TR	H13	40.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
H13-41.000-16-5050-EXT-TR	H13	41.000MHz	7.0 x 5.0mm	± 50 ppm	± 50 ppm	16 pF	-40°C~+85°C
