首页进口晶振百利通亚陶晶振DIODES-FY1020003-10.24M-20PF-30PPM-5032

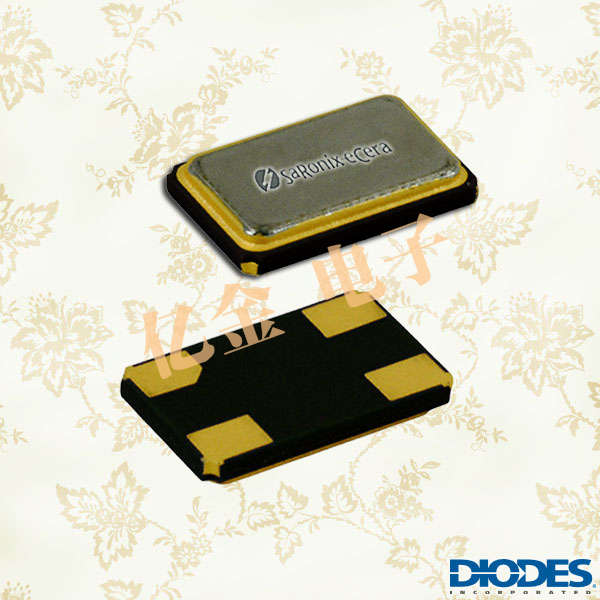

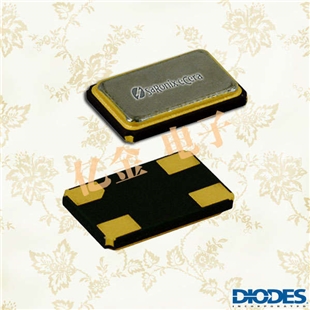

DIODES-FY1020003-10.24M-20PF-30PPM-5032

频率：10.24MHz
尺寸：5032mm
应　用： DIODES-FY1020003-10.24M-20PF-30PPM-5032，台湾Diodes晶振，坚固的AT-cut晶体结构微型5.0x3.2mm陶瓷包装，可卷带12mm胶带，1000个单位FY：无铅和RoHS/绿色兼容F9：RoHS兼容*（*根据#5，指令2002/05/EC附件），2垫F9系...

DIODES-FY1020003-10.24M-20PF-30PPM-5032，台湾Diodes晶振，坚固的AT-cut晶体结构微型5.0 x 3.2mm陶瓷包装，可卷带12mm胶带，1000个单位FY：无铅和RoHS/绿色兼容F9： RoHS兼容*（*根据#5，指令2002/05/EC附件），2垫F9系列玻璃密封和4垫FY系列接缝密封装置采用标准的5.0 x 3.2mm封装封装。这些协议用于PCB应用中的表面安装，PCMCIA卡，便携式/手持式个人电脑，笔记本电脑，无线局域网，便携式多媒体设备，GPS，硬盘，蓝牙，USB适配器

DIODES-FY1020003-10.24M-20PF-30PPM-5032

Parameters

Minimum

Typical

Maximum

Units

频率

8.000

50.000

MHz

操作模式

Fundamental

工作温度

- 10

+50

ºC

储存温度

--40

+85

ºC

频率容差 @+25°C

--50

+50

ppm

工作温度下的频率稳定性 ( ref. to +25°C)

--50

+50

ppm

并联电容 (C0)

负载电容 (CL)

8 to 32

驱动电平

100

µW

老化

--5

ppm

DIODES-FY1020003-10.24M-20PF-30PPM-5032

DIODES原厂编码	生产厂家	型号	频率	频率稳定度	频率偏差	负载电容	工作温度
FY2500117	Diodes晶振	FY	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FY2500117	Diodes晶振	FY	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FY2500117	Diodes晶振	FY	25MHz	±20ppm	±20ppm	18pF	-40°C ~ 85°C
FY0800018	Diodes晶振	FY	8MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FY0800018	Diodes晶振	FY	8MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FY0800018	Diodes晶振	FY	8MHz	±30ppm	±30ppm	18pF	-40°C ~ 85°C
FY1000009	Diodes晶振	FY	10MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
FY1000009	Diodes晶振	FY	10MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
FY1000009	Diodes晶振	FY	10MHz	±30ppm	±30ppm	20pF	-40°C ~ 85°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
F90800018Q	Diodes晶振	F9	8MHz	±50ppm	±50ppm	8pF	-40°C ~ 125°C
FY2400053	Diodes晶振	FY	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2400053	Diodes晶振	FY	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2400053	Diodes晶振	FY	24MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2500016	Diodes晶振	FY	25MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FY2500016	Diodes晶振	FY	25MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
FY2500016	Diodes晶振	FY	25MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92400054	Diodes晶振	F9	24MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
F92500042	Diodes晶振	F9	25MHz	±50ppm	±20ppm	18pF	-20°C ~ 70°C
FY2500068	Diodes晶振	FY	25MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
FY2500068	Diodes晶振	FY	25MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
FY2500068	Diodes晶振	FY	25MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
FY2500115	Diodes晶振	FY	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2500115	Diodes晶振	FY	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
FY2500115	Diodes晶振	FY	25MHz	±10ppm	±10ppm	8pF	-20°C ~ 70°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F90800021	Diodes晶振	F9	8MHz	±30ppm	±20ppm	18pF	-40°C ~ 85°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
F91200084	Diodes晶振	F9	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY1000020	Diodes晶振	FY	10MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
FY1000020	Diodes晶振	FY	10MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
FY1000020	Diodes晶振	FY	10MHz	±10ppm	±10ppm	10pF	-20°C ~ 70°C
FY1200011	Diodes晶振	FY	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY1200011	Diodes晶振	FY	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY1200011	Diodes晶振	FY	12MHz	±30ppm	±20ppm	18pF	-20°C ~ 70°C
FY0800027	Diodes晶振	FY	8MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FY0800027	Diodes晶振	FY	8MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
FY0800027	Diodes晶振	FY	8MHz	±20ppm	±20ppm	18pF	-20°C ~ 70°C
