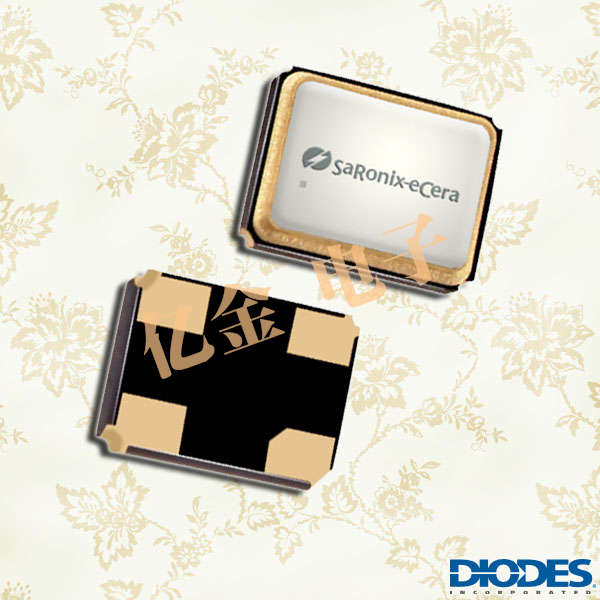

FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES
- 频率：40MHz
- 尺寸：2016
- 应 用： FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES，台湾百利通亚陶晶振，产品特点是，坚固的at切割晶体结构，微型2.0x1.6毫米陶瓷封装，可在胶带和卷轴；8毫米胶带，3000单位每卷，无铅和RoHS/绿色兼容，产品描述，...
-
-
.jpg)

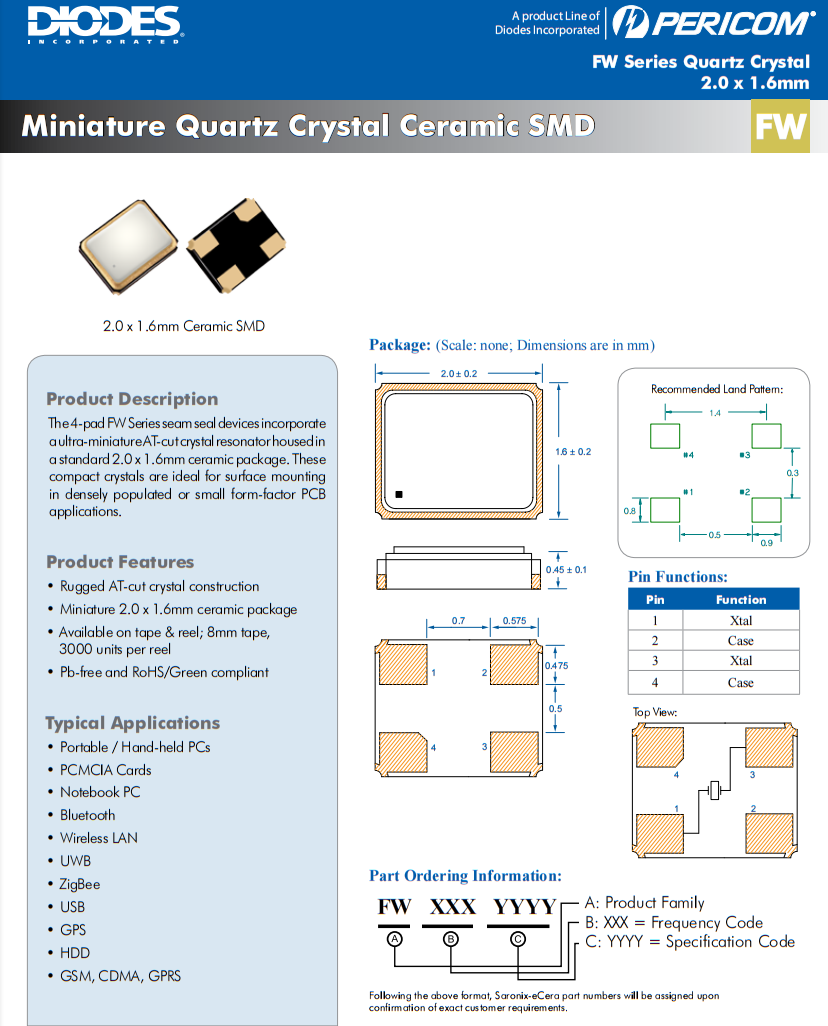

FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES，台湾百利通亚陶晶振，产品特点是，坚固的at切割晶体结构，微型2.0x1.6毫米陶瓷封装，可在胶带和卷轴；8毫米胶带，3000单位每卷，无铅和RoHS/绿色兼容，产品描述，4垫FW系列，接缝密封装置，包括一个超微型at切割晶体谐振器，封装在一个标准的2.0x1.6毫米陶瓷封装。这些紧凑的晶体，是理想的表面安装在密集的人口或小尺寸的PCB应用。典型应用，智能手机，便携式/手持式电脑，PCMCIA卡，笔记本，电脑，蓝牙，无线局域网，SIPRF-SIM笔，驱动器，SD?？?。
FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES
| 型号 | FW |
| 频率范围 | 20.000~66.000MHZ |
| 振动方式 | Fundamental |
| 电容 | 9pFtoSeries |
| 精确度 | 15ppm,50ppm(At25) |
| 电阻 | 100max.80max.50max.70max. |
| 精度 | 20ppm,50ppm(Referto25) |
| 工作温度 | -20℃~+70℃,-30℃~+85℃ |
| 存储温度 | -55℃~+125℃ |
| 分路电容 | 12.5pFmax. |
| 包装 | 3000pcs/reel |
.jpg)
FW400WFMR1-40MHz-10PF-10PPM-2016--20~85℃-DIODES
| Diodes零件编号 | 制造商 | 系列 | 频率 | 频率稳定性 | 频率容差 | 负载电容 |
| FW520WFMT1 | Diodes晶振 | FW | 52 MHz | ±17ppm | ±7ppm | 12pF |
| FW2500025Z | Diodes晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 20pF |
| FW2400063Q | Diodes晶振 | FW | 24 MHz | ±50ppm | ±15ppm | 18pF |
| FW4000044Q | Diodes晶振 | FW | 40 MHz | ±50ppm | ±10ppm | 8pF |
| FW2500039Q | Diodes晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FW4000025Q | Diodes晶振 | FW | 40 MHz | ±50ppm | ±10ppm | 10pF |
| FW1600010 | Diodes晶振 | FW | 16 MHz | ±20ppm | ±10ppm | 8pF |
| FW4000015Q | Diodes晶振 | FW | 40 MHz | ±15ppm | ±10ppm | 8pF |
| FW400WFMT1 | Diodes晶振 | FW | 40 MHz | ±17ppm | ±7ppm | 12pF |
| FW384WFIN1 | Diodes晶振 | FW | 38.4 MHz | ±12ppm | ±10ppm | 7pF |
| FW260WFMR1 | Diodes晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 9pF |
| FW374WFBR2 | Diodes晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 16pF |
| FW2700019Z | Diodes晶振 | FW | 27 MHz | ±30ppm | ±30ppm | 20pF |
| FW4000001 | Diodes晶振 | FW | 40 MHz | ±15ppm | ±10ppm | 18pF |
| FW4800010Z | Diodes晶振 | FW | 48 MHz | ±20ppm | ±10ppm | 10pF |
| FW2600055Q | Diodes晶振 | FW | 26 MHz | ±30ppm | ±10ppm | 10pF |
| FW1920009Q | Diodes晶振 | FW | 19.2 MHz | ±50ppm | ±30ppm | 10pF |
| FW1600029Q | Diodes晶振 | FW | 16 MHz | ±60ppm | ±10ppm | 8pF |
| FW2000016Q | Diodes晶振 | FW | 20 MHz | ±50ppm | ±15ppm | 10pF |
| FW6000006Q | Diodes晶振 | FW | 60 MHz | ±20ppm | ±20ppm | 8pF |
| FW400WFQA1 | Diodes晶振 | FW | 40 MHz | ±10ppm | ±10ppm | 7pF |
| FW2400001 | Diodes晶振 | FW | 24 MHz | ±50ppm | ±50ppm | 20pF |
| FW3840001 | Diodes晶振 | FW | 38.4 MHz | ±10ppm | ±10ppm | 9pF |
| FW374WFBR1 | Diodes晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 12pF |
| FW3740001Z | Diodes晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 18pF |
| FW400WFMR1 | Diodes晶振 | FW | 40 MHz | ±10ppm | ±10ppm | 10pF |
| FW2500022Q | Diodes晶振 | FW | 25 MHz | ±25ppm | ±15ppm | 20pF |
| FW5000008Q | Diodes晶振 | FW | 50 MHz | ±15ppm | ±10ppm | 10pF |
| FW374WFMR1 | Diodes晶振 | FW | 37.4 MHz | ±10ppm | ±10ppm | 8pF |
| FW260WFMT1 | Diodes晶振 | FW | 26 MHz | ±17ppm | ±7ppm | 12pF |
| FW2000008 | Diodes晶振 | FW | 20 MHz | ±10ppm | ±10ppm | 12pF |
| FW1600008 | Diodes晶振 | FW | 16 MHz | ±20ppm | ±10ppm | 12pF |
| FW1920007 | Diodes晶振 | FW | 19.2 MHz | - | - | - |
| FW2500071 | Diodes晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 16pF |
| FW2500072 | Diodes晶振 | FW | 25 MHz | ±50ppm | ±15ppm | 10pF |
| FW2600008 | Diodes晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 8pF |
| FW2700008 | Diodes晶振 | FW | 27 MHz | ±20ppm | ±10ppm | 15pF |
| FW2710004 | Diodes晶振 | FW | 27.12 MHz | ±20ppm | ±15ppm | 8pF |
| FW3000023 | Diodes晶振 | FW | 30 MHz | ±40ppm | ±30ppm | 6pF |
| FW3200004 | Diodes晶振 | FW | 32 MHz | ±10ppm | ±10ppm | 8pF |
| FW3200022 | Diodes晶振 | FW | 32 MHz | ±10ppm | ±10ppm | 8pF |
| FW3200033 | Diodes晶振 | FW | 32 MHz | ±15ppm | ±15ppm | 8pF |
| FW3840015 | Diodes晶振 | FW | 38.4 MHz | ±15ppm | ±10ppm | 7pF |
| FW4090001 | Diodes晶振 | FW | 40.96 MHz | ±50ppm | ±10ppm | 6pF |
| FW2500051 | Diodes晶振 | FW | 25 MHz | ±20ppm | ±20ppm | 12pF |
| FW3740009 | Diodes晶振 | FW | 37.4 MHz | ±15ppm | ±10ppm | 11pF |
| FW1920001 | Diodes晶振 | FW | 19.2 MHz | ±20ppm | ±10ppm | 8pF |
| FW2600018 | Diodes晶振 | FW | 26 MHz | ±10ppm | ±10ppm | 9pF |
| FW3000010 | Diodes晶振 | FW | 30 MHz | ±30ppm | ±30ppm | 10pF |
| FW1600001 | Diodes晶振 | FW | 16 MHz | ±30ppm | ±30ppm | 8pF |
| FW1600006 | Diodes晶振 | FW | 16 MHz | ±50ppm | ±50ppm | 18pF |
| FW1600009 | Diodes晶振 | FW | 16 MHz | ±10ppm | ±10ppm | 9pF |
| FW1600015 | Diodes晶振 | FW | 16 MHz | ±20ppm | ±10ppm | 8pF |
| FW2000011 | Diodes晶振 | FW | 20 MHz | ±15ppm | ±10ppm | 10pF |
| FW2000012 | Diodes晶振 | FW | 20 MHz | ±20ppm | ±10ppm | 12pF |
| FW2400007 | Diodes晶振 | FW | 24 MHz | ±30ppm | ±30ppm | 15pF |
| FW2400011 | Diodes晶振 | FW | 24 MHz | ±10ppm | ±10ppm | 8pF |
| FW2400014 | Diodes晶振 | FW | 24 MHz | ±50ppm | ±30ppm | 20pF |
| FW2400015 | Diodes晶振 | FW | 24 MHz | ±15ppm | ±15ppm | 8pF |
| FW2400016 | Diodes晶振 | FW | 24 MHz | ±30ppm | ±30ppm | 18pF |
| FW2400022 | Diodes晶振 | FW | 24 MHz | ±40ppm | ±30ppm | 6pF |
| FW2400023 | Diodes晶振 | FW | 24 MHz | ±15ppm | ±15ppm | 10pF |
| FW2400030 | Diodes晶振 | FW | 24 MHz | ±50ppm | ±50ppm | 8pF |
| FW2400031 | Diodes晶振 | FW | 24 MHz | ±10ppm | ±10ppm | 12pF |
| FW2400033 | Diodes晶振 | FW | 24 MHz | ±15ppm | ±20ppm | 7pF |
| FW2400039 | Diodes晶振 | FW | 24 MHz | ±10ppm | ±10ppm | 15pF |
| FW2450002 | Diodes晶振 | FW | 24.576 MHz | ±30ppm | ±30ppm | 12pF |
| FW2500001 | Diodes晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 18pF |
| FW2500003 | Diodes晶振 | FW | 25 MHz | ±15ppm | ±15ppm | 12pF |
| FW2500012 | Diodes晶振 | FW | 25 MHz | ±20ppm | ±20ppm | 18pF |
| FW2500016 | Diodes晶振 | FW | 25 MHz | ±40ppm | ±30ppm | 6pF |
| FW2500018 | Diodes晶振 | FW | 25 MHz | ±30ppm | ±30ppm | 10pF |
| FW2500019 | Diodes晶振 | FW | - | - | - | - |
