OV-7605-C9-T1-20ppm-TA-QM|植入式医疗设备专用晶振|32.768KHz晶振
- 频率：32.768KHz
- 尺寸：1.6×1.0mm
- 应 用： 瑞士微晶晶振,OV-7605-C9石英晶体振荡器,OV-7605-C9-T1-20ppm-TA-QM晶振,32.768K晶振,1610mm晶振,超小型晶振,四脚SMD晶振,电压3.3V,工作温度-40~85°C,耐高温晶振,无铅环保晶振,植入式医疗设备专用晶振,起搏器晶振,除...
-
-
.jpg)
OV-7605-C9-T1-20ppm-TA-QM|植入式医疗设备专用晶振|32.768KHz晶振 ,瑞士微晶晶振,OV-7605-C9石英晶体振荡器,OV-7605-C9-T1-20ppm-TA-QM晶振,32.768K晶振,1610mm晶振,超小型晶振,四脚SMD晶振,电压3.3V,工作温度-40~85°C,耐高温晶振,无铅环保晶振,植入式医疗设备专用晶振,起搏器晶振,除颤器晶振,神经刺激器晶振, 心脏监护设备晶振.

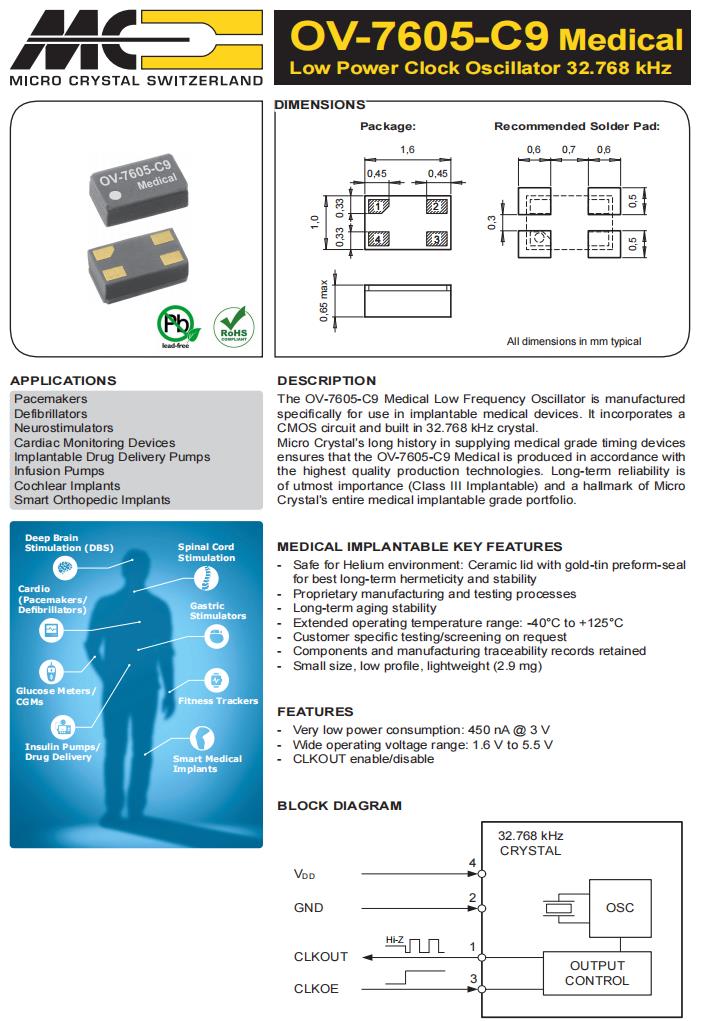

OV-7605-C9-T1-20ppm-TA-QM|植入式医疗设备专用晶振|32.768KHz晶振特点：
-氦环境安全:陶瓷盖带金锡预成型密封,为了最佳的长期密封性和稳定性
-专有制造和测试流程
-长期老化稳定性
-扩展工作温度范围:-40°C至+125°C
-客户要求的特定测试/筛选
-保留部件和制造可追溯性记录
-小尺寸、薄型、重量轻(2.9毫克)
-扩展工作温度范围:-40°C至+125°C
-客户要求的特定测试/筛选
-保留部件和制造可追溯性记录
-小尺寸、薄型、重量轻(2.9毫克)

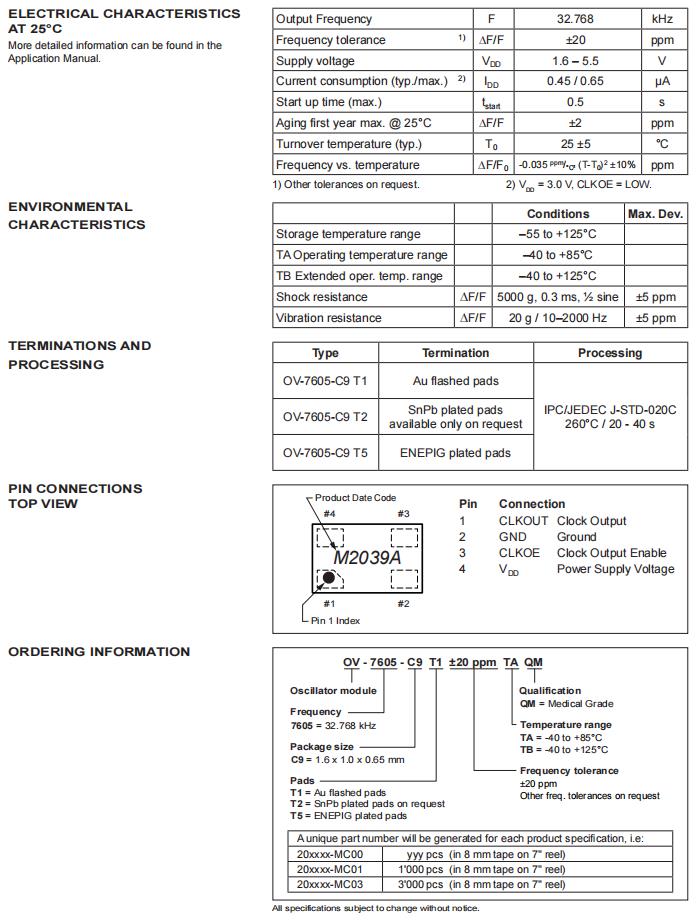

OV-7605-C9-T1-20ppm-TA-QM|植入式医疗设备专用晶振|32.768KHz晶振规格表
| 标准频率 | FL | 32.768 | KHz |
| 负载 | CL | 12.5 | pF |
| 频率容差 | ΔF/F | ±20 | ppm |
| 电源电压 | VDD | 3.3 | V |
| 电流消耗(类型/最大值) | IDD | 0.45 / 0.65 | µA |
| 占空比(最小/最大) | 40 / 60 | % | |
| 储存温度 | T_stg | −55~+125 | °C |
| 工作温度 | T_use | −40~+85 | °C |
| 启动时间（最大） | tstart | 0.5 | S |
| 周转温度(典型值） | T0 | 25 ±5 | °C |
| 老化第一年 | ΔF/F | ±2 | ppm |
|
频率温度稳定性
|
ΔF/F0 | –0.035 ppm/ °C² (T - T0)2 ±10% | ppm |
.jpg)

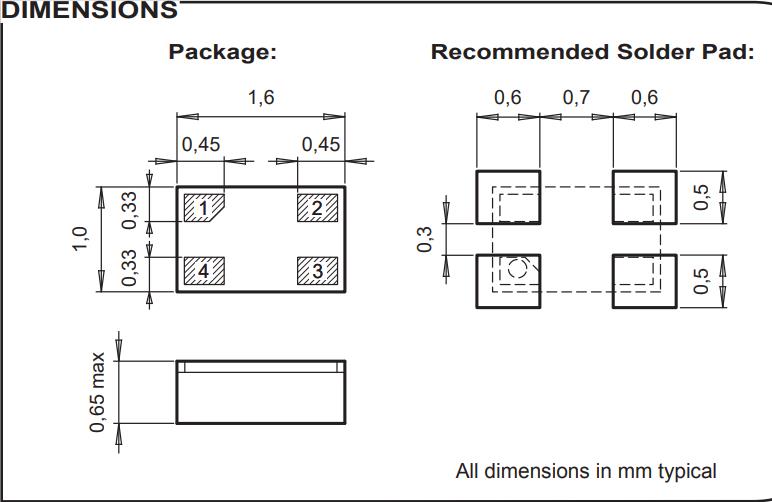

OV-7605-C9-T1-20ppm-TA-QM|植入式医疗设备专用晶振|32.768KHz晶振尺寸图
