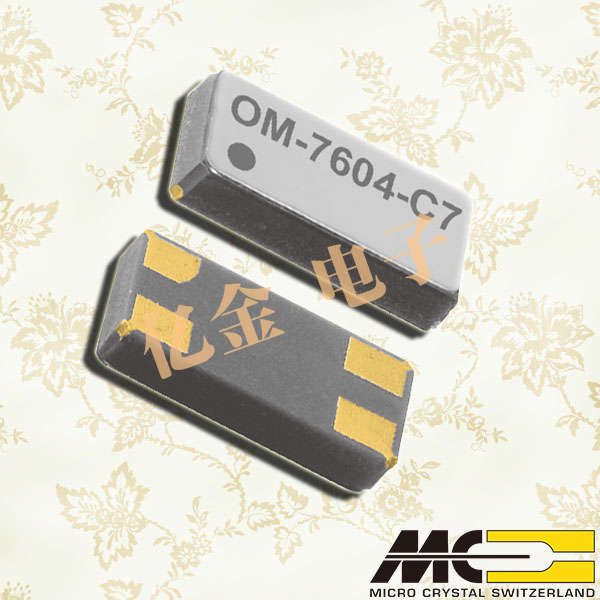

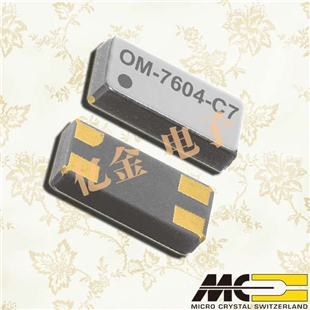

OM-7604-C7-20ppm-TB-QA|Micro Crystal AG|32.768K振荡器
- 频率：32.768KHz
- 尺寸：3.2×1.5mm
- 应 用： Micro Crystal AG,微晶晶振,OM-7604-C7有源晶振,32.768K振荡器,OM-7604-C7-20ppm-TB-QA晶振,3215mm晶振,石英贴片晶振,SMD晶振,四脚贴片晶振,频率32.768KHz,电压1.2~5.5V,工作温度-40~125°C,频率容差20ppm,耐高温晶振...
-
-
OM-7604-C7-20ppm-TB-QA|Micro Crystal AG|32.768K振荡器,Micro Crystal AG,微晶晶振,OM-7604-C7有源晶振,32.768K振荡器,OM-7604-C7-20ppm-TB-QA晶振,3215mm晶振,石英贴片晶振,SMD晶振,四脚贴片晶振,频率32.768KHz,电压1.2~5.5V,工作温度-40~125°C,频率容差20ppm,耐高温晶振,抗冲击晶振,抗振动晶振,车载音响晶振,车载电脑晶振,信息娱乐系统晶振,环绕视图摄像头晶振.
OM-7604-C7-20ppm-TB-QA|Micro Crystal AG|32.768K振荡器特点：
•宽电源电压范围
•非常低的功耗
•CLKOUT启用/禁用
•体积小，低轮廓，重量轻(10.6毫克)
•高抗冲击和抗振动
•100%不含铅，符合rohs标准
•具备AEC-Q200汽车资质
OM-7604-C7-20ppm-TB-QA|Micro Crystal AG|32.768K振荡器规格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Supply voltage
|
VDD
|
1.2~5.5 | V |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Current consumption (typ./max.)
|
IDD
|
0.3 / 0.5
|
µA
|
|
Duty cycle (min./max.)
|
|
40 / 60
|
% |
|
Start up time (max.)
|
tstart
|
0.5
|
S
|
|
Voltage coefficient (max.)
|
|
±1.5
|
ppm/V
|
|
Aging first year max. @ 25°C
|
ΔF/F
|
±3
|
ppm
|
|
Turnover temperature (typ.)
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/ °C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−55~+125 |
°C
|
|
TB Extended oper. temp. range
|
T_use | −40~+125 | °C |
|
Shock resistance
|
5000 g, 0.3 ms, ½ sine
|
||
|
Vibration resistance
|
20 g / 10–2000 Hz
|
.jpg)

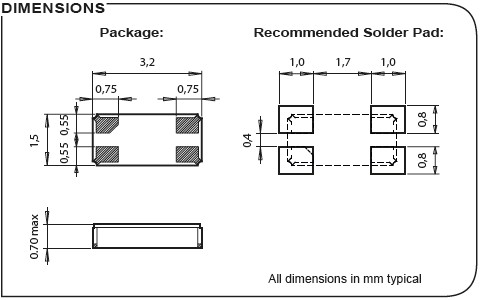

OM-7604-C7-20ppm-TB-QA|Micro Crystal AG|32.768K振荡器尺寸图
.JPG)
