更多>>OM-7604-C7-20ppm-TA-QC|6G相關設備晶振|3215mm晶振
- 頻率：32.768KHz
- 尺寸：3.2×1.5mm
- 應 用： Micro晶振,OM-7604-C7有源晶振,OM-7604-C7-20ppm-TA-QC晶振,低頻SMT振蕩器,3215mm晶振,小體積晶振,四腳SMD晶振,頻率32.768KHz,電壓3.3V,工作溫度-40~85°C,高抗沖擊晶振,高抗振動晶振,6G相關設備晶振,物聯網晶振,可穿...
-
-
.jpg)

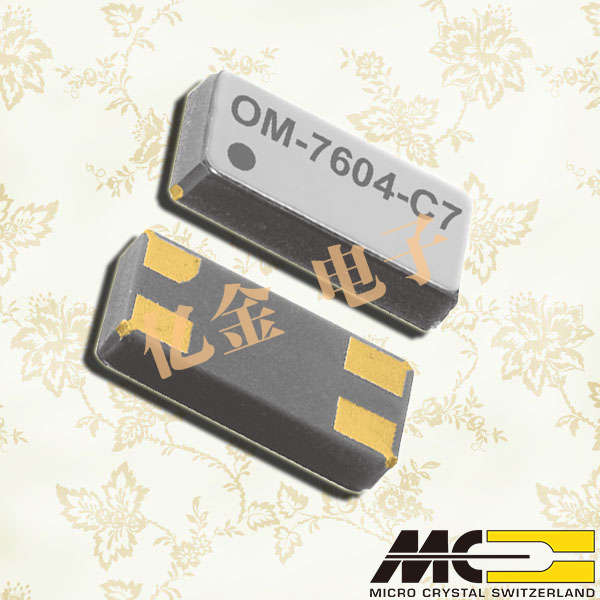

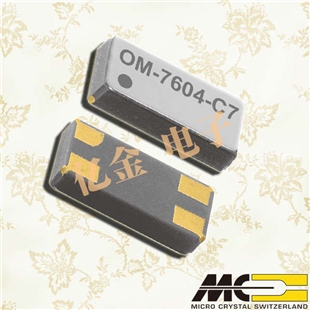

OM-7604-C7-20ppm-TA-QC|6G相關設備晶振|3215mm晶振,Micro晶振,OM-7604-C7有源晶振,OM-7604-C7-20ppm-TA-QC晶振,低頻SMT振蕩器,3215mm晶振,小體積晶振,四腳SMD晶振,頻率32.768KHz,電壓3.3V,工作溫度-40~85°C,高抗沖擊晶振,高抗振動晶振,6G相關設備晶振,物聯網晶振,可穿戴設備晶振,汽車音影系統晶振.
OM-7604-C7-20ppm-TA-QC|6G相關設備晶振|3215mm晶振 特點：
-寬電源電壓范圍
-非常低的功耗
-同步CLKOUT使能/禁用
-體積小，低姿態，重量輕(10.6毫克)
-高抗沖擊和振動
-100%無鉛，符合RoHS標準
-提供符合AEC-Q200的汽車認證
-體積小，低姿態，重量輕(10.6毫克)
-高抗沖擊和振動
-100%無鉛，符合RoHS標準
-提供符合AEC-Q200的汽車認證

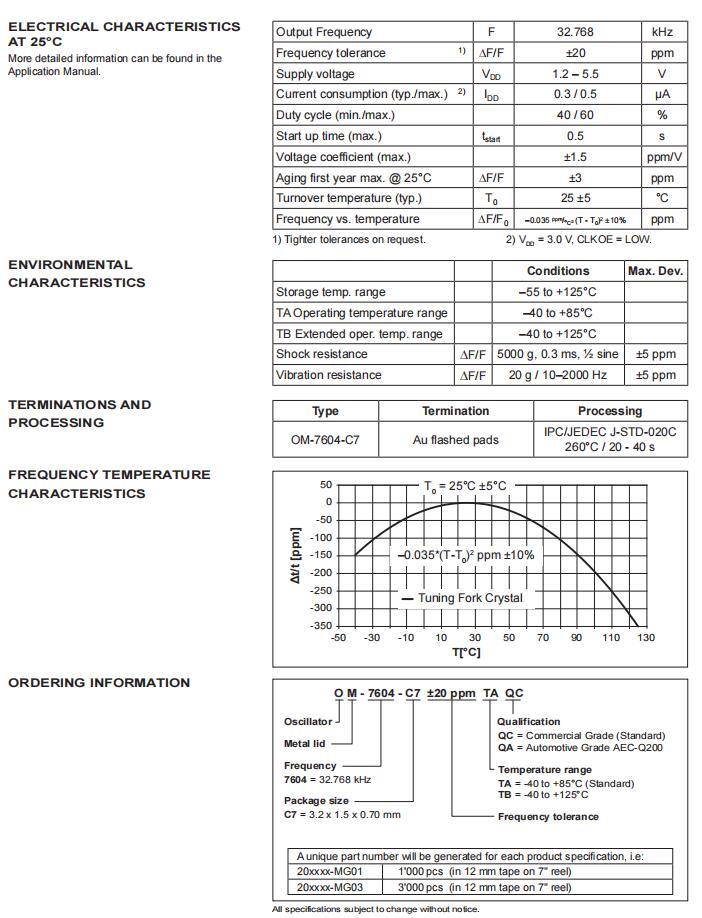

OM-7604-C7-20ppm-TA-QC|6G相關設備晶振|3215mm晶振規格表
| 標準頻率 | FL | 32.768 | KHz |
| 頻率容差 | ΔF/F | ±20 | ppm |
| 電源電壓 | VDD | 3.3 | V |
| 電流消耗(典型/最大值) | IDD | 0.3 / 0.5 | µA |
| 占空比（最小/最大） | 40 / 60 | % | |
| 儲存溫度 | T_stg | −55~+125 | °C |
| 工作溫度 | T_use | −40~+85 | °C |
| 啟動時間（最大） | tstart | 0.5 | S |
| 周轉溫度(典型值） | T0 | 25 ±5 | °C |
| 老化第一年 | ΔF/F | ±3 | ppm |
|
頻率溫度穩定性
|
ΔF/F0 | –0.035 ppm/ °C² (T - T0)2 ±10% | ppm |
.jpg)

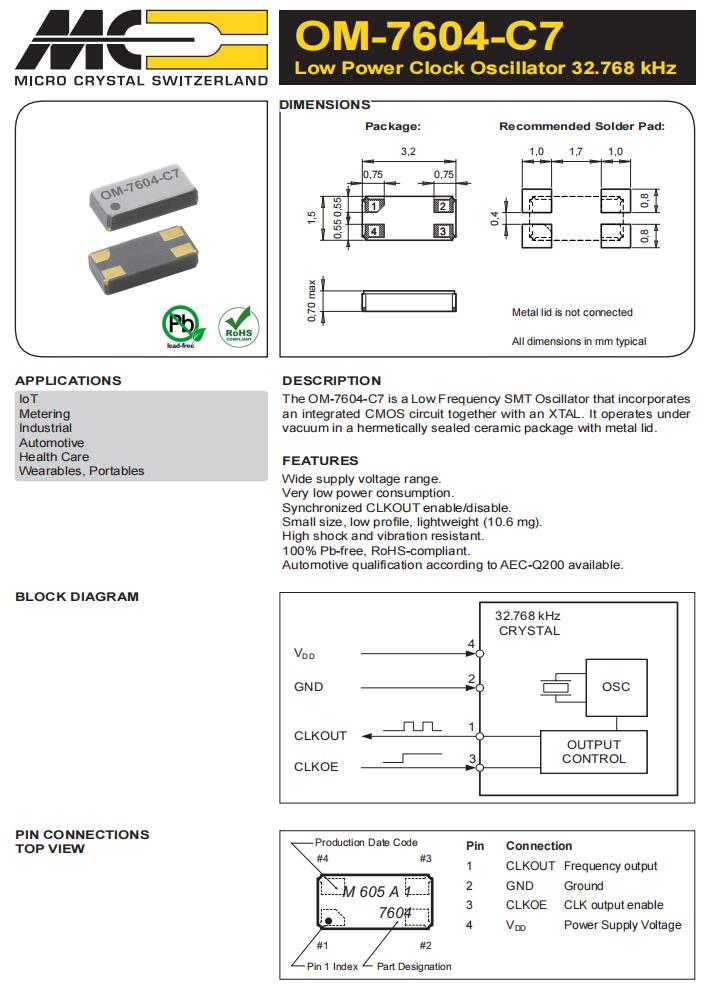

OM-7604-C7-20ppm-TA-QC|6G相關設備晶振|3215mm晶振尺寸圖
| 制造商零件編號 | 制造商 | 描述 | 產品類型 |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-6pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-32.768k-12.5pF-10PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+125C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768k-7pF-10-TB-QA | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM LOW ESR | Crystals |
| CC7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TB-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF 100 PPM -40/+125C | Crystals |
| CM7V-T1A-Low-ESR-32.768k-9pF-20-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768kHz-7pF-10PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 7.0 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-6pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-12.5pF-10PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TC-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF 500 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-6pF-10PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC4V-T1A-153.600kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶體 153.600 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-307.20kHz-4pF-100PPM-TC-QC | Micro 晶振 | 晶體 307.200 kHz 4.0 pF 100 PPM -55/+125C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-100PPM-TC-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-40.000kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶體 40.0000 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768kHz-9pF-10PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-10 PPM -55/+125C | Crystals |
| CC1V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CC1V-T1A-1.8432MHz-10pF-500PPM-TA-QC | Micro 晶振 | 晶體 1.8432 MHz 10.0 pF +/-500 PPM -40/+85C | Crystals |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.2288 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-1.2288MHz-10pF-100PPM-TC-QC | Micro 晶振 | 晶體 1.2288 MHz 10.0 pF 100 PPM -55/+125C | Crystals |
| CC1V-T1A-40.000kHz-9pF-30PPM-TC-QC | Micro 晶振 | 晶體 40.000 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC4V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| MS1V-T1K-32.768kHz-8.2pF-20PPM-TA-QC-Au | Micro 晶振 | 晶體 32.768 kHz 8.2 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-20 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-10pF-20PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC1V-T1A-307.20kHz-4pF-100PPM-TA-QC | Micro 晶振 | 晶體 307.200 kHz 4.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-12.5pF-30PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 12.5 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-15PPM-TA-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-15 PPM -40/+85C | Crystals |
| CC1V-T1A-32.768kHz-9pF-30PPM-TC-QC | Micro 晶振 | 晶體 32.768 kHz 9.0 pF +/-30 PPM -55/+125C | Crystals |
| CC1V-T1A-1.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 1.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-2.000MHz-10pF-100PPM-TA-QC | Micro 晶振 | 晶體 2.000 MHz 10.0 pF +/-100 PPM -40/+85C | Crystals |
| CC1V-T1A-40.000kHz-9pF-30PPM-TA-QC | Micro 晶振 | 晶體 40.000 kHz 9.0 pF +/-30 PPM -40/+85C | Crystals |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://m.hneyq.com
地址：廣東省深圳市寶安區新安107國道旁
銷售代表
