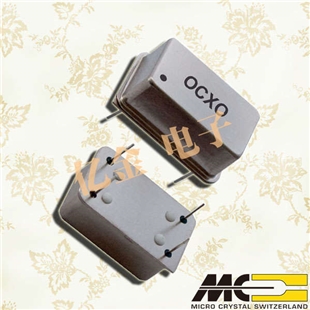

OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG
- 频率：52MHz
- 尺寸：20.2×12.6mm
- 应 用： 瑞士微晶晶振,OCXO有源晶振,恒温晶振,OCXO-W-T-C-V3-52.000MHz-D2晶振,石英晶体振荡器,进口晶振,20.2×12.6mm晶振,四脚插件晶振,频率52MHz,电压3.3V,工作温度-40~85°C,频率容差0.5ppm,低功耗晶振,高稳定性晶振,低老化...
-
-
OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG,瑞士微晶晶振,OCXO有源晶振,恒温晶振,OCXO-W-T-C-V3-52.000MHz-D2晶振,石英晶体振荡器,进口晶振,20.2×12.6mm晶振,四脚插件晶振,频率52MHz,电压3.3V,工作温度-40~85°C,频率容差0.5ppm,低功耗晶振,高稳定性晶振,低老化晶振,数字交换晶振,机载设备晶振,电池控制系统晶振,无线电收发机晶振.
OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG特点：
•高稳定性，低老化
•低功耗
•非常快的热身
•在基本模式下运行
•高抗冲击和抗振动
•通过无铅认证

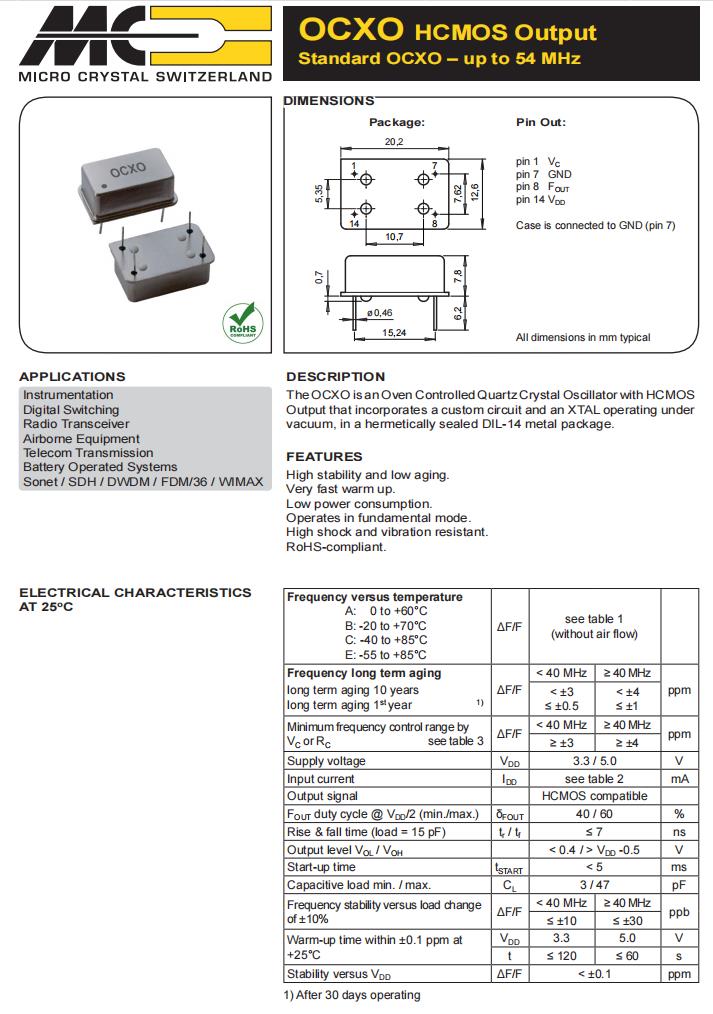

OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG规格表
| Standard Frequency | FL | 52 | MHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F |
≤ ±500
|
ppb |
| Input Current | IDD |
≤ 120 mA
|
mA |
| Output signal | HCMOS compatible | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 40 / 60 | % |
|
Rise & fall time
(CL = 15 pF)
|
tr / tf | ≤ 7 | ns |
|
Output level VOL / VOH
|
|
< 0.4 / > VDD -0.5
|
V |
| Start-up time | tSTART | < 5 | ms |
|
Capacitive load min. / max
|
CL
|
3 / 47
|
pF |
| Storage temperature range | T_stg | −55~+125 | °C |
| Operating temperature range | T_use | −40~+85 | °C |
| Shock resistance | 5000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 20 g / 10–2000 Hz | ||
|
Pins soldering
|
+235°C / 10 s max.
+260°C / 5 s max.
|
||
| Terminations (Option ) |
SMD, formed leads (D2)
|
.jpg)

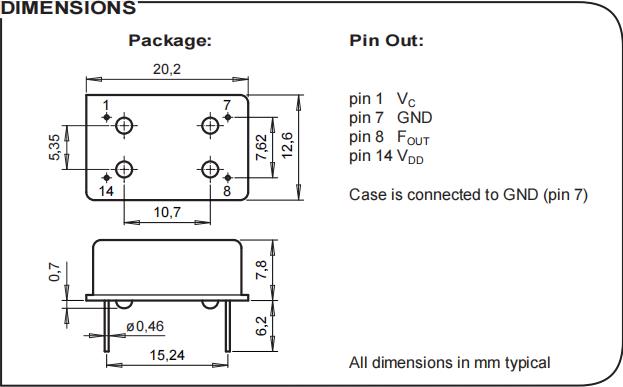

OCXO-W-T-C-V3-52.000MHz-D2|Micro Crystal AG尺寸图
.jpg)
.jpg)
