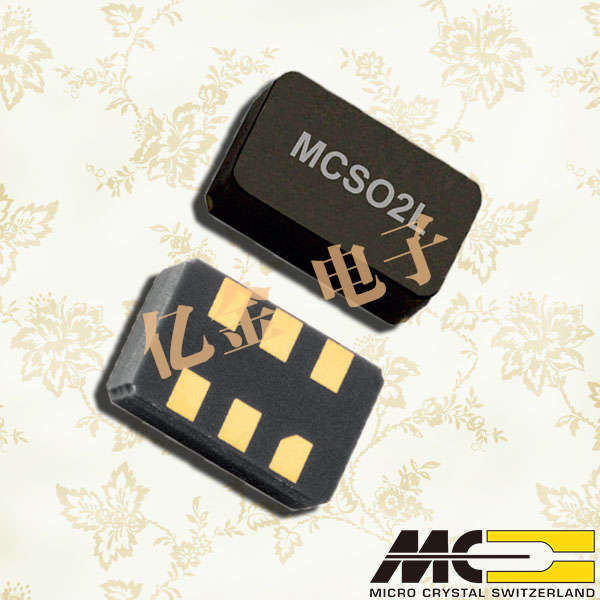

MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator
- 频率：100MHz
- 尺寸：5.0×3.2mm
- 应 用： 瑞士微晶晶振,MCSO2L有源晶振,差分晶振,MCSO2L-KVT-B-100.000MHz-E/D-T3晶振,LVDS晶振,5032mm晶振,六脚贴片晶振,石英晶体振荡器,SMD振荡器,频率100MHz,电压3.3V,工作温度-40~85°C,频率容差50ppm,无铅环保晶振,耐高温...
-
-
MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator,瑞士微晶晶振,MCSO2L有源晶振,差分晶振,MCSO2L-KVT-B-100.000MHz-E/D-T3晶振,LVDS晶振,5032mm晶振,六脚贴片晶振,石英晶体振荡器,SMD振荡器,频率100MHz,电压3.3V,工作温度-40~85°C,频率容差50ppm,无铅环保晶振,耐高温晶振,高稳定性晶振,有线通讯设备晶振,微微蜂窝晶振,测试与测量设备晶振,通用处理器晶振.
MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator特点：
•卓越的密封与金-锡预制
•高稳定性，低老化，密封保证
•非常快的启动
•宽温度范围
•在基本模式下运行
•高抗冲击和抗振动
•100%不含铅，符合RoHS标准

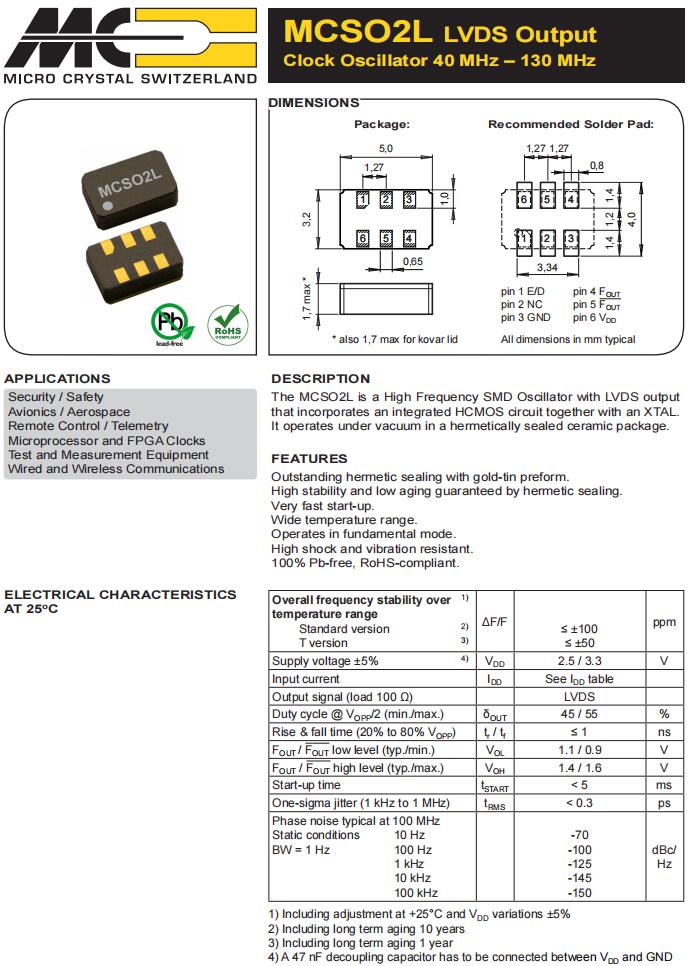

MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator规格表
| Standard Frequency | FL | 100 | MHz |
| Supply voltage ±5% | VDD | 3.3 | V |
| Frequency tolerance | ΔF/F | ±50 | ppm |
| Input Current | IDD |
< 15
|
mA |
| Output signal | LVDS | ||
| FOUT duty cycle @ VDD/2 (min./max.) | δFOUT | 45 / 55 | % |
|
Rise & fall time,≤ 20 MHz For F = 32.768 kHz, tr / tf ≤ 150 ns(CL = 15 pF, 20% to 80% VDD) |
tr / tf | ≤ 1 | ns |
|
FOUT / FOUT low level (typ./min.)
|
VOL
|
1.1/0.9 | V |
|
FOUT / FOUT high level (typ./max.)
|
VOH
|
1.4/1.6 | V |
| Start-up time | tSTART | < 5 | ms |
|
One-sigma jitter (1 kHz to 1 MHz)
|
tRMS
|
< 0.3
|
ps |
|
Phase noise typical at 100 MHz
Static conditions 10 Hz
BW = 1 Hz 100 Hz
1 kHz
10 kHz
100 kHz
|
-70
-100
-125
-145
-150
|
dBc/
Hz
|
|
| Storage temperature range | T_stg | −65~+125 | °C |
| Operating temperature range | T_use | −40~+85 | °C |
| Shock resistance | 5000 g, 0.3 ms, ½ sine | ||
| Vibration resistance | 50 g / 10–2000 Hz | ||
| Lid |
Kovar lid（K）
|
||
| Terminations (Option ) |
SnAgCu solder dipped pads (T3)
|
.jpg)

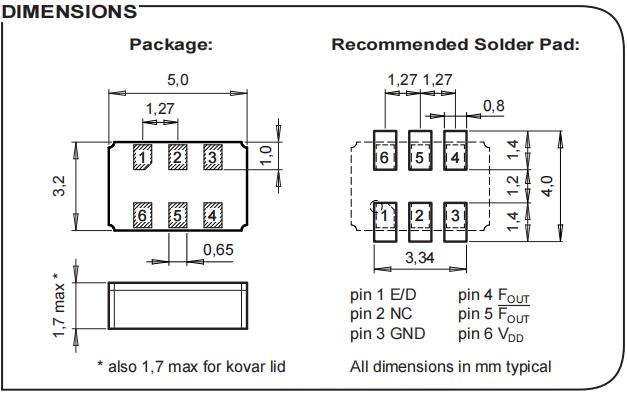

MCSO2L-KVT-B-100.000MHz-E/D-T3|MICRO SMD Oscillator尺寸图
