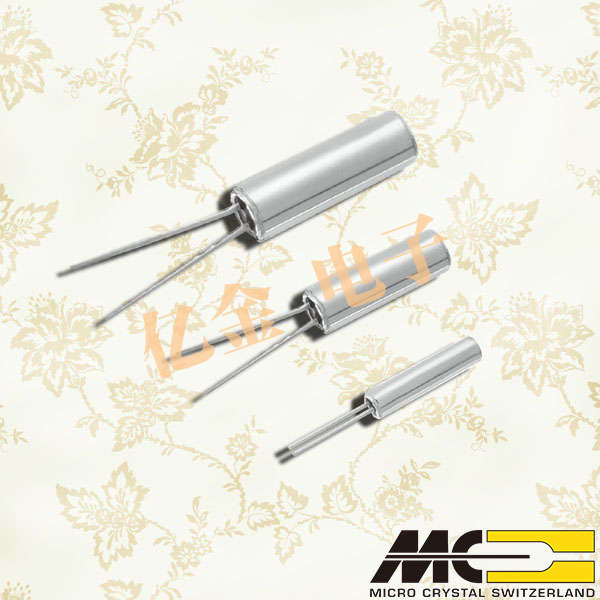

DS10-L3N-32.768kHz-8.2pF-20ppm-TW|微晶晶振|圆柱晶振
- 频率：32.768KHz
- 尺寸：?1.0×4.3mm
- 应 用： 微晶晶振,Micro晶振,DS10圆柱晶振,无源晶振,DS10-L3N-32.768kHz-8.2pF-20ppm-TW晶振,1.0x 4.3mm晶振,石英晶体谐振器,进口插件晶振,频率32.768KHz,负载8.2pF,工作温度-10~60°C,频率容差20ppm,超小型晶振,高抗冲击晶振...
-
-
DS10-L3N-32.768kHz-8.2pF-20ppm-TW|微晶晶振|圆柱晶振,微晶晶振,Micro晶振,DS10圆柱晶振,无源晶振,DS10-L3N-32.768kHz-8.2pF-20ppm-TW晶振,1.0x 4.3mm晶振,石英晶体谐振器,进口插件晶振,频率32.768KHz,负载8.2pF,工作温度-10~60°C,频率容差20ppm,超小型晶振,高抗冲击晶振,高抗振动晶振,计时器晶振,智能手表晶振,物联网晶振,时钟源应用晶振.
DS10-L3N-32.768kHz-8.2pF-20ppm-TW|微晶晶振|圆柱晶振特点：
•密封封装保证高稳定性
•高抗冲击和抗振动
•最小可用的管状封装DS10， Ø 1.0 mm
•非常有价格竞争力的产品
•100%不含铅，符合ROHS标准

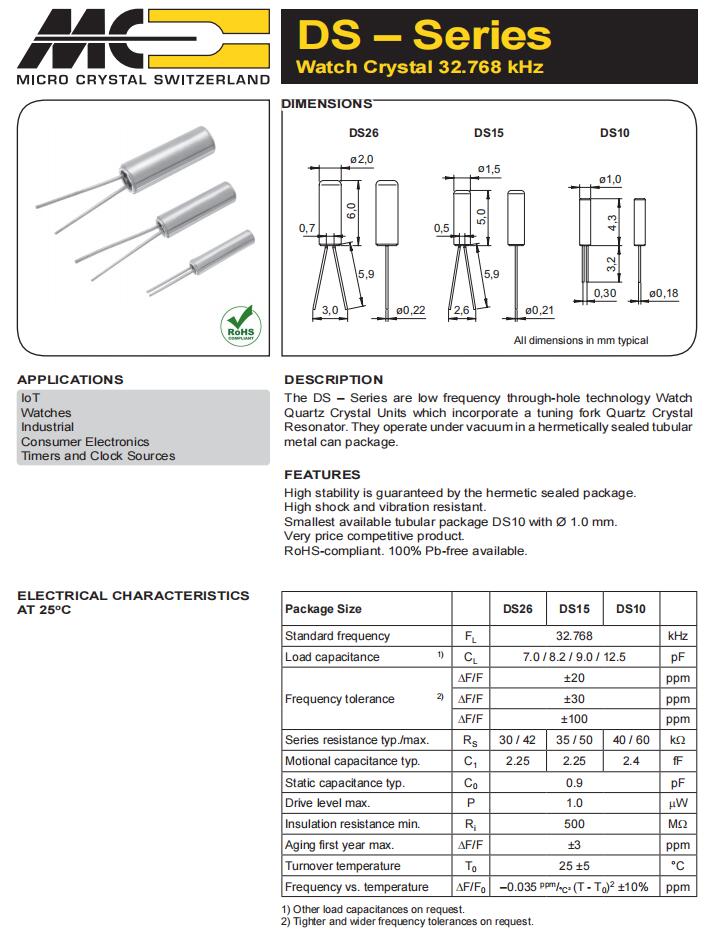

DS10-L3N-32.768kHz-8.2pF-20ppm-TW|微晶晶振|圆柱晶振规格表
|
Standard Frequency
|
FL | 32.768 | KHz |
|
Load capacitance
|
CL | 8.2 | pF |
|
Frequency tolerance
|
ΔF/F | ±20 | ppm |
|
Series resistance typ./max
|
RS | 40/60 | kΩ |
|
Motional capacitance typ.
|
C1
|
2.4 |
fF
|
|
Static capacitance typ.
|
C0
|
0.9 |
pF
|
|
Drive level max.
|
P | 1.0 |
μW
|
|
Insulation resistance min.
|
Ri
|
500 |
MΩ
|
|
Aging first year max.
|
ΔF/F
|
±3
|
ppm |
|
Turnover temperature
|
T0
|
25 ±5
|
°C
|
|
Frequency vs. temperature
|
ΔF/F0
|
–0.035 ppm/°C² (T - T0)2 ±10%
|
ppm |
|
Storage temperature range
|
T_stg
|
−20~+70 |
°C
|
|
TA Operating temperature range
|
T_use | −10~+60 | °C |
.jpg)

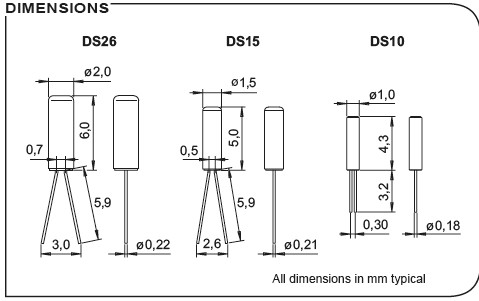

DS10-L3N-32.768kHz-8.2pF-20ppm-TW|微晶晶振|圆柱晶振尺寸图
.JPG)
.jpg)
