首页欧美晶振微晶晶振CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四脚贴片晶振|6G光纤通道晶振

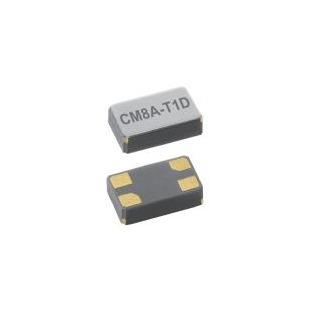

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四脚贴片晶振|6G光纤通道晶振

频率：27MHz
尺寸：2.0×1.2mm
应　用： 瑞士微晶晶振,CM8A-T1D石英晶体谐振器,CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI晶振,2012四脚贴片晶振,频率27MHz,负载16pf,频率稳定性50ppm,工作温度-40~125°C,低老化振,高可靠性晶振,6G光纤通道晶振,医用植入式晶振,...

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四脚贴片晶振|6G光纤通道晶振,瑞士微晶晶振,CM8A-T1D石英晶体谐振器,CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI晶振,2012四脚贴片晶振,频率27MHz,负载16pf,频率稳定性50ppm,工作温度-40~125°C,低老化振,高可靠性晶振,6G光纤通道晶振,医用植入式晶振,无线电通信设备晶振,家用保健和医疗设备晶振.
CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四脚贴片晶振|6G光纤通道晶振特点：
-金锡预制件的出色密封
-密封保证了高稳定性和低老化
-适用于扩展的工作温度范围
-小尺寸、低姿态、重量轻(典型4.1毫克)
-在基本模式下运行
-高抗冲击和振动
-100%无铅，符合RoHS标准

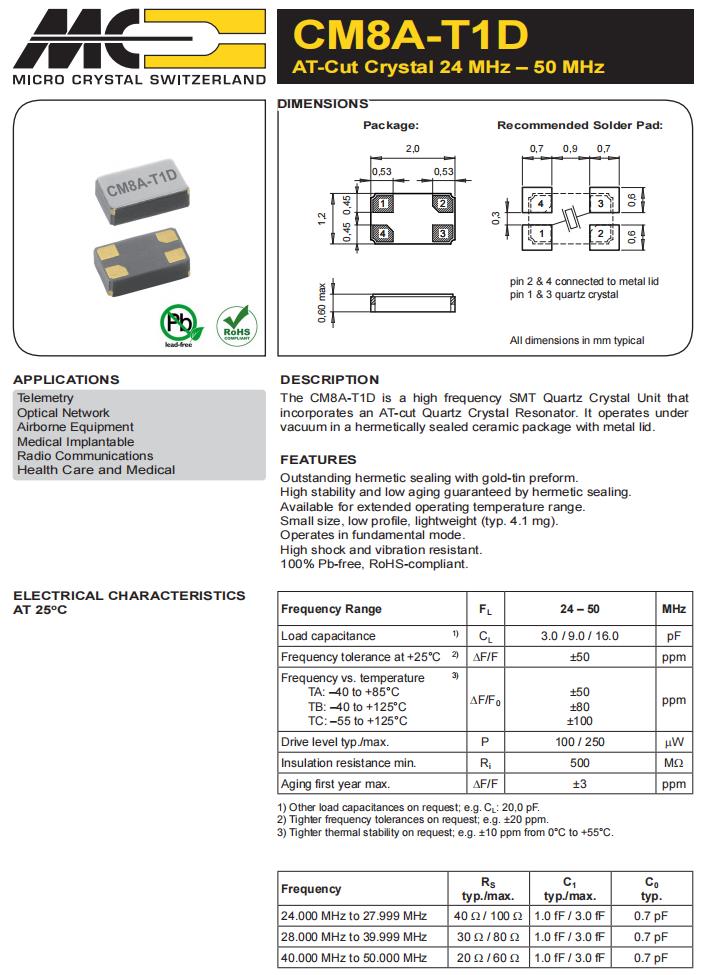

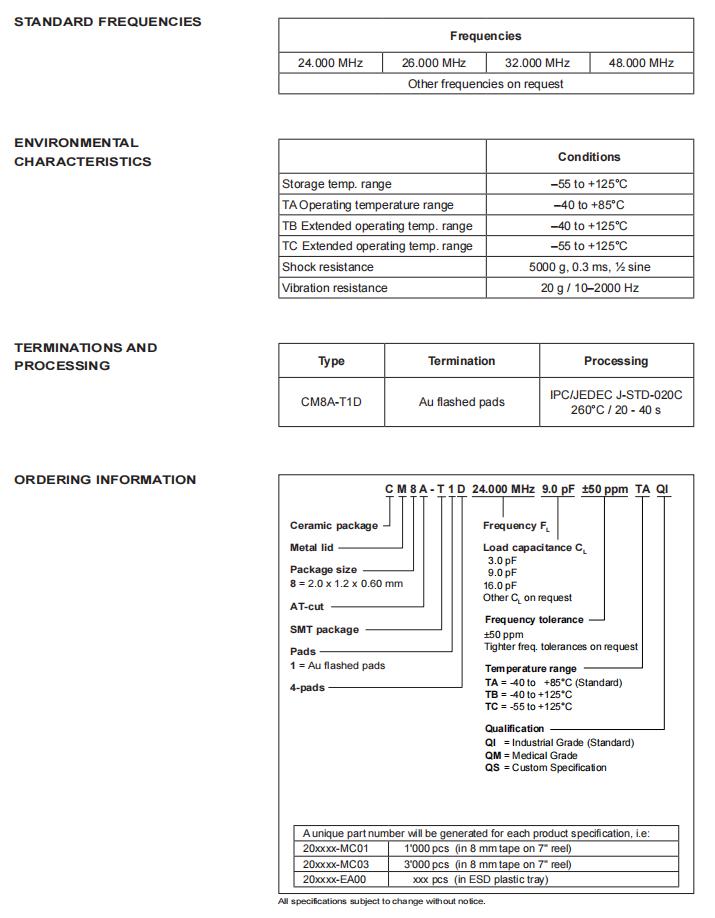

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四脚贴片晶振|6G光纤通道晶振规格表

标准频率	FL	27	MHz
负载	CL	16	pF
频率容差	ΔF/F	±50	ppm
频率温度稳定性	ΔF/F0	±50	ppm
储存温度	T_stg	−55~+125	°C
工作温度	T_use	−40~+125	°C
驱动电平典型/最大	P	100/250	μW
最小绝缘电阻	Ri	500	MΩ
老化第一年	ΔF/F	±3	ppm

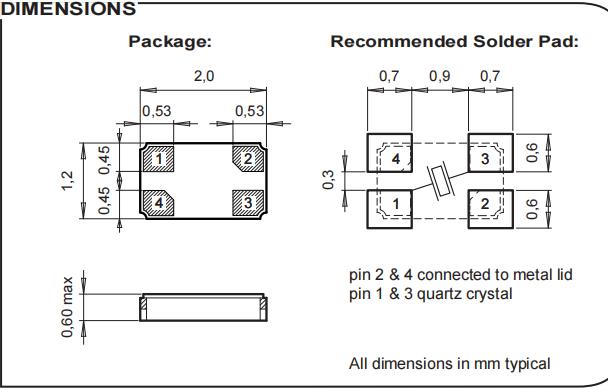

CM8A-T1D-27.000MHz-16.0pF-50ppm-TB-QI|2012四脚贴片晶振|6G光纤通道晶振尺寸图

制造商零件编号	制造商	描述	产品类型
CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768k-9pF-20PPM-TB-QA	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C	Crystals
CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-12.5pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C	Crystals
CM9V-T1A-32.768kHz-9pF-20PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C	Crystals
CM8V-T1A-32.768k-12.5pF-20PPM-TA-QA	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200	Crystals
CM8V-T1A-32.768kHz-9pF-20PPM-TB-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C	Crystals
CM8V-T1A-32.768kHz-7pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-32.768kHz-12.5pF-20PPM-TC-QC	Micro 晶振	晶体 32.768 kHz 12.5 pF +/-20 PPM -55/+125C	Crystals
CM8V-T1A-32.768kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
CM8V-T1A-100.000kHz-9pF-100PPM-TA-QC	Micro 晶振	晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C	Crystals
