CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G无线网络晶振,瑞士微晶晶振
- 频率：32.768KHz
- 尺寸：3.2×1.5mm
- 应 用： 型号CC7V-T1A,编码CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,是一个低频SMT石英晶体单元,包含一个音叉石英晶体谐振器,它在带有陶瓷盖的密封陶瓷封装中的真空下工作,尺寸3215mm,频率32.768KHz,负载6pF,工作温度-55~125°C,具...
-
-
.jpg)
CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G无线网络晶振,瑞士微晶晶振,型号CC7V-T1A,编码CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,是一个低频SMT石英晶体单元,包含一个音叉石英晶体谐振器,它在带有陶瓷盖的密封陶瓷封装中的真空下工作,尺寸3215mm,频率32.768KHz,负载6pF,工作温度-55~125°C,具备AEC-Q200汽车资质,6G无线网络晶振,物联网晶振,汽车电子应用晶振,工业设备晶振.
CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G无线网络晶振,瑞士微晶晶振特点：
卓越的密封与金-锡预制
高稳定性，低老化，密封保证
可扩展工作温度范围
小尺寸，低轮廓，重量轻(12.5毫克)
高抗冲击和抗振动
100%不含铅，符合rohs标准
具备AEC-Q200汽车资质

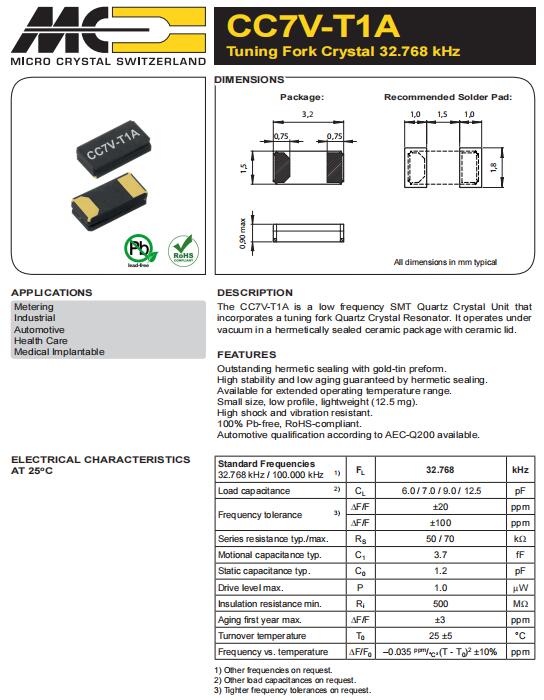

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G无线网络晶振,瑞士微晶晶振规格表
| 标准频率 | FL | 32.768 | KHz |
| 负载 | CL | 12.5 | pF |
| 频率容差 | ΔF/F | ±20 | ppm |
| 串联电阻最大值 | RS | 50/70 | kΩ |
| 储存温度 | T_stg | −55~+125 | °C |
| 工作温度 | T_use | −40~+125 | °C |
| 最大驱动电平 | P | 0.5 | μW |
| 最小绝缘电阻 |
Ri
|
500 |
MΩ
|
| 老化第一年 | ΔF/F | ±3 | ppm |
.jpg)

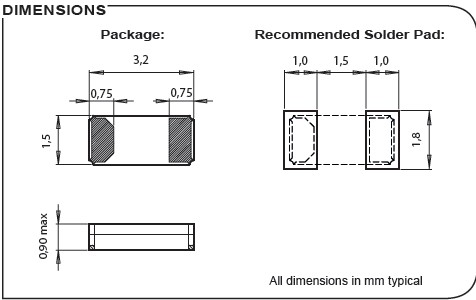

CC7V-T1A-32.768kHz-6pF-20ppm-TC-QA,6G无线网络晶振,瑞士微晶晶振尺寸图
| 制造商零件编号 | 制造商 | 描述 | 产品类型 |
| MS1V-T1K-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| MS1V-T1K-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-12.5pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-7pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CC7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM8V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+125C | Crystals |
| MS1V-T1K-32.768kHz-10pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 10.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| MS3V-T1R-32.768kHz-9pF-20PPM-TA-QC-Au | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-9pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM LOW ESR | Crystals |
| CC7V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7VT1A-LowESR-32.768kHz-12.5pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-7pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-7pF-100PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-20PPM-TA-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-100PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF 100 PPM -55/+125C | Crystals |
| CC4V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-7pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-9pF-20PPM-TC-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -55/+125C | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TB-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-Low-ESR-32.768kHz-6pF-20-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM LOW ESR | Crystals |
| CM7V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768k-7pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-9pF-100PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768k-9pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM AEC-Q200 | Crystals |
| CC7V-T1A-32.768k-12.5pF-20PPM-TC-QA | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM AEC-Q200 | Crystals |
| CM7V-T1A-32.768kHz-6pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-10 PPM -40/+85C | Crystals |
| CC4V-T1A-32.768kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-6pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 6.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CM8V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CC4V-T1A-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-100PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-100 PPM -40/+85C | Crystals |
| CM9V-T1A-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+85C | Crystals |
| CC5V-T1A-32.768kHz-12.5pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM -40/+125C | Crystals |
| CC5V-T1A-32.768kHz-7pF-20PPM-TB-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM -40/+125C | Crystals |
| CM7V-T1A-0.3-32.768kHz-7pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 7.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-0.3-32.768kHz-9pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-20 PPM 0.3mm | Crystals |
| CM7VT1A-0.3-32.768kHz-12.5pF-20PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-20 PPM 0.3mm | Crystals |
| CM7V-T1A-100.000kHz-9pF-100PPM-TA-QC | Micro 晶振 | 晶体 100.000 kHz 9.0 pF +/-100 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-12.5pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 12.5 pF +/-10 PPM -40/+85C | Crystals |
| CM7V-T1A-32.768kHz-9pF-10PPM-TA-QC | Micro 晶振 | 晶体 32.768 kHz 9.0 pF +/-10 PPM -40/+85C | Crystals |
