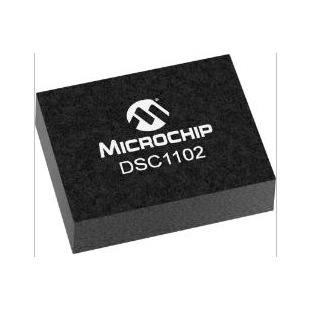

DSC1102BI2-125.0000-Microchip品牌-6G无源光网络晶振
- 频率：125MHz
- 尺寸：5.0×3.2mm
- 应 用： Microchip晶振,DSC1102有源晶振,石英晶体振荡器,DSC1102BI2-125.0000晶振,LV-PECL差分振荡器,进口贴片晶振,5032mm晶振,频率125MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,高稳定性晶振,低相位抖动晶振,无铅环保...
-
-
DSC1102BI2-125.0000-Microchip品牌-6G无源光网络晶振,Microchip晶振,DSC1102有源晶振,石英晶体振荡器,DSC1102BI2-125.0000晶振,LV-PECL差分振荡器,进口贴片晶振,5032mm晶振,频率125MHz,电压3.3V,工作温度-40~85°C,频率稳定性25ppm,高稳定性晶振,低相位抖动晶振,无铅环保晶振,6G无源光网络晶振,存储区域网络晶振,监控摄像头晶振,高清视频设备晶振.
DSC1102BI2-125.0000-Microchip品牌-6G无源光网络晶振特点：
•低RMS相位抖动:<1 ps(类型)
•高稳定性:±10 ppm，±20 ppm，±25 ppm，±50 ppm
•宽温度范围:
-Ext.工业:- 40°C至+105°C
-工业:- 40℃~ +85℃
-商用:- 20℃~ +70℃
•高电源噪声抑制:-50 dBc
•宽频率范围:2.3 MHz至460 MHz
•小的行业标准足迹
- 2.5 mm × 2.0 mm, 3.2 mm × 2.5 mm, 5.0 mmX 3.2 mm和7.0 mm X 5.0 mm
•卓越的抗冲击和抗振动能力
-符合MIL-STD-883标准
•高可靠性
- MTF比石英振荡器好20倍
•低电流消耗
•电源范围2.25至3.63V
•待机和输出使能功能
•无铅，符合RoHS标准
•LVDS和HCSL版本可用
DSC1102BI2-125.0000-Microchip品牌-6G无源光网络晶振规格表
| 项目 | 规格说明 | 条件 |
| 额定频率 | 125MHz | 请联系我们以便获取其它可用频率的相关信息 |
| 电源电压 | 3.3V | |
| 储存温度 | -55℃~+150℃ | 裸存 |
| 工作温度 | -40℃~ +85℃ | |
| 频率稳定度 | ±25ppm | 包括由初始公差、温度和电源电压引起的频率变化 |
| 老化 | ±5ppm | 1 year @ +25°C |
| 电流 | 58mA Max |
Output Enabled, RL = 50Ω
|
| 负载 | 15pf | |
| 输出逻辑电平低（Vol） | VDD–1.55V Max |
Output logic low
|
| 输出逻辑电平高（Voh） | VDD –1.08V Min |
Output logic high, RL = 50Ω
|
| 输出上升下降时间 | 2ns Max | 20%/80% CL=15pF |
| 占空比 | 48%~52% | |
| 输入逻辑电平高（VIH） | 0.75×VDD Min | |
| 输入逻辑电平低（VIL） | 0.25x VDD Max | |
| 起始时间 | 5 ms Max | T = +25°C |
| 周期抖动 | 2.5psRMS |
-
|
| 集成相位噪声 |
2psRMS
|
12 kHz to 20 MHz @ 156.25 MHz
|
.jpg)

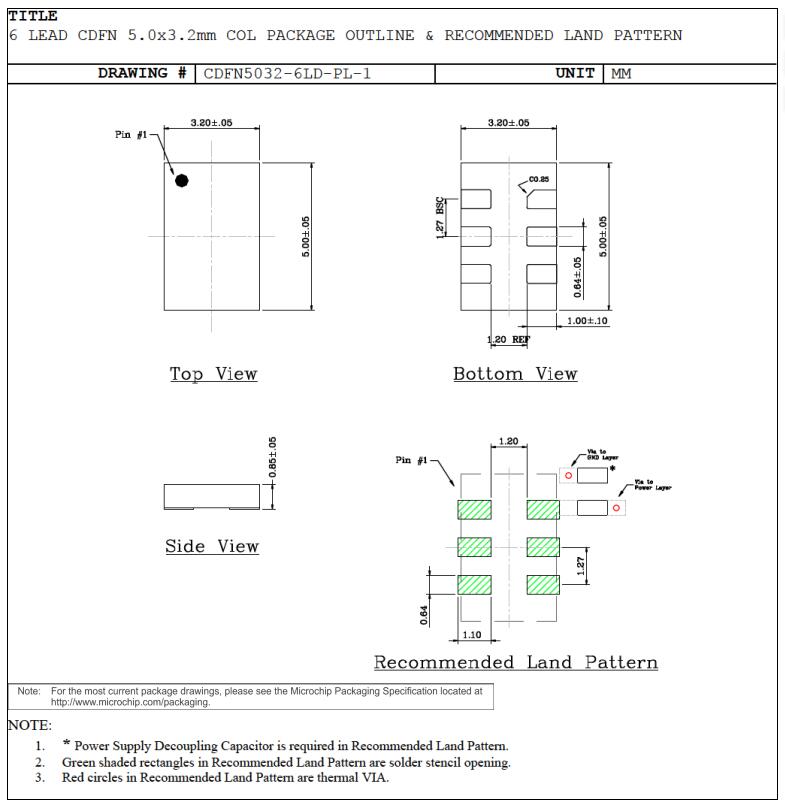

DSC1102BI2-125.0000-Microchip品牌-6G无源光网络晶振尺寸图
| 原厂代码 | 晶振品牌 | 型号 | 频率 | 电压 | 尺寸 |
| DSC1121CM2-040.0000 | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DM1-033.3333 | Microchip Technology | DSC1121 | 33.3333MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121BM1-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-080.0000 | Microchip Technology | DSC1121 | 80MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121CI2-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121BI2-025.0007 | Microchip Technology | DSC1121 | 25.0007MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AE2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CM1-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121AI2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI2-066.6667 | Microchip Technology | DSC1121 | 66.6667MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-024.5760 | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-066.6660 | Microchip Technology | DSC1121 | 66.666MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-020.0000 | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DL2-024.7500T | Microchip Technology | DSC1121 | 24.75MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-024.7500T | Microchip Technology | DSC1121 | 24.75MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-024.7500T | Microchip Technology | DSC1121 | 24.75MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-032.0000T | Microchip Technology | DSC1121 | 32MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-032.0000T | Microchip Technology | DSC1121 | 32MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-032.0000T | Microchip Technology | DSC1121 | 32MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121AI2-020.0000 | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI2-012.2880 | Microchip Technology | DSC1121 | 12.288MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121DI1-026.6000 | Microchip Technology | DSC1121 | 26.6MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CE1-025.0012 | Microchip Technology | DSC1121 | 25.0012MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CE5-012.2880 | Microchip Technology | DSC1121 | 12.288MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CE5-024.5670 | Microchip Technology | DSC1121 | 24.567MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI5-034.3680 | Microchip Technology | DSC1121 | 34.368MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CE1-133.3333 | Microchip Technology | DSC1121 | 133.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AI2-148.5000T | Microchip Technology | DSC1121 | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-148.5000T | Microchip Technology | DSC1121 | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-148.5000T | Microchip Technology | DSC1121 | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-004.0000 | Microchip Technology | DSC1121 | 4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BE2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BE2-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121DI2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-011.0590 | Microchip Technology | DSC1121 | 11.059MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-022.5792 | Microchip Technology | DSC1121 | 22.5792MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-024.5760 | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CI2-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-012.0000T | Microchip Technology | DSC1121 | 12MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-012.2880T | Microchip Technology | DSC1121 | 12.288MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-013.0000T | Microchip Technology | DSC1121 | 13MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-020.0000T | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-024.5760T | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-027.0000T | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-030.0000T | Microchip Technology | DSC1121 | 30MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-048.0000T | Microchip Technology | DSC1121 | 48MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-051.8400T | Microchip Technology | DSC1121 | 51.84MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-060.0000T | Microchip Technology | DSC1121 | 60MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-066.6660T | Microchip Technology | DSC1121 | 66.666MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-031.2500 | Microchip Technology | DSC1121 | 31.25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-014.7456 | Microchip Technology | DSC1121 | 14.7456MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-014.7456T | Microchip Technology | DSC1121 | 14.7456MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-066.6667T | Microchip Technology | DSC1121 | 66.6667MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121BI2-013.0000T | Microchip Technology | DSC1121 | 13MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AI2-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-029.4912T | Microchip Technology | DSC1121 | 29.4912MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-048.0000T | Microchip Technology | DSC1121 | 48MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0007T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-048.0000T | Microchip Technology | DSC1121 | 48MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AI2-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NI2-018.4320 | Microchip Technology | DSC1121 | 18.432MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-020.0000T | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI2-012.2880T | Microchip Technology | DSC1121 | 12.288MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121CE1-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CE1-025.0012T | Microchip Technology | DSC1121 | 25.0012MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI1-036.0000T | Microchip Technology | DSC1121 | 36MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CE1-016.0000 | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CE1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI1-026.6000T | Microchip Technology | DSC1121 | 26.6MHz | 2.25 V ~ 3.6V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CL2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-040.0000T | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-024.7500 | Microchip Technology | DSC1121 | 24.75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AE2-020.0000T | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CE2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AI1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CE2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DL2-008.0000T | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-008.0000 | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-024.7500 | Microchip Technology | DSC1121 | 24.75MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-032.0000 | Microchip Technology | DSC1121 | 32MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI5-044.0000 | Microchip Technology | DSC1121 | 44MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI5-044.7360 | Microchip Technology | DSC1121 | 44.736MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI1-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CM1-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-016.0000 | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-026.5625 | Microchip Technology | DSC1121 | 26.5625MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-020.0000T | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AM1-030.0000T | Microchip Technology | DSC1121 | 30MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BM1-008.0000 | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-027.0000T | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-030.0000 | Microchip Technology | DSC1121 | 30MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-030.0000T | Microchip Technology | DSC1121 | 30MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AM1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM1-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BM1-048.0000T | Microchip Technology | DSC1121 | 48MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121CE1-075.0000T | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121BM1-048.0000 | Microchip Technology | DSC1121 | 48MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-010.0000 | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121CE1-133.3333T | Microchip Technology | DSC1121 | 133.3333MHz | 2.25 V ~ 3.6V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI2-125.0000B | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM1-033.3333T | Microchip Technology | DSC1121 | 33.3333MHz | 2.25 V ~ 3.6V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121AE1-156.2500 | Microchip Technology | DSC1121 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-075.0000T | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI5-040.0000T | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-022.5000 | Microchip Technology | DSC1121 | 22.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-040.0000 | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-045.0000 | Microchip Technology | DSC1121 | 45MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AE1-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI5-016.0000 | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-049.1520 | Microchip Technology | DSC1121 | 49.152MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121NL1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NL1-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI2-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-148.5000T | Microchip Technology | DSC1121 | 148.5MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-168.0000 | Microchip Technology | DSC1121 | 168MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-115.0000 | Microchip Technology | DSC1121 | 115MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-132.0000 | Microchip Technology | DSC1121 | 132MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI2-133.3330T | Microchip Technology | DSC1121 | 133.333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DM2-003.3333T | Microchip Technology | DSC1121 | 3.3333MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM2-007.3728 | Microchip Technology | DSC1121 | 7.3728MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121AE2-075.0000T | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-156.2500 | Microchip Technology | DSC1121 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI1-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI5-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BM1-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AE2-156.2500T | Microchip Technology | DSC1121 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BE5-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-156.2540T | Microchip Technology | DSC1121 | 156.254MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-156.2540 | Microchip Technology | DSC1121 | 156.254MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121DI2-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI2-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121BI2-120.0000T | Microchip Technology | DSC1121 | 120MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-125.0037T | Microchip Technology | DSC1121 | 125.0037MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-150.0000T | Microchip Technology | DSC1121 | 150MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-150.0000T | Microchip Technology | DSC1121 | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-156.2540T | Microchip Technology | DSC1121 | 156.254MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI2-200.0000T | Microchip Technology | DSC1121 | 200MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-080.0000T | Microchip Technology | DSC1121 | 80MHz | 2.25 V ~ 3.6V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AI2-148.5000 | Microchip Technology | DSC1121 | 148.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-150.0000 | Microchip Technology | DSC1121 | 150MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CL5-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL5-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL5-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL5-048.0000T | Microchip Technology | DSC1121 | 48MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM2-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM2-062.2080 | Microchip Technology | DSC1121 | 62.208MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AL2-020.0000 | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AL2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CM2-024.5454 | Microchip Technology | DSC1121 | 24.5454MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM2-040.0000T | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AM2-010.0000 | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-024.5760 | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-033.3330 | Microchip Technology | DSC1121 | 33.333MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-066.6660 | Microchip Technology | DSC1121 | 66.666MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-027.0000T | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BM2-007.3728 | Microchip Technology | DSC1121 | 7.3728MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121AI5-125.0032 | Microchip Technology | DSC1121 | 125.0032MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121BM1-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121CI1-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI1-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AE1-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CM1-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-075.0000 | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM1-075.0000T | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DM2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121CI5-016.6667 | Microchip Technology | DSC1121 | 16.6667MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-016.6667T | Microchip Technology | DSC1121 | 16.6667MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-027.0000T | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AI2-026.0000 | Microchip Technology | DSC1121 | 26MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-026.0000T | Microchip Technology | DSC1121 | 26MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI5-020.0000 | Microchip Technology | DSC1121 | 26MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI5-020.0000T | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121CI5-066.0000 | Microchip Technology | DSC1121 | 66MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-117.0000 | Microchip Technology | DSC1121 | 117MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-066.0000T | Microchip Technology | DSC1121 | 66MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-117.0000T | Microchip Technology | DSC1121 | 117MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121AM2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE5-022.5792 | Microchip Technology | DSC1121 | 22.5792MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE5-024.5760 | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE5-033.8688 | Microchip Technology | DSC1121 | 33.8688MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-010.0000 | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-010.0000C | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-019.4400 | Microchip Technology | DSC1121 | 19.4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-019.4400C | Microchip Technology | DSC1121 | 19.4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-019.4400T | Microchip Technology | DSC1121 | 19.4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-066.6666 | Microchip Technology | DSC1121 | 66.6666MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-066.6666T | Microchip Technology | DSC1121 | 66.6666MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI5-019.4400C | Microchip Technology | DSC1121 | 19.44MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM1-030.0000 | Microchip Technology | DSC1121 | 30MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI1-075.0000 | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI1-075.0000T | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-013.0000 | Microchip Technology | DSC1121 | 13MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BL2-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BL2-027.0000T | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BL2-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BL2-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-008.0000T | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM1-027.0000 | Microchip Technology | DSC1121 | 27MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM5-016.0000 | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM5-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM5-075.0000 | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BM5-075.0000T | Microchip Technology | DSC1121 | 75MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121CI5-080.0000 | Microchip Technology | DSC1121 | 80MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-080.0000T | Microchip Technology | DSC1121 | 80MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CI5-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-033.3333 | Microchip Technology | DSC1121 | 33.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-033.3333T | Microchip Technology | DSC1121 | 33.3333MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CL2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM5-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM5-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM5-040.0000 | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121CM5-040.0000T | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| DSC1121DI5-010.0000 | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI5-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI5-044.0000T | Microchip Technology | DSC1121 | 44MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI5-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DI5-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL5-090.0000 | Microchip Technology | DSC1121 | 90MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DL5-090.0000T | Microchip Technology | DSC1121 | 90MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM1-050.0000 | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM1-050.0000T | Microchip Technology | DSC1121 | 50MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM2-024.0000 | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM2-024.0000T | Microchip Technology | DSC1121 | 24MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM2-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121DM5-005.0000 | Microchip Technology | DSC1121 | 5MHz | 2.25 V ~ 3.6 V | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| DSC1121NE2-025.0000 | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE5-020.0000 | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE5-020.0000T | Microchip Technology | DSC1121 | 20MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE5-066.6660 | Microchip Technology | DSC1121 | 66.666MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE5-066.6660T | Microchip Technology | DSC1121 | 66.666MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE5-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NE5-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NI2-100.0000 | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NI2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NI2-125.0000 | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121NI2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-008.0000T | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-012.0000T | Microchip Technology | DSC1121 | 12MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-014.3182T | Microchip Technology | DSC1121 | 14.3182MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-016.4000T | Microchip Technology | DSC1121 | 16.4MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-024.5760T | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE1-156.2500T | Microchip Technology | DSC1121 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-025.0000C | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AE2-125.0000T | Microchip Technology | DSC1121 | 125MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-003.6864T | Microchip Technology | DSC1121 | 3.6864MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-008.0000T | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-013.0000T | Microchip Technology | DSC1121 | 13MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-025.0006T | Microchip Technology | DSC1121 | 25.0006MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-062.5000T | Microchip Technology | DSC1121 | 62.5MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-065.5360T | Microchip Technology | DSC1121 | 65.536MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-120.0000T | Microchip Technology | DSC1121 | 120MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-125.0032T | Microchip Technology | DSC1121 | 125.0032MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-125.0037T | Microchip Technology | DSC1121 | 125.0037MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-131.0750T | Microchip Technology | DSC1121 | 131.075MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-156.2500T | Microchip Technology | DSC1121 | 156.25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-163.8400T | Microchip Technology | DSC1121 | 163.84MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-163.8400T-N | Microchip Technology | DSC1121 | 163.84MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI2-165.0000T | Microchip Technology | DSC1121 | 165MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI5-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AI5-019.4400T | Microchip Technology | DSC1121 | 19.44MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM1-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM1-024.5760T | Microchip Technology | DSC1121 | 24.576MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM1-033.0000T | Microchip Technology | DSC1121 | 33MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM1-100.0000T | Microchip Technology | DSC1121 | 100MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-014.7456T | Microchip Technology | DSC1121 | 14.7456MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-025.0000T | Microchip Technology | DSC1121 | 25MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121AM2-040.0000T | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| DSC1121BI1-016.0000T | Microchip Technology | DSC1121 | 16MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI1-026.0000T | Microchip Technology | DSC1121 | 26MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI1-062.5000T | Microchip Technology | DSC1121 | 62.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI1-125.0038T | Microchip Technology | DSC1121 | 125.0038MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-008.0000T | Microchip Technology | DSC1121 | 8MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-010.0000T | Microchip Technology | DSC1121 | 10MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-040.0000T | Microchip Technology | DSC1121 | 40MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-066.6666T | Microchip Technology | DSC1121 | 66.6666MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-148.5000T | Microchip Technology | DSC1121 | 148.5MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-153.6000T | Microchip Technology | DSC1121 | 153.6MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI2-156.2539T | Microchip Technology | DSC1121 | 156.2539MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| DSC1121BI5-148.3516T | Microchip Technology | DSC1121 | 148.3516MHz | 2.25 V ~ 3.6 V | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
.jpg)
.jpg)
SHENZHEN YIJIN ELECTRONICS CO;LTD
电话：0755-27876565
手机：18924600166
QQ：857950243
邮箱：yijindz@163.com
网站：http://m.hneyq.com
地址：广东省深圳市宝安区新安107国道旁
销售代表
