更多>>Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH
- 頻率：20
- 尺寸：2520mm
- 應 用： Q20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH，歐美進口晶振，4墊版本2.5x2.0mmn10ppm類型可用，EMI屏蔽可能通過接地蓋，回流焊溫度：260Cmax。陶瓷/金屬包裝。SMD石英晶體JXS22Q20.0-JXS22-8-10/15-T1-FU-...
-
-
.jpg)

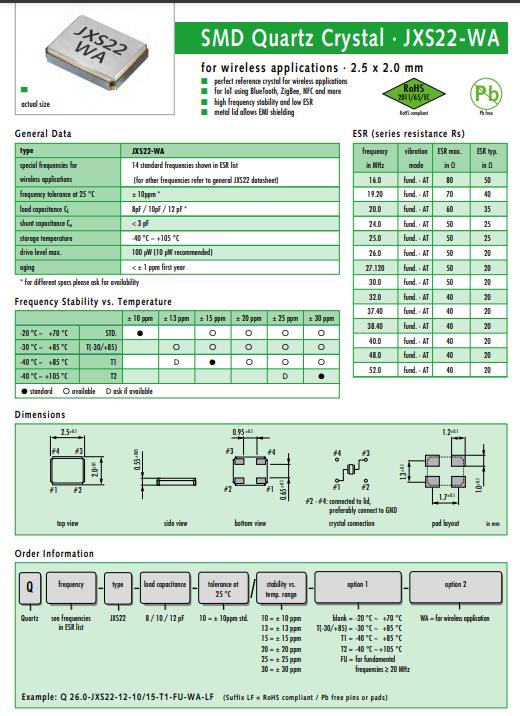

Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH，歐美進口晶振，4墊版本·2.5 x 2.0 mm n ± 10 ppm類型可用，EMI屏蔽可能通過接地蓋，回流焊溫度： 260°C max。陶瓷/金屬包裝。SMD石英晶體·JXS22
Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH
| type | JXS22 | |||||||||
| frequency range | 12.0 ~ 54.0 MHz (fund. AT-cut) | |||||||||
| frequency tolerance at 25 °C | ± 10 ppm / ± 30 ppm | |||||||||
| load capacitance CL | 12 pF standard (option: 8 pF ~ 30 pF / series) | |||||||||
| shunt capacitance Co | < 5 pF | |||||||||
| storage temperature | -40 °C ~ +90 °C | |||||||||
| drive level max. | 100 µW (10 µW recommended) | |||||||||
| aging | < ± 3 ppm first year (< ± 1 ppm for tol. ± 10 ppm) | |||||||||
.jpg)

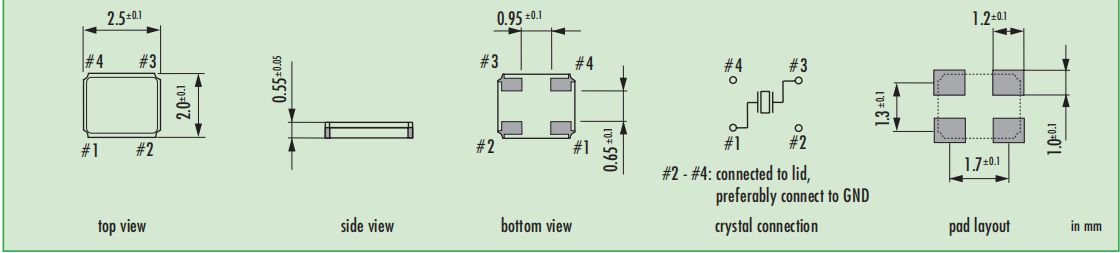

Q 20.0-JXS22-8-10/15-T1-FU-WA-LF|20MHz|8PF|2520|JAUCH
| JAUCH原廠編碼 | 生產廠商 | 型號 | 頻率 | 頻率偏差 | 負載電荷 |
| Q 19.2-JXS22-10-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 10pF |
| Q 19.2-JXS22-12-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 12pF |
| Q 19.2-JXS22-8-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 8pF |
| Q 19.2-JXS22-9-10/10-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 9pF |
| Q 20.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 10pF |
| Q 20.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 12pF |
| Q 20.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 8pF |
| Q 20.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 9pF |
| Q 24.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 10pF |
| Q 24.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 12pF |
| Q 24.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 8pF |
| Q 24.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 9pF |
| Q 26.0-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 10pF |
| Q 26.0-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 12pF |
| Q 26.0-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 8pF |
| Q 26.0-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 9pF |
| Q 27.12-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 10pF |
| Q 27.12-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 12pF |
| Q 27.12-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 8pF |
| Q 27.12-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 9pF |
| Q 16.0-JXS22-10-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 10pF |
| Q 16.0-JXS22-12-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 12pF |
| Q 16.0-JXS22-8-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 8pF |
| Q 16.0-JXS22-9-10/10-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 9pF |
| Q 19.2-JXS22-10-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 10pF |
| Q 19.2-JXS22-12-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 12pF |
| Q 19.2-JXS22-8-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 8pF |
| Q 19.2-JXS22-9-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 19.2MHz | ±10ppm | 9pF |
| Q 20.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 10pF |
| Q 20.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 12pF |
| Q 20.0-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 8pF |
| Q 20.0-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 20MHz | ±10ppm | 9pF |
| Q 24.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 10pF |
| Q 24.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 12pF |
| Q 24.0-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 8pF |
| Q 24.0-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 24MHz | ±10ppm | 9pF |
| Q 26.0-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 10pF |
| Q 26.0-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 12pF |
| Q 26.0-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 8pF |
| Q 26.0-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 26MHz | ±10ppm | 9pF |
| Q 27.12-JXS22-10-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 10pF |
| Q 27.12-JXS22-12-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 12pF |
| Q 27.12-JXS22-8-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 8pF |
| Q 27.12-JXS22-9-10/15-T1-FU-WA-LF | Jauch Quartz | JXS22-WA | 27.12MHz | ±10ppm | 9pF |
| Q 16.0-JXS22-10-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 10pF |
| Q 16.0-JXS22-12-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 12pF |
| Q 16.0-JXS22-8-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 8pF |
| Q 16.0-JXS22-9-10/15-T1-WA-LF | Jauch Quartz | JXS22-WA | 16MHz | ±10ppm | 9pF |
| Q 38.4-JXS22-10-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 10pF |
| Q 38.4-JXS22-12-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 12pF |
| Q 38.4-JXS22-8-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 8pF |
| Q 38.4-JXS22-9-10/10-FU-WA-LF | Jauch Quartz | JXS22-WA | 38.4MHz | ±10ppm | 9pF |
