首頁歐美晶振 ILSI晶振美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器

美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器

頻率：38.4MHz
尺寸：2.0×1.6mm
應　用： 美國進口晶振,ILSI晶振,ISM20貼片振蕩器,有源晶振,ISM20-3253FH-38.400 MHz晶振,2016mm晶振,石英晶振,四腳封裝晶振,SMD晶體,頻率38.4MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性20ppm,輕薄小晶振,低電壓晶振,高穩定性...

美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器,美國進口晶振,ILSI晶振,ISM20貼片振蕩器,有源晶振,ISM20-3253FH-38.400 MHz晶振,2016mm晶振,石英晶振,四腳封裝晶振,SMD晶體,頻率38.4MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性20ppm,輕薄小晶振,低電壓晶振,高穩定性晶振,便攜式設備晶振,Sonet/SDH晶振,無線局域網晶振,顯示和控制面板晶振.
美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器特點
●超小型封裝
●支持三態功能
●通過無鉛認證
●兼容無鉛加工

美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器規格表

Frequency

38.4 MHz

Frequency Stability (Note 1)

20ppm

Supply Voltage ±5% (Vcc)

3.3V

Supply Current

4.0 mA

Output Levels
Logic “0”
Logic “1”

CMOS
Less than 10% of Supply Voltage
Greater than 90% of Supply Voltage

Symmetry (50% of waveform)

See Part Number Guide

Rise / Fall Time (20% to 80%)

6 nSec max

Output Load

See Part Number Guide

Load

15pF

Start Up Time

10 mSec max

Temperature Range
Operating Temperature
Storage

See Part Number Guide
-55ºC to + 125ºC

Tri-state Function (H)

Voh = 70% of Vdd min or No Connection to Enable
Output
Vol = 30% of Vdd max or grounded to Disable Output (High Impedance)

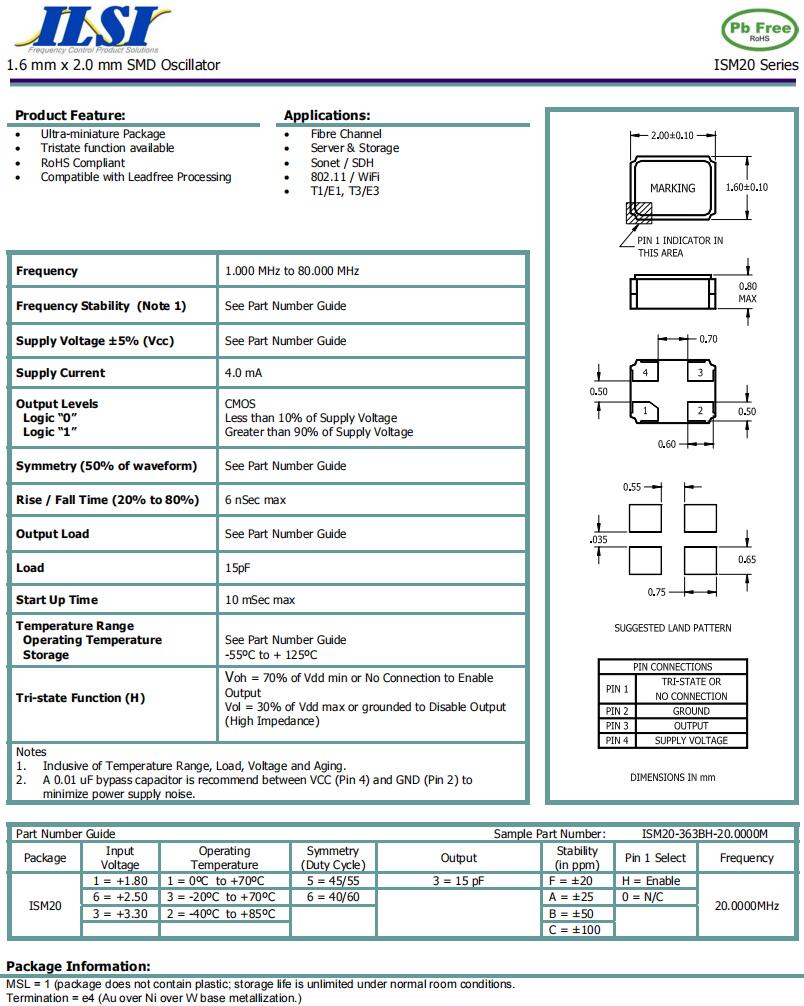

美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器尺寸圖

原廠編碼	品牌	型號	工作溫度	頻率	頻率容差	負載
HC49USM-BA1F12- 24.000 MHz	ILSI	HC49USM	0°C ~ 70°C	24 MHz	±50ppm	12 pF
HC49USM-BA3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±50ppm	18 pF
HC49USM-BA5F18- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±50ppm	18 pF
HC49USM-BB3F10- 13.52313 MHz	ILSI	HC49USM	-20°C ~ 70°C	13.52313 MHz	±50ppm	10 pF
HC49USM-BB5F20- 11.0592 MHz	ILSI	HC49USM	-40°C ~ 85°C	11.0592 MHz	±50ppm	20 pF
HC49USM-FB1F18- 8.000 MHz	ILSI	HC49USM	0°C ~ 70°C	8 MHz	±30ppm	18 pF
HC49USM-FB1F18- 28.224 MHz	ILSI	HC49USM	0°C ~ 70°C	28.224 MHz	±30ppm	18 pF
HC49USM-FB1F20- 3.6864 MHz	ILSI	HC49USM	0°C ~ 70°C	3.6864 MHz	±30ppm	20 pF
HC49USM-FB2F30- 4.000 MHz	ILSI	HC49USM	-10°C ~ 60°C	4 MHz	±30ppm	30 pF
HC49USM-FB2F30- 8.000 MHz	ILSI	HC49USM	-10°C ~ 60°C	8 MHz	±30ppm	30 pF
HC49USM-FB3F10- 9.650 MHz	ILSI	HC49USM	-20°C ~ 70°C	9.65 MHz	±30ppm	10 pF
HC49USM-FB3F18- 4.545 MHz	ILSI	HC49USM	-20°C ~ 70°C	4.545 MHz	±30ppm	18 pF
HC49USM-FB3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	18 pF
HC49USM-FB3F18- 25.175 MHz	ILSI	HC49USM	-20°C ~ 70°C	25.175 MHz	±30ppm	18 pF
HC49USM-FB3F20- 6.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	6 MHz	±30ppm	20 pF
HC49USM-FB3F20- 8.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	8 MHz	±30ppm	20 pF
HC49USM-FB3F20- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	20 pF
HC49USM-FB5F18- 3.579545 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.579545 MHz	±30ppm	18 pF
HC49USM-FB5F18- 4.194304 MHz	ILSI	HC49USM	-40°C ~ 85°C	4.194304 MHz	±30ppm	18 pF
HC49USM-FB5F18- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
HC49USM-FB5F18- 20.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
HC49USM-FB5F20- 3.6864 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.6864 MHz	±30ppm	20 pF
HC49USM-FB5F20- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±30ppm	20 pF
HC49USM-FB5F20- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	20 pF
HC49USM-FB5F20- 12.288 MHz	ILSI	HC49USM	-40°C ~ 85°C	12.288 MHz	±30ppm	20 pF
HC49USM-FB5F20- 16.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	16 MHz	±30ppm	20 pF
HC49USM-FF3F18- 3.6864 MHz	ILSI	HC49USM	-20°C ~ 70°C	3.6864 MHz	±30ppm	18 pF
HC49USM-FF3F18- 4.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	4 MHz	±30ppm	18 pF
HC49USM-FF3F18- 4.9152 MHz	ILSI	HC49USM	-20°C ~ 70°C	4.9152 MHz	±30ppm	18 pF
HC49USM-FF3F18- 6.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	6 MHz	±30ppm	18 pF
HC49USM-FF3F18- 6.144 MHz	ILSI	HC49USM	-20°C ~ 70°C	6.144 MHz	±30ppm	18 pF
HC49USM-FF3F18- 7.3728 MHz	ILSI	HC49USM	-20°C ~ 70°C	7.3728 MHz	±30ppm	18 pF
HC49USM-FF3F18- 8.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	8 MHz	±30ppm	18 pF
HC49USM-FF3F18- 11.0592 MHz	ILSI	HC49USM	-20°C ~ 70°C	11.0592 MHz	±30ppm	18 pF
HC49USM-FF3F18- 12.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	12 MHz	±30ppm	18 pF
HC49USM-FF3F18- 14.7456 MHz	ILSI	HC49USM	-20°C ~ 70°C	14.7456 MHz	±30ppm	18 pF
HC49USM-FF3F18- 16.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	16 MHz	±30ppm	18 pF
HC49USM-FF3F18- 18.432 MHz	ILSI	HC49USM	-20°C ~ 70°C	18.432 MHz	±30ppm	18 pF
HC49USM-FF3F18- 20.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	20 MHz	±30ppm	18 pF
HC49USM-FF3F18- 25.000 MHz	ILSI	HC49USM	-20°C ~ 70°C	25 MHz	±30ppm	18 pF
HC49USM-FF3F18- 9.909116 MHz	ILSI	HC49USM	-20°C ~ 70°C	9.909116 MHz	±30ppm	18 pF
HC49USM-FF5F10- 9.81713 MHz	ILSI	HC49USM	-40°C ~ 85°C	9.81713 MHz	±30ppm	10 pF
HC49USM-FF5F18- 3.6864 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.6864 MHz	±30ppm	18 pF
HC49USM-FF5F18- 3.93216 MHz	ILSI	HC49USM	-40°C ~ 85°C	3.93216 MHz	±30ppm	18 pF
HC49USM-FF5F18- 4.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	4 MHz	±30ppm	18 pF
HC49USM-FF5F18- 6.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	6 MHz	±30ppm	18 pF
HC49USM-FF5F18- 7.3728 MHz	ILSI	HC49USM	-40°C ~ 85°C	7.3728 MHz	±30ppm	18 pF
HC49USM-FF5F18- 8.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	8 MHz	±30ppm	18 pF
HC49USM-FF5F18- 10.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	10 MHz	±30ppm	18 pF
HC49USM-FF5F18- 11.0592 MHz	ILSI	HC49USM	-40°C ~ 85°C	11.0592 MHz	±30ppm	18 pF
HC49USM-FF5F18- 12.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
HC49USM-FF5F18- 14.7456 MHz	ILSI	HC49USM	-40°C ~ 85°C	14.7456 MHz	±30ppm	18 pF
HC49USM-FF5F18- 16.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
HC49USM-FF5F18- 18.432 MHz	ILSI	HC49USM	-40°C ~ 85°C	18.432 MHz	±30ppm	18 pF
HC49USM-FF5F18- 20.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
HC49USM-FF5F18- 25.000 MHz	ILSI	HC49USM	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
IL3X-HX5F12.5- 32.768 KHz	ILSI	IL3X	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
IL3X2-HX5F12.5- 32.768 KHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	12.5 pF
IL3X2-HX5F6- 32.768 KHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	6 pF
IL3X2-HX5F7- 32.768 kHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	7 pF
IL3X2-HX5F9- 32.768 kHz	ILSI	IL3X2	-40°C ~ 85°C	32.768 kHz	±20ppm	9 pF
ILCX04-FB1F18- 27.000 MHz	ILSI	ILCX04	0°C ~ 70°C	27 MHz	±30ppm	18 pF
ILCX04-FB1F18- 28.224 MHz	ILSI	ILCX04	0°C ~ 70°C	28.224 MHz	±30ppm	18 pF
ILCX04-FB3F18- 7.3728 MHz	ILSI	ILCX04	-20°C ~ 70°C	7.3728 MHz	±30ppm	18 pF
ILCX04-FB5F20- 22.1184 MHz	ILSI	ILCX04	-40°C ~ 85°C	22.1184 MHz	±30ppm	20 pF
ILCX04-FB5F20- 25.000 MHz	ILSI	ILCX04	-40°C ~ 85°C	25 MHz	±30ppm	20 pF
ILCX04-FB5F20- 6.000 MHz	ILSI	ILCX04	-40°C ~ 85°C	6 MHz	±30ppm	20 pF
ILCX04-FF1F20- 8.000 MHz	ILSI	ILCX04	0°C ~ 70°C	8 MHz	±30ppm	20 pF
ILCX04-JH5F18- 8.000 MHz	ILSI	ILCX04	-40°C ~ 85°C	8 MHz	±10ppm	18 pF
ILCX07-BB3F12- 16.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	16 MHz	±50ppm	12 pF
ILCX07-FB3F13-16.000MHz	ILSI	ILCX07	-20°C ~ 70°C	16 MHz	±30ppm	13 pF
ILCX07-FB5F12- 20.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	20 MHz	±30ppm	12 pF
ILCX07-FF1F20- 25.000 MHz	ILSI	ILCX07	0°C ~ 70°C	25 MHz	±30ppm	20 pF
ILCX07-FF3F16- 9.984 MHz	ILSI	ILCX07	-20°C ~ 70°C	9.984 MHz	±30ppm	16 pF
ILCX07-FF3F16- 10.78125 MHz	ILSI	ILCX07	-20°C ~ 70°C	10.78125 MHz	±30ppm	16 pF
ILCX07-FF3F16- 13.560 MHz	ILSI	ILCX07	-20°C ~ 70°C	13.56 MHz	±30ppm	16 pF
ILCX07-FF5F12.5-8.000MHz	ILSI	ILCX07	-40°C ~ 85°C	8 MHz	±30ppm	12 pF
ILCX07-FF5F18- 24.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	24 MHz	±30ppm	18 pF
ILCX07-FF5F18- 25.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX07-FF5F20- 25.000 MHz	ILSI	ILCX07	-40°C ~ 85°C	25 MHz	±30ppm	20 pF
ILCX07-HB3F18- 20.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	20 MHz	±20ppm	18 pF
ILCX07-HB3F18- 27.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	27 MHz	±20ppm	18 pF
ILCX07-JJ2F10- 8.000 MHz	ILSI	ILCX07	-10°C ~ 60°C	8 MHz	±10ppm	10 pF
ILCX07-JJ3F10- 12.000 MHz	ILSI	ILCX07	-20°C ~ 70°C	12 MHz	±10ppm	10 pF
ILCX07A-FB1F12- 18.432 MHz	ILSI	ILCX07A	0°C ~ 70°C	18.432 MHz	±30ppm	12 pF
ILCX07A-FB3F18- 12.000 MHz	ILSI	ILCX07A	-20°C ~ 70°C	12 MHz	±30ppm	18 pF
ILCX07B-FB1F18- 14.7456 MHz	ILSI	ILCX07B	0°C ~ 70°C	14.7456 MHz	±30ppm	18 pF
ILCX07B-FB1F18-27.120MHz	ILSI	ILCX07B	0°C ~ 70°C	27.12 MHz	±30ppm	18 pF
ILCX07B-FB5F20- 29.4912 MHz	ILSI	ILCX07B	-40°C ~ 85°C	29.4912 MHz	±30ppm	20 pF
ILCX08-HH5F18- 8.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	8 MHz	±20ppm	18 pF
ILCX08-JG5F18- 24.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	24 MHz	±10ppm	18 pF
ILCX08-JH5F18- 8.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	8 MHz	±10ppm	18 pF
ILCX08-JH5F18- 16.000 MHz	ILSI	ILCX08	-40°C ~ 85°C	16 MHz	±10ppm	18 pF
ILCX13-BB5F10- 12.000000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±50ppm	10 pF
ILCX13-BB5F10- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±50ppm	10 pF
ILCX13-BB5F10- 49.152 MHz	ILSI	ILCX13	-40°C ~ 85°C	49.152 MHz	±50ppm	10 pF
ILCX13-BH3F18- 12.000 MHZ	ILSI	ILCX13	-20°C ~ 70°C	12 MHz	±50ppm	18 pF
ILCX13-FB5F15- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±30ppm	15 pF
ILCX13-FB5F18- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
ILCX13-FB5F18- 16.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
ILCX13-FB5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±30ppm	18 pF
ILCX13-FB5F18- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX13-FF3F10- 12.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	12 MHz	±30ppm	10 pF
ILCX13-FF3F8- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±30ppm	8 pF
ILCX13-FF5F18- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±30ppm	18 pF
ILCX13-FF5F18- 16.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
ILCX13-FF5F18- 20.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	20 MHz	±30ppm	18 pF
ILCX13-FF5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±30ppm	18 pF
ILCX13-FF5F18- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX13-FF5F18- 32.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	32 MHz	±30ppm	18 pF
ILCX13-HB3F18- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±20ppm	18 pF
ILCX13-HB3F18- 32.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	32 MHz	±20ppm	18 pF
ILCX13-HF3F18- 12.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	12 MHz	±20ppm	18 pF
ILCX13-HF3F18- 25.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	25 MHz	±20ppm	18 pF
ILCX13-HF5F10- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±20ppm	10 pF
ILCX13-HF5F12- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±20ppm	12 pF
ILCX13-HF5F12- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±20ppm	12 pF
ILCX13-HF5F18- 12.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	12 MHz	±20ppm	18 pF
ILCX13-HF5F18- 16.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	16 MHz	±20ppm	18 pF
ILCX13-HF5F18- 22.1184 MHz	ILSI	ILCX13	-40°C ~ 85°C	22.1184 MHz	±20ppm	18 pF
ILCX13-HF5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±20ppm	18 pF
ILCX13-HF5F18- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±20ppm	18 pF
ILCX13-HF5F18- 48.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	48 MHz	±20ppm	18 pF
ILCX13-HG5F19 -50.2232 MHz	ILSI	ILCX13	-40°C ~ 85°C	50.2232 MHz	±20ppm	19 pF
ILCX13-HH3F18- 25.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	25 MHz	±20ppm	18 pF
ILCX13-HH3F18- 27.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	27 MHz	±20ppm	18 pF
ILCX13-HH3F8- 10.77938 MHz	ILSI	ILCX13	-20°C ~ 70°C	10.77938 MHz	±20ppm	8 pF
ILCX13-HH3F8- 10.78125 MHz	ILSI	ILCX13	-20°C ~ 70°C	10.78125 MHz	±20ppm	8 pF
ILCX13-HH5F18- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±20ppm	18 pF
ILCX13-IH1F12- 24.000 MHz	ILSI	ILCX13	0°C ~ 70°C	24 MHz	±15ppm	12 pF
ILCX13-IH1F12- 25.000 MHz	ILSI	ILCX13	0°C ~ 70°C	25 MHz	±15ppm	12 pF
ILCX13-II3F8- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±15ppm	8 pF
ILCX13-II5F8- 40.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	40 MHz	±15ppm	8 pF
ILCX13-JH5F8-39.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	39 MHz	±10ppm	8 pF
ILCX13-JI1F9- 32.000 MHz	ILSI	ILCX13	0°C ~ 70°C	32 MHz	±10ppm	9 pF
ILCX13-JI5F10- 25.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	25 MHz	±10ppm	10 pF
ILCX13-JI5F8- 32.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	32 MHz	±10ppm	8 pF
ILCX13-JI5F9- 24.000 MHz	ILSI	ILCX13	-40°C ~ 85°C	24 MHz	±10ppm	9 pF
ILCX13-JJ2F10-30.000 MHz	ILSI	ILCX13	-10°C ~ 60°C	30 MHz	±10ppm	10 pF
ILCX13-JJ2F7- 16.000 MHz	ILSI	ILCX13	-10°C ~ 60°C	16 MHz	±10ppm	7 pF
ILCX13-JJ3F10- 16.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	16 MHz	±10ppm	10 pF
ILCX13-JJ3F10- 32.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	32 MHz	±10ppm	10 pF
ILCX13-JJ3F16- 16.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	16 MHz	±10ppm	16 pF
ILCX13-JJ3F4- 24.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	24 MHz	±10ppm	4 pF
ILCX13-JJ3F9- 16.000 MHz	ILSI	ILCX13	-20°C ~ 70°C	16 MHz	±10ppm	9 pF
ILCX18-FF3F18- 25.000 MHz	ILSI	ILCX18	-20°C ~ 70°C	25 MHz	±30ppm	18 pF
ILCX18-FF5F18- 16.000 MHz	ILSI	ILCX18	-40°C ~ 85°C	16 MHz	±30ppm	18 pF
ILCX18-FF5F18- 25.000 MHz	ILSI	ILCX18	-40°C ~ 85°C	25 MHz	±30ppm	18 pF
ILCX18-JI5F8- 32.000 MHz	ILSI	ILCX18	-40°C ~ 85°C	32 MHz	±10ppm	8 pF

公司：深圳市億金電子有限公司
SHENZHEN YIJIN ELECTRONICS CO;LTD
電話：0755-27876565
手機：18924600166
QQ：857950243
郵箱：yijindz@163.com
網站：http://m.hneyq.com
地址：廣東省深圳市寶安區新安107國道旁

企業博客

美國ILSI晶振|ISM20-3253FH-38.400 MHz|2016mm振蕩器

相關產品
