首頁歐美晶振 ILSI晶振ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振

頻率：32MHz
尺寸：3.2×2.5mm
應　用： 美國進口晶振,ILSI晶振,ISA16有源晶振,貼片石英晶振,ISA16-32AH-32.000 MHz晶振,3225mm晶振,石英晶體振蕩器,四腳封裝晶振,頻率32MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,小體積晶振,高品質晶振,高穩定性晶振...

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振,美國進口晶振,ILSI晶振,ISA16有源晶振,貼片石英晶振,ISA16-32AH-32.000 MHz晶振,3225mm晶振,石英晶體振蕩器,四腳封裝晶振,頻率32MHz,電壓3.3V,工作溫度-40~85°C,頻率穩定性25ppm,小體積晶振,高品質晶振,高穩定性晶振,照相機晶振,微處理器晶振,網絡附屬存儲晶振,數字設備晶振.
ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振特點
●通過AEC-Q200認證
●通過TS16949認證的生產線
●LVCMOS兼容輸出
●行業標準包裝3.2mm x 2.5mm
●五種電源電壓選擇，1.8V, 2.5V, 2.8V, 3.0V或3.3V
●無鉛、無鹵、無銻
●符合RoHS和REACH標準

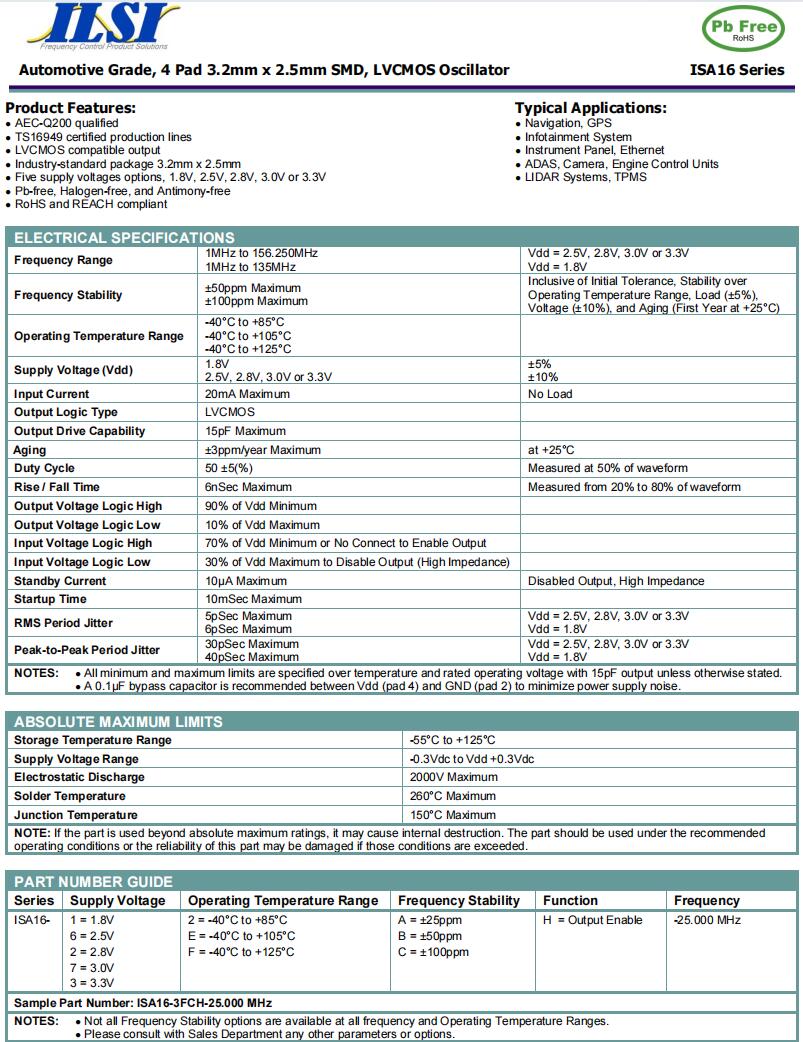

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振規格表

Frequency Range

32 MHz

Frequency Stability

±50ppm Maximum
±100ppm Maximum

Inclusive of Initial Tolerance, Stability over Operating Temperature Range, Load (±5%), Voltage (±10%), and Aging (First Year at +25°C)

Operating Temperature Range

-40°C to +85°C
-40°C to +105°C
-40°C to +125°C

Supply Voltage (Vdd)

1.8V
2.5V, 2.8V, 3.0V or 3.3V

±5%
±10%

Input Current

20mA Maximum

No Load

Output Logic Type

LVCMOS

Output Drive Capability

15pF Maximum

Aging

±3ppm/year Maximum

at +25°C

Duty Cycle

50 ±5(%)

Measured at 50% of waveform

Rise / Fall Time

6nSec Maximum

Measured from 20% to 80% of waveform

Output Voltage Logic High

90% of Vdd Minimum

Output Voltage Logic Low

10% of Vdd Maximum

Input Voltage Logic High

70% of Vdd Minimum or No Connect to Enable Output

Input Voltage Logic Low

30% of Vdd Maximum to Disable Output (High Impedance)

Standby Current

10µA Maximum

Disabled Output, High Impedance

Startup Time

10mSec Maximum

RMS Period Jitter

5pSec Maximum
6pSec Maximum

Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V

Peak-to-Peak Period Jitter

30pSec Maximum
40pSec Maximum

Vdd = 2.5V, 2.8V, 3.0V or 3.3V
Vdd = 1.8V

NOTES: ● All minimum and maximum limits are specified over temperature and rated operating voltage with 15pF output unless otherwise stated.
● A 0.1µF bypass capacitor is recommended between Vdd (pad 4) and GND (pad 2) to minimize power supply noise.

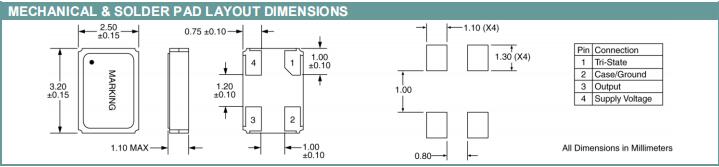

ILSI有源晶振|ISA16-32AH-32.000 MHz|3225mm晶振尺寸圖
