首页进口晶振爱普生晶振X1G004171001900|2520|12.288MHz|15PF|50PPM|SG210STF

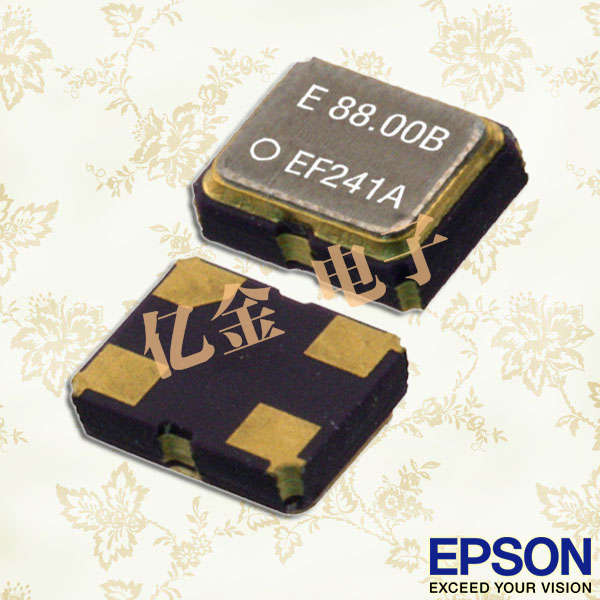

X1G004171001900|2520|12.288MHz|15PF|50PPM|SG210STF

频率：12.288MHz
尺寸：2520mm
应　用： X1G004171001900|2520|12.288MHz|15PF|50PPM|SG210STF，日本爱普生晶振,爱普生的SGxxxxCAN和SG-210STF是简单封装的晶体振荡器（SPXO）系列与CMOS输出。这些SPXO是物联网、可穿戴设备、医疗、工业自动化等各种应用的理...

X1G004171001900|2520|12.288MHz|15PF|50PPM|SG210STF，日本爱普生晶振,

爱普生的SG xxxx CAN和SG-210STF是简单封装的晶体振荡器（SPXO）系列与CMOS输出。

这些SPXO是物联网、可穿戴设备、医疗、工业自动化等各种应用的理想选择。

这些SPXO具有低电流消耗，宽工作电压从1.

6V至3.

63V和广泛的工作温度范围从-40°C到85°C，此外，可操作高达105°C。

这些SPXO有五种不同的包装尺寸，从2.

0 × 1.

6毫米至7.

0 × 5.

0毫米，可在标准销出。物联网，可穿戴设备，数据存储中心，医疗，工业自动化。

X1G004171001900|2520|12.288MHz|15PF|50PPM|SG210STF

参数	符号	规格			单位	条件
		Min.	Typ.	Max.
电源电压	VCC	1.60	-	3.63	V	-
	GND	0	-	0	V	-
工作温度范围	T_use	--40	-	+85	°C	-
CMOS负载条件	L_CMOS	-	-	15	pF	-
输出频率	fo	-	12.288000	-	MHz	-
频率公差 *1	f_tol	--50	-	+50	×10-6	T use
频率老化	f_age	--3	-	+3	×10-6	+25 ºC, First year
起动时间	t_str	-	-	3.0	ms	t = 0 at 90 % Vcc
日常消耗	ICC	-	-	1.8	mA	No load condition, Vcc = 3.3 V
维持电流	I_std	-	-	2.7	μA	= GND, Vcc = 3.3 V
输出电压	VOH	90 % Vcc	-	-	V	Io? = -4 mA @Vcc = 3.3 V
	VOL	-	-	10 % Vcc	V	Io? = 4 mA @Vcc = 3.3 V
上升时间	tr	-	-	3.5	ns	20 % Vcc to 80 % Vcc Level, L_CMOS = 15 pF, Vcc = 1.8 V ± 10 %
下降时间	tf	-	-	3.5	ns	80 % Vcc to 20 % Vcc Level, L_CMOS = 15 pF, Vcc = 1.8 V ± 10 %
对称	SYM	45	-	55	%	50 % Vcc Level, L_CMOS ≤ 15 pF
输入电压	VIH	80 % Vcc	-	-	V	terminal
	VIL	-	-	20 % Vcc	V	terminal
输出禁用时间 (ST)	tstp_st	-	-	100	ns	terminal HIGH → LOW
输出启用时间 (ST)	tsta_st	-	-	3	ms	terminal LOW → HIGH

X1G004171001900|2520|12.288MHz|15PF|50PPM|SG210STF

SG-210STF

编码	型号	频率	尺寸	工作温度
X1G0041710002	SG-210STF	33.300000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710005	SG-210STF	1.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710006	SG-210STF	1.843200 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710007	SG-210STF	2.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710008	SG-210STF	3.686400 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710009	SG-210STF	4.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710010	SG-210STF	4.096000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710011	SG-210STF	5.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710012	SG-210STF	6.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710013	SG-210STF	6.144000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710014	SG-210STF	7.372800 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710015	SG-210STF	8.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710016	SG-210STF	10.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710017	SG-210STF	11.289600 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710018	SG-210STF	12.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710019	SG-210STF	12.288000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710020	SG-210STF	12.500000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710021	SG-210STF	13.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710022	SG-210STF	13.500000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710023	SG-210STF	13.560000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710024	SG-210STF	14.318180 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710025	SG-210STF	14.745600 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710026	SG-210STF	15.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710027	SG-210STF	16.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710028	SG-210STF	19.200000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710029	SG-210STF	20.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710030	SG-210STF	22.579200 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710031	SG-210STF	24.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710032	SG-210STF	24.576000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710033	SG-210STF	25.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710034	SG-210STF	26.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710035	SG-210STF	27.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710036	SG-210STF	27.120000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710037	SG-210STF	28.636360 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710038	SG-210STF	29.491200 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710039	SG-210STF	30.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710040	SG-210STF	32.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710041	SG-210STF	33.333000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710042	SG-210STF	36.000000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
X1G0041710043	SG-210STF	37.400000 MHz	2.50 x 2.00 x 0.90 mm	-40 to 85 °C
