EA5070MA14-26.000M晶振   参数表

日蚀晶振规格	单位	日蚀贴片晶振频率范围	石英晶振基本条件
标准频率	f_nom	26.0MHZ	标准频率
储存温度	T_stg	-40°C ～ +125°C	裸存
工作温度	T_use	-40°C ～ +85°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±15 × 10-6 (标准)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,0755-27876565
频率温度特征	f_tem	±15 × 10-6/-40°C ～ +85°C	超出标准的规格请联系我们.
负载电容	CL	7PF	超出标准说明,请联系我们.
串联电阻(ESR)	R1	100μW	-40°C —  +85°C, DL = 100μW
频率老化	f_age	±3 × 10-6 / year Max.	+25°C,第一年

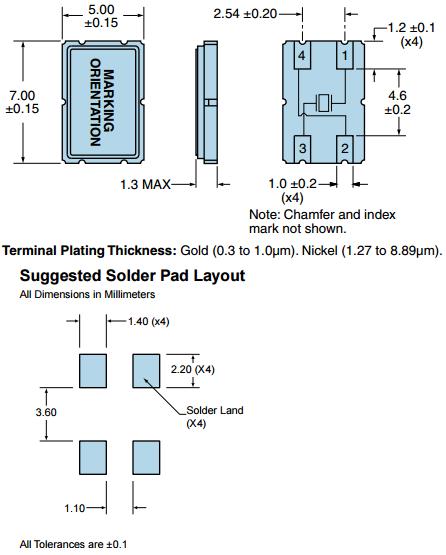

Ecliptek晶振EA5070,EA5070MA14-26.000M石英贴片晶振   尺寸图


        日蚀集团公司将关注所有环境适用的法律、法规和协议的遵守情况.另外为更有效的进行环境保护,将建立自己的特有的环境标准.
        日蚀集团将在各领域内的商务运作中实施持续改进,包括能源资源的保持,回收再利用以及减少废弃物等.Ecliptek晶振EA5070,EA5070MA14-26.000M石英贴片晶振
        尽可能的采用无害的石英晶振, 晶体振荡器,有源晶振压电石英晶体元器件、压电石英晶体的原材料和生产技术,避免有害物质的产生,比如消耗臭氧层物质、温室气体及其它污染物.集团公司同时将致力于这些物质的收集和回收,最小化有害原料的使用.
        根据需要,提高环境技术、材料和晶振晶体,石英振荡器产品的发展信息及环境管理活动的公开性.
        日蚀晶振公司将有效率的使用自然资源和能源,以便从源头减少废物产生和排放.我们将在关注于预防环境和安全事故,保护公众健康的同时,努力改进我们的操作.我公司将积极参与加强公众环境、健康和安全意识的活动,提高公众对普遍的环境、健康和安全问题的注意.
        所有的经营组织都将积极应用国际标准以及适用的法律法规.为促进合理有效的公共政策的制订实施加强战略联系.
        消除事故和环境方面的偶发事件,减少废物的产生和排放,有效的使用能源和各种自然资源,对紧急事件做好充分准备,以便及时做出反应.Ecliptek晶振EA5070,EA5070MA14-26.000M石英贴片晶振
        对我们的有源晶振,压控振荡器,贴片石英晶振, 晶体谐振器、普通晶体振荡器（SPXO）、压控晶体振荡器（VCXO）进行检验,同时告知我们的员工顾客以及公众,如何安全的使用,如何使用对环境影响较小,帮助我们的雇员合同方商业伙伴服务提供上理解他们的行为如何影响着环境.

Part Number	Cut/Mode	Package Description	Frequency Stability	Operating Temperature Range	Aging	Shunt Capacitance
EA5070KA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070KAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070LA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA16-6.000M	欧美进口晶振	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070LAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070MA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070MA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070MA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070MA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070MA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070MA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-40°C to +85°C	±3ppm	7pF Maximum
