日蚀晶振规格	单位	日蚀贴片晶振频率范围	石英晶振基本条件
标准频率	f_nom	27.0MHZ	标准频率
储存温度	T_stg	-40°C ～ +125°C	裸存
工作温度	T_use	-0°C ～ +70°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±15 × 10-6 (标准), (±10 × 10-6 ～ ±30 × 10-6 可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,0755-27876565
频率温度特征	f_tem	±100 × 10-6/-40°C ～ +85°C	超出标准的规格请联系我们.
负载电容	CL	7PF	超出标准说明,请联系我们.
串联电阻(ESR)	R1	100μW	-40°C —  +85°C, DL = 100μW
频率老化	f_age	±3 × 10-6 / year Max.	+25°C,第一年

日蚀晶振集团环保基本理念：
        1.作为良好的企业市民,遵循本公司的行动方针,充分关心维护地球环境.遵守国内外的有关环保法规.
        2.保护自然环境,充分关注自然生态等方面的环境保护,维持和保全生物多样性.
        3.有效利用资源和能源,认识到资源和能源的有限性,努力进行有效利用.
        4为构建循环型社会做出贡献,致力于减少石英晶体,贴片晶振,有源晶体振荡器材料的废弃物及废弃物的再利用核再生循环,努力构建循环型社会.
        5.推进环保型业务,充分发挥综合实力,推进环保型业务,为减轻社会的环境负荷做出贡献.
        6.建立环境管理系统,充分运用环境管理系统,设定环境目的和目标,定期修正,不断改善,努力预防环境污染.
        日蚀晶振集团将建立可行的技术及经济性环境目标,并确保其环境保护活动的质量.
        集团公司将关注所有环境适用的法律、法规和协议的遵守情况.另外为更有效的进行环境保护,将建立自己的特有的环境标准.
        集团将在各领域内的商务运作中实施持续改进,包括能源资源的保持,回收再利用以及减少废弃物等.

欧美进口晶振编码	Cut/Mode	Package Description	Frequency Stability	Operating Temperature Range	Aging	Shunt Capacitance
EA5070CA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±50ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070CA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±50ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070CA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±50ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070CA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±50ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070CAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±50ppm	-40°C to +85°C	±3ppm	7pF Maximum
EA5070NA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070NAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	0°C to +70°C	±3ppm	7pF Maximum
EA5070PA12-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA14-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA16-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA18-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA20-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA22-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA24-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA27-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PA30-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum
EA5070PAS-6.000M	AT-Cut Fundamental	SMD Ceramic 5.0mm x 7.0mm	±15ppm	-20°C to +70°C	±3ppm	7pF Maximum

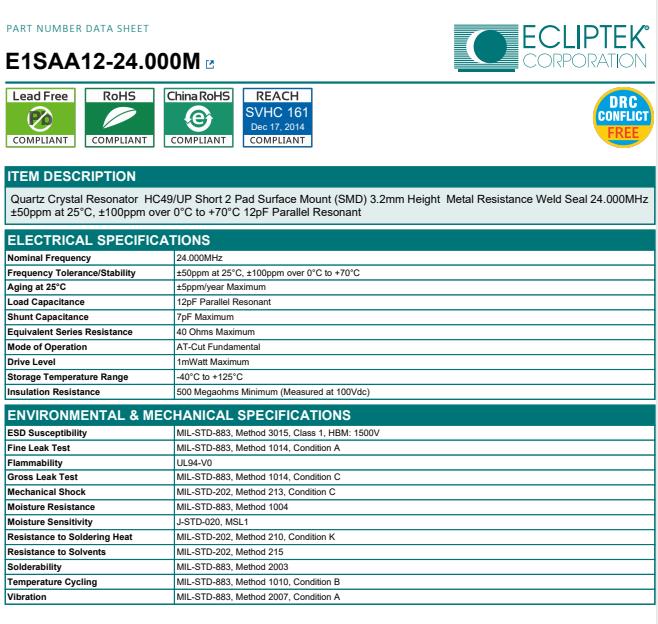

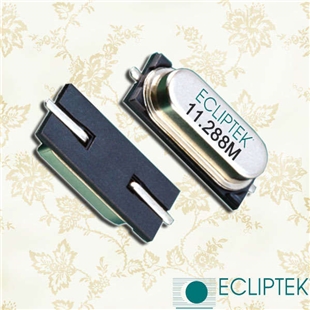

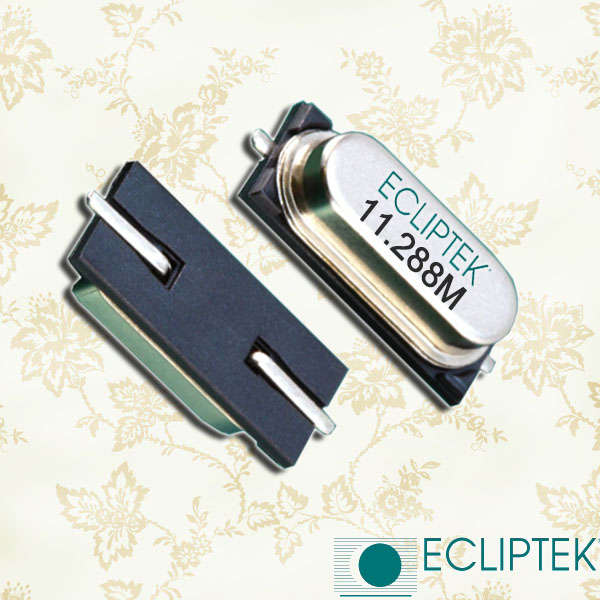

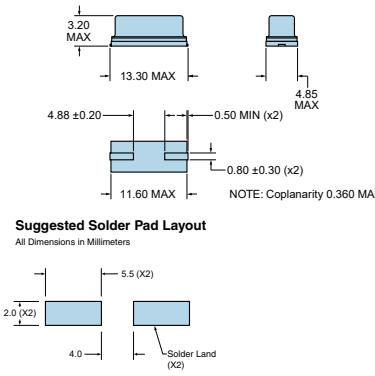

E1SAA10-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA12-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA14-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA15-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA16-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA17-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA18-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA19-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA20-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA22-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA23-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA24-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA25-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA27-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA30-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
E1SAA32-6.000M	AT-Cut Fundamental	SMD HC-49/UP Short	±100ppm	0°C to +70°C	±5ppm	7pF Maximum
