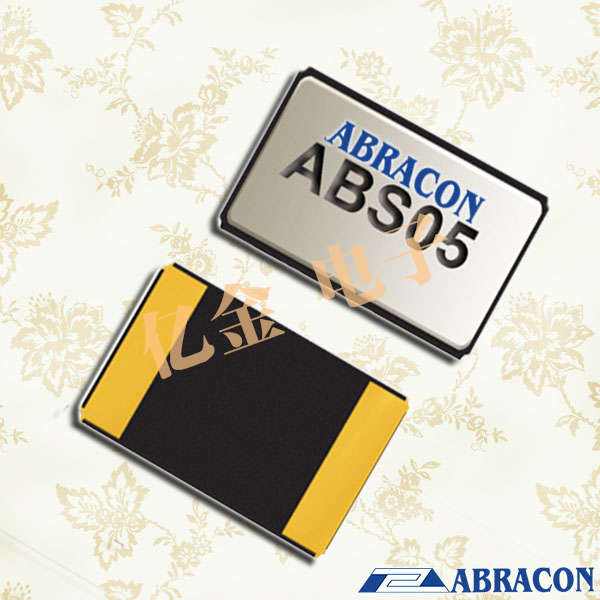

ABS05-32.768KHZ-X-3-T3,32.768KHz,4PF,25PPM,1610,-40~85℃
- 频率：32.768KHz
- 尺寸：1610mm
- 应 用： ABS05-32.768KHZ-X-3-T3,32.768KHz,4PF,25PPM,1610,-40~85℃，欧美艾伯康晶振公司,最小的32.768KHz包可用的0.5mm高度，理想的高密度电路板陶瓷封装提供优良的环境和耐热性扩展温度-40C到+85C的工业应用，智能显示信用...
-
-
.jpg)
ABS05-32.768KHZ-X-3-T3,32.768KHz,4PF,25PPM,1610,-40~85℃，欧美艾伯康晶振公司,最小的32.768 KHz包可用的0.5mm高度，理想的高密度电路板陶瓷封装提供优良的环境和耐热性扩展温度-40°C到+85°C的工业应用，智能显示信用卡，广泛的通信和测量设备，商业和工业应用无线通信，PDA和棕榈飞行员

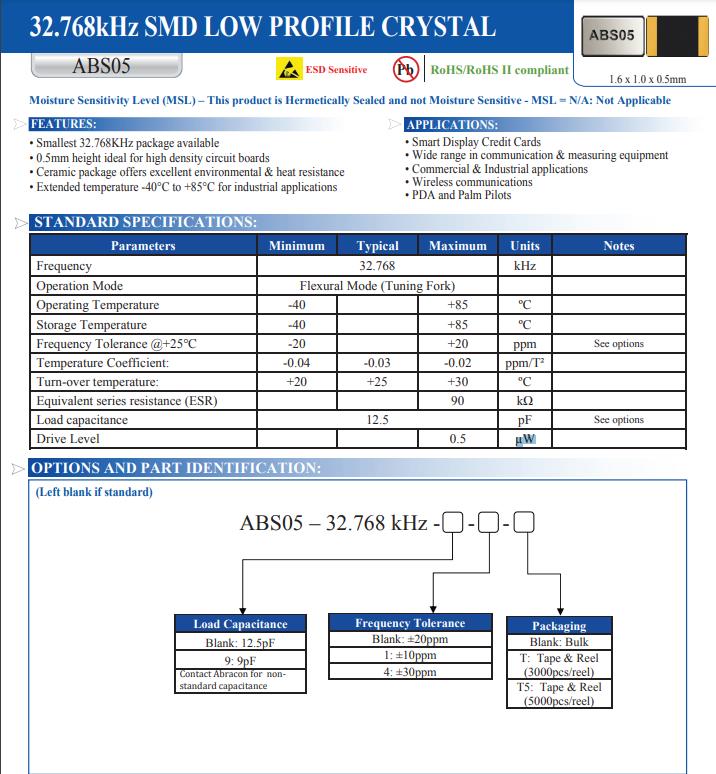

ABS05-32.768KHZ-X-3-T3,32.768KHz,4PF,25PPM,1610,-40~85℃
| Parameters | Minimum | Typical | Maximum | Units | |||||
| 频率 | 32.768 |
 Hz |
|||||||
| 工作模式 | Flexural Mode (Tuning Fork) | ||||||||
| 工作温度 | --40 | +85 | ºC | ||||||
| 储存温度 | --40 | +85 | ºC | ||||||
| 频率容差 @+25°C | --20 | +20 | ppm | ||||||
| 温度系数 | --0.04 | --0.03 | --0.02 | ppm/T² | |||||
| 翻转温度 | +20 | +25 | +30 |
 ºC |
|||||
| 等效串联电阻（ESR） | 90 | ? | |||||||
| 负载电容 | 12.5 | pF | |||||||
| 驱动电平 | 0.5 | µW | |||||||
.jpg)

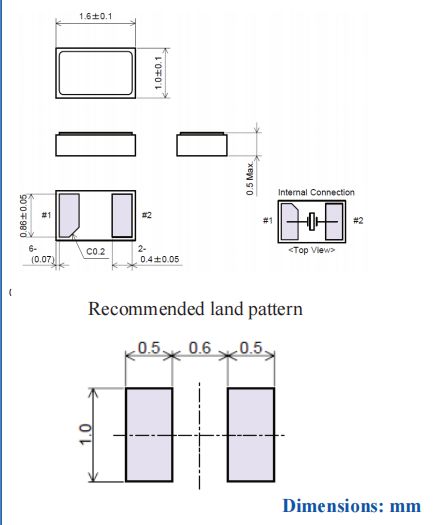

ABS05-32.768KHZ-X-3-T3,32.768KHz,4PF,25PPM,1610,-40~85℃
.jpg)
| ABRACON编号 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 |
| ABMM-32.000MHZ-B2F-T | Abracon LLC | ABMM | 32 MHz | ±20ppm | 18pF |
| ABS09-32.768KHZ-T | Abracon LLC | ABS09 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS09-32.768KHZ-9-T | Abracon LLC | ABS09 | 32.768 kHz | ±20ppm | 9pF |
| ABMM-14.7456MHZ-B2-T | Abracon LLC | ABMM | 14.7456 MHz | ±20ppm | 18pF |
| ABMM2-14.7456MHZ-E2-T | Abracon LLC | ABMM2 | 14.7456 MHz | ±20ppm | 18pF |
| ABMM-25.000MHZ-B2-T | Abracon LLC | ABMM | 25 MHz | ±20ppm | 18pF |
| ABMM2-7.3728MHZ-E2-T | Abracon LLC | ABMM2 | 7.3728 MHz | ±20ppm | 18pF |
| ABMM-16.000MHZ-B2-T | Abracon LLC | ABMM | 16 MHz | ±20ppm | 18pF |
| ABMM2-11.0592MHZ-E2-T | Abracon LLC | ABMM2 | 11.0592 MHz | ±20ppm | 18pF |
| ABS07-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS07-32.768KHZ-7-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 7pF |
| ABS07-166-32.768KHZ-T | Abracon LLC | ABS07 | 32.768 kHz | ±10ppm | 7pF |
| ABS07-32.768KHZ-9-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 9pF |
| ABS07AIG-32.768KHZ-9-T | Abracon LLC | ABS07AIG | 32.768 kHz | ±20ppm | 9pF |
| ABS07AIG-32.768KHZ-9-D-T | Abracon LLC | ABS07AIG | 32.768 kHz | ±20ppm | 9pF |
| ABS07-32.768KHZ-9-4-T | Abracon LLC | ABS07 | 32.768 kHz | ±30ppm | 9pF |
| ABS07L-32.768KHZ-T | Abracon LLC | ABS07L | 32.768 kHz | ±20ppm | 12.5pF |
| ABS07-32.768KHZ-1-T | Abracon LLC | ABS07 | 32.768 kHz | ±10ppm | 12.5pF |
| ABS05-32.768KHZ-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS05-32.768KHZ-9-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 9pF |
| ABS06-32.768KHZ-T | Abracon LLC | ABS06 | 32.768 kHz | ±20ppm | 12.5pF |
| ABS06-32.768KHZ-9-T | Abracon LLC | ABS06 | 32.768 kHz | ±20ppm | 9pF |
| ABS06-32.768KHZ-1-T | Abracon LLC | ABS06 | 32.768 kHz | ±10ppm | 12.5pF |
| ABS05-32.768KHZ-7-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 7pF |
| ABS05-32.768KHZ-X-T5 | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 4pF |
| ABS05-32.768KHZ-6-T | Abracon LLC | ABS05 | 32.768 kHz | ±20ppm | 6pF |
| ABS05-32.768KHZ-X-3-T3 | Abracon LLC | ABS05 | 32.768 kHz | ±25ppm | 4pF |
| ABS06-32.768KHZ-9-1-T | Abracon LLC | ABS06 | 32.768 kHz | ±10ppm | 9pF |
| ABS05W-32.768KHZ-K-2-T | Abracon LLC | ABS05W | 32.768 kHz | ±20ppm | 4pF |
| ABS07-32.768KHZ-4-T | Abracon LLC | ABS07 | 32.768 kHz | ±30ppm | 4pF |
| ABS07-32.768KHZ-9-H-T | Abracon LLC | ABS07 | 32.768 kHz | ±20ppm | 9pF |
| ABS07AIG-32.768KHZ-7-D-T | Abracon LLC | ABS07AIG | 32.768 kHz | ±20ppm | 7pF |
| ABS25-32.000KHZ-T | Abracon LLC | ABS25 | 32 kHz | ±30ppm | 12.5pF |
| ABS05W-32.768KHZ-J-2-T | Abracon LLC | ABS05W | 32.768 kHz | ±20ppm | 4pF |
| ABS06-32.768KHZ-7-T | Abracon LLC | ABS06 | 32.768 kHz | ±20ppm | 7pF |
| ABS25-60.000KHZ-T | Abracon LLC | ABS25 | 60 kHz | ±30ppm | 12.5pF |
| ABS04W-32.768KHZ-6-J2-T5 | Abracon LLC | ABS04W | 32.768 kHz | ±20ppm | 6pF |
| ABS04W-32.768KHZ-4-D2-T5 | Abracon LLC | ABS04W | 32.768 kHz | ±20ppm | 4pF |
| ABS04W-32.768KHZ-4-J2-T5 | Abracon LLC | ABS04W | 32.768 kHz | ±20ppm | 4pF |
| ABMM2-50.000MHZ-E2F-T | Abracon LLC | ABMM2 | 50 MHz | ±20ppm | 18pF |
| ABMM2-20.000MHZ-E2-T | Abracon LLC | ABMM2 | 20 MHz | ±20ppm | 18pF |
| ABMM2-14.31818MHZ-E2-T | Abracon LLC | ABMM2 | 14.31818 MHz | ±20ppm | 18pF |
| ABMM-11.0592MHZ-B2-T | Abracon LLC | ABMM | 11.0592 MHz | ±20ppm | 18pF |
| ABMM-29.4912MHZ-10-B-T | Abracon LLC | ABMM | 29.4912 MHz | ±50ppm | 10pF |
| ABMM1-24.000MHZ-16-T | Abracon LLC | ABMM1 | 24 MHz | ±50ppm | 16pF |
| ABS13-32.768KHZ-T | Abracon LLC | ABS13 | 32.768 kHz | ±20ppm | 12.5pF |
