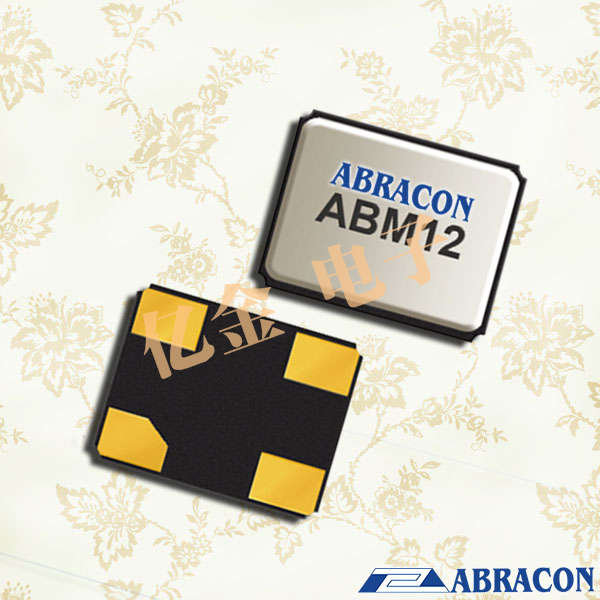

ABM12-117-27.120MHZ-T3|27.12MHz|10PPM|8PF|1612
- 频率：27.12
- 尺寸：1.65*1.25mm
- 应 用： ABM12-117-27.120MHZ-T3|27.12MHz|10PPM|8PF|1612，欧美艾伯康晶振公司,适用于RoHS回流型材可用的紧密公差和稳定性电子束密封陶瓷封装，水分敏感度（MSL）-本产品密封且不敏感-MSL=N/A：不适用,保证高精度和可靠性,工...
-
.jpg)
ABM12-117-27.120MHZ-T3|27.12MHz|10PPM|8PF|1612，欧美艾伯康晶振公司,适用于RoHS回流型材可用的紧密公差和稳定性电子束密封陶瓷封装，水分敏感度（MSL）-本产品密封且不敏感- MSL = N/A：不适用,保证高精度和可靠性,工业中最小的包装尺寸为1.6x1.2x0.46mm,蓝牙形，无线应用计算机，调制解调器，微处理器通信，测试设备高密度应用PCMCIA便携式收音机和MP3播放器

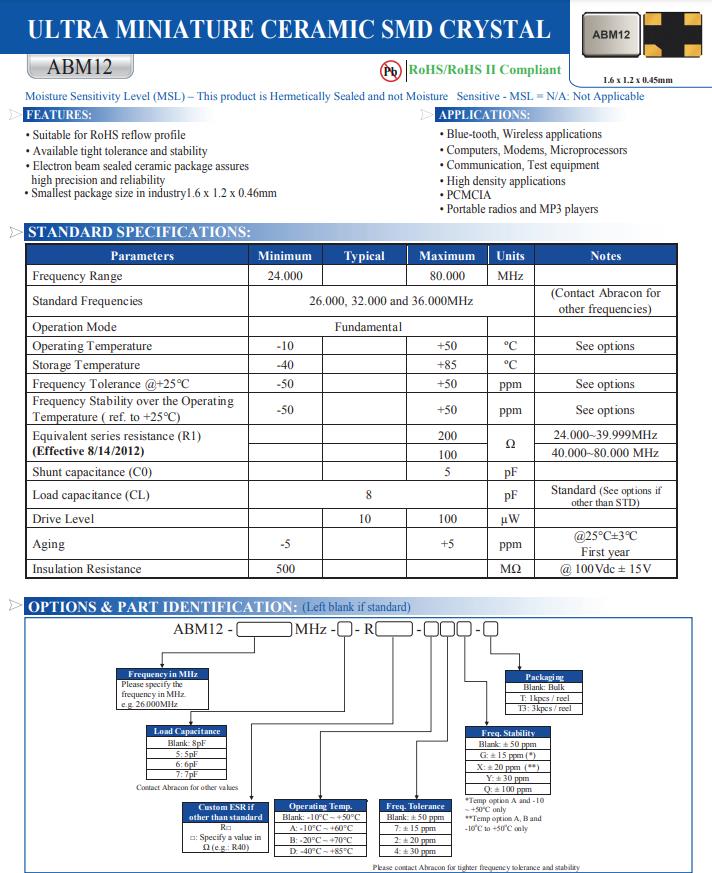

ABM12-117-27.120MHZ-T3|27.12MHz|10PPM|8PF|1612
| Parameters | Minimum | Typical | Maximum | Units | |||||||||
| 频率 | 24.000 | 80.000 | MHz | ||||||||||
| 标准频率 | 26.000, 32.000 and 36.000MHz | ||||||||||||
| 操作模式 | Fundamental | ||||||||||||
| 工作温度 | - 10 | +50 | ºC | ||||||||||
| 储存温度 | --40 | +85 | ºC | ||||||||||
| 频率容差 @+25°C | --50 | +50 | ppm | ||||||||||
| 工作温度下的频率稳定性 ( ref. to +25°C) | --50 | +50 | ppm | ||||||||||
| 等效串联电阻（R1） | 200 | ? | |||||||||||
| 100 | |||||||||||||
| 并联电容 (C0) | 5 | pF | |||||||||||
| 负载电容 (CL) | 8 | pF | |||||||||||
| 驱动电平 | 10 | 100 | µW | ||||||||||
| 老化 | --5 | +5 | ppm | ||||||||||
| 绝缘电阻 | 500 | M? | |||||||||||
.jpg)
ABM12-117-27.120MHZ-T3|27.12MHz|10PPM|8PF|1612
| ABRACON编号 | 制造商 | 型号 | 频率 | 频率容差 | 负载电容 |
| ABM10-167-12.000MHZ-T3 | Abracon晶振 | ABM10 | 12 MHz | ±10ppm | 8pF |
| ABM10-166-12.000MHZ-T3 | Abracon晶振 | ABM10 | 12 MHz | ±10ppm | 8pF |
| ABM11-143-27.120MHZ-T3 | Abracon晶振 | ABM11 | 27.12 MHz | ±10ppm | 8pF |
| ABM11-140-26.000MHZ-T3 | Abracon晶振 | ABM11 | 26 MHz | ±10ppm | 8pF |
| ABM11-16.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 16 MHz | ±20ppm | 10pF |
| ABM11-30.000MHZ-B1U-T | Abracon晶振 | ABM11 | 30 MHz | ±10ppm | 10pF |
| ABM11-20.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 20 MHz | ±20ppm | 10pF |
| ABM10-16.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 16 MHz | ±20ppm | 10pF |
| ABM10-25.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 25 MHz | ±20ppm | 10pF |
| ABM10-24.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 24 MHz | ±20ppm | 10pF |
| ABM10-32.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 32 MHz | ±20ppm | 10pF |
| ABM10-20.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 20 MHz | ±20ppm | 10pF |
| ABM10-19.200MHZ-D30-T3 | Abracon晶振 | ABM10 | 19.2 MHz | ±20ppm | 10pF |
| ABM10-30.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 30 MHz | ±20ppm | 10pF |
| ABM10-16.384MHZ-D30-T3 | Abracon晶振 | ABM10 | 16.384 MHz | ±20ppm | 10pF |
| ABM10-48.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 48 MHz | ±20ppm | 10pF |
| ABM11-25.000MHZ-D7X-T | Abracon晶振 | ABM11 | 25 MHz | ±15ppm | 10pF |
| ABM11-142-27.120MHZ-T3 | Abracon晶振 | ABM11 | 27.12 MHz | ±10ppm | 8pF |
| ABM11-38.400MHZ-D2X-T3 | Abracon晶振 | ABM11 | 38.4 MHz | ±20ppm | 10pF |
| ABM11-25.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 25 MHz | ±20ppm | 10pF |
| ABM11-24.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 24 MHz | ±20ppm | 10pF |
| ABM11-48.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 48 MHz | ±20ppm | 10pF |
| ABM11-30.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 30 MHz | ±20ppm | 10pF |
| ABM11-32.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 32 MHz | ±20ppm | 10pF |
| ABM11-28.63636MHZ-D2X-T3 | Abracon晶振 | ABM11 | 28.63636 MHz | ±20ppm | 10pF |
| ABM11-27.000MHZ-D2X-T3 | Abracon晶振 | ABM11 | 27 MHz | ±20ppm | 10pF |
| ABM10-16.000MHZ-E20-T | Abracon晶振 | ABM10 | 16 MHz | ±20ppm | 10pF |
| ABM10-25.000MHZ-E20-T | Abracon晶振 | ABM10 | 25 MHz | ±20ppm | 10pF |
| ABM10-24.000MHZ-E20-T | Abracon晶振 | ABM10 | 24 MHz | ±20ppm | 10pF |
| ABM10-27.000MHZ-E20-T | Abracon晶振 | ABM10 | 27 MHz | ±20ppm | 10pF |
| ABM10-30.000MHZ-E20-T | Abracon晶振 | ABM10 | 30 MHz | ±20ppm | 10pF |
| ABM10-20.000MHZ-E20-T | Abracon晶振 | ABM10 | 20 MHz | ±20ppm | 10pF |
| ABM10-24.576MHZ-E20-T | Abracon晶振 | ABM10 | 24.576 MHz | ±20ppm | 10pF |
| ABM10-18.432MHZ-E20-T | Abracon晶振 | ABM10 | 18.432 MHz | ±20ppm | 10pF |
| ABM12-115-26.000MHZ-T3 | Abracon晶振 | ABM12 | 26 MHz | ±10ppm | 8pF |
| ABM11-32.000MHZ-B7G-T | Abracon晶振 | ABM11 | 32 MHz | ±15ppm | 10pF |
| ABM11-25.000MHZ-B7G-T | Abracon晶振 | ABM11 | 25 MHz | ±15ppm | 10pF |
| ABM11-26.000MHZ-B7G-T | Abracon晶振 | ABM11 | 26 MHz | ±15ppm | 10pF |
| ABM11-24.000MHZ-B7G-T | Abracon晶振 | ABM11 | 24 MHz | ±15ppm | 10pF |
| ABM10-26.000MHZ-7-A15-T | Abracon晶振 | ABM10 | 26 MHz | ±15ppm | 10pF |
| ABM10-32.000MHZ-8-7-A15-T | Abracon晶振 | ABM10 | 32 MHz | ±15ppm | 8pF |
| ABM12-32.000MHZ-B2X-T3 | Abracon晶振 | ABM12 | 32 MHz | ±20ppm | 8pF |
| ABM12-30.000MHZ-B2X-T3 | Abracon晶振 | ABM12 | 30 MHz | ±20ppm | 8pF |
| ABM12-40.000MHZ-B2X-T3 | Abracon晶振 | ABM12 | 40 MHz | ±20ppm | 8pF |
| ABM10-24.576MHZ-D30-T3 | Abracon晶振 | ABM10 | 24.576 MHz | ±20ppm | 10pF |
| ABM10-18.432MHZ-D30-T3 | Abracon晶振 | ABM10 | 18.432 MHz | ±20ppm | 10pF |
| ABM10-27.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 27 MHz | ±20ppm | 10pF |
| ABM10-26.000MHZ-D30-T3 | Abracon晶振 | ABM10 | 26 MHz | ±20ppm | 10pF |
| ABM10-16.384MHZ-E20-T | Abracon晶振 | ABM10 | 16.384 MHz | ±20ppm | 10pF |
| ABM10-22.1184MHZ-E20-T | Abracon晶振 | ABM10 | 22.1184 MHz | ±20ppm | 10pF |
| ABM11-40.000MHZ-B7G-T | Abracon晶振 | ABM11 | 40 MHz | ±15ppm | 10pF |
| ABM12-26.000MHZ-B2X-T3 | Abracon晶振 | ABM12 | 26 MHz | ±20ppm | 8pF |
| ABM12-48.000MHZ-B2X-T3 | Abracon晶振 | ABM12 | 48 MHz | ±20ppm | 8pF |
| ABM12-27.000MHZ-B2X-T3 | Abracon晶振 | ABM12 | 27 MHz | ±20ppm | 8pF |
| ABM12-116-26.000MHZ-T3 | Abracon晶振 | ABM12 | 26 MHz | ±10ppm | 8pF |
| ABM11-26.000MHZ-B1U-T | Abracon晶振 | ABM11 | 26 MHz | ±10ppm | 10pF |
| ABM11-16.000MHZ-12-N1G-T | Abracon晶振 | ABM11 | 16 MHz | ±10ppm | 12pF |
| ABM10-40.000MHZ-8-7-A15-T | Abracon晶振 | ABM10 | 40 MHz | ±15ppm | 8pF |
| ABM11-27.000MHZ-B1U-T | Abracon晶振 | ABM11 | 27 MHz | ±10ppm | 10pF |
| ABM11-27.000MHZ-D7X-T | Abracon晶振 | ABM11 | 27 MHz | ±15ppm | 10pF |
| ABM11-48.000MHZ-D7X-T | Abracon晶振 | ABM11 | 48 MHz | ±15ppm | 10pF |
| ABM11-24.000MHZ-12-B1U-T | Abracon晶振 | ABM11 | 24 MHz | ±10ppm | 12pF |
| ABM11-16.000MHZ-9-B1U-T | Abracon晶振 | ABM11 | 16 MHz | ±10ppm | 9pF |
| ABM10-24.000MHZ-8-7-A15-T | Abracon晶振 | ABM10 | 24 MHz | ±15ppm | 8pF |
| ABM10-19.200MHZ-E20-T | Abracon晶振 | ABM10 | 19.2 MHz | ±20ppm | 10pF |
| ABM11-27.000MHZ-B7G-T | Abracon晶振 | ABM11 | 27 MHz | ±15ppm | 10pF |
| ABM11-20.000MHZ-B7G-T | Abracon晶振 | ABM11 | 20 MHz | ±15ppm | 10pF |
| ABM11-28.63636MHZ-B7G-T | Abracon晶振 | ABM11 | 28.63636 MHz | ±15ppm | 10pF |
| ABM11-32.000MHZ-B1U-T | Abracon晶振 | ABM11 | 32 MHz | ±10ppm | 10pF |
| ABM11-38.400MHZ-B7G-T | Abracon晶振 | ABM11 | 38.4 MHz | ±15ppm | 10pF |
| ABM11-38.400MHZ-B1U-T | Abracon晶振 | ABM11 | 38.4 MHz | ±10ppm | 10pF |
| ABM11-32.000MHZ-8-7G-T | Abracon晶振 | ABM11 | 32 MHz | ±15ppm | 8pF |
| ABM11-27.120MHZ-B1U-T | Abracon晶振 | ABM11 | 27.12 MHz | ±10ppm | 10pF |
| ABM11-24.000MHZ-12-N1G-T | Abracon晶振 | ABM11 | 24 MHz | ±10ppm | 12pF |
| ABM11-40.000MHZ-B1U-T3 | Abracon晶振 | ABM11 | 40 MHz | ±10ppm | 10pF |
| ABM11-24.000MHZ-B1U-T | Abracon晶振 | ABM11 | 24 MHz | ±10ppm | 10pF |
| ABM12-117-27.120MHZ-T3 | Abracon晶振 | ABM12 | 27.12 MHz | ±10ppm | 8pF |
| ABM11-25.000MHZ-18-B2Y-T | Abracon晶振 | ABM11 | 25 MHz | ±20ppm | 18pF |
| ABM10-28.63636MHZ-8-7A15-T | Abracon晶振 | ABM10 | 28.63636 MHz | ±15ppm | 8pF |
