小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用
来源：http://m.hneyq.com 作者：亿金电子 2022年09月26
EPSON晶振发展成立至今成为国际赫赫有名的电子元件制造商,不仅为用户提供优异的石英晶振,贴片晶振,TCXO晶振,时钟晶体振荡器等产品,同时致力于为用户提供高可靠技术解决方案.为了更好的服务全球用户,爱普生晶振的生产销售据点遍布日本,马来西亚,苏州,泰国等国家.

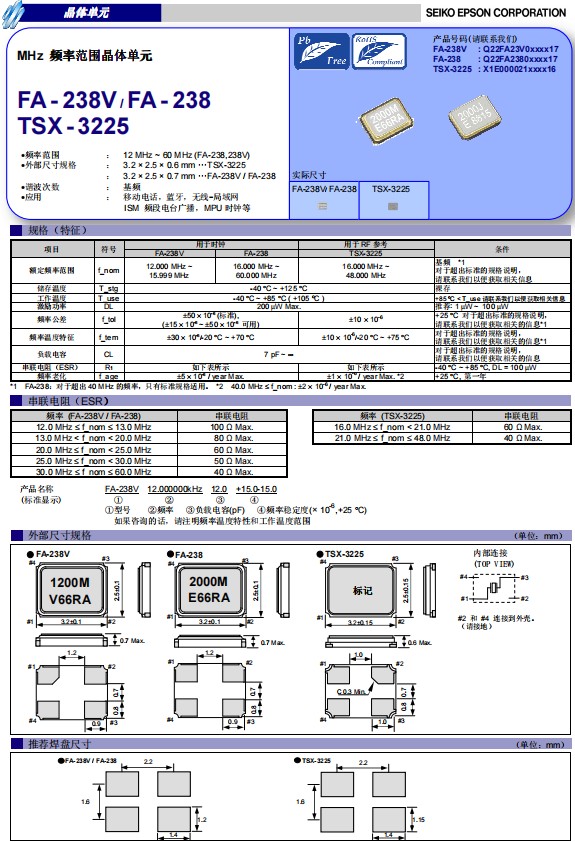

日本进口爱普生晶振FA-238V是一款小体积晶振尺寸3.2x2.5mm四脚贴片晶振，无源晶振，石英晶体谐振器，FA-238V频率范围12MHz至15.9999MHz之间，可以在-40℃至+85℃（+105℃）温度内稳定工作，该产品具有小体积轻薄型，耐热、耐振、耐冲击等优良的耐环境特性，被广泛用于移动通讯，智能手机，平板电脑，汽车电子，移动电话，无线蓝牙，ISM频段电台广播，MPU时钟等.
小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用,Q22FA23V0038500,爱普生晶振
.JPG)
小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用,Q22FA23V0038500,爱普生晶振
日本进口爱普生晶振FA-238V是一款小体积晶振尺寸3.2x2.5mm四脚贴片晶振，无源晶振，石英晶体谐振器，FA-238V频率范围12MHz至15.9999MHz之间，可以在-40℃至+85℃（+105℃）温度内稳定工作，该产品具有小体积轻薄型，耐热、耐振、耐冲击等优良的耐环境特性，被广泛用于移动通讯，智能手机，平板电脑，汽车电子，移动电话，无线蓝牙，ISM频段电台广播，MPU时钟等.
小体积贴片晶振Q22FA23V0013600适用于ISM频段电台广播应用,Q22FA23V0038500,爱普生晶振
| 产品编码 |
 爱普生晶振 |
 型号 |
 频率 |
 负载电容 |
 精度 |
| Q22FA23V0001200 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 12pF | +/-50ppm |
| Q22FA23V0001800 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-50ppm |
| Q22FA23V0002200 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-30ppm |
| Q22FA23V0002600 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 10pF | +/-50ppm |
| Q22FA23V0002700 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 20pF | +/-50ppm |
| Q22FA23V0002800 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 15pF | +/-50ppm |
| Q22FA23V0002900 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 20pF | +/-50ppm |
| Q22FA23V0003000 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 20pF | +/-30ppm |
| Q22FA23V0003300 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-30ppm |
| Q22FA23V0003700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 20pF | +/-50ppm |
| Q22FA23V0004400 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 20pF | +/-50ppm |
| Q22FA23V0004800 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 7pF | +/-50ppm |
| Q22FA23V0005200 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 10pF | +/-50ppm |
| Q22FA23V0006800 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 12pF | +/-50ppm |
| Q22FA23V0006900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-15ppm |
| Q22FA23V0008200 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 16pF | +/-50ppm |
| Q22FA23V0008500 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 8pF | +/-50ppm |
| Q22FA23V0008600 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 12pF | +/-50ppm |
| Q22FA23V0009500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 16pF | +/-50ppm |
| Q22FA23V0010300 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12.5pF | +/-30ppm |
| Q22FA23V0010600 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 11pF | +/-30ppm |
| Q22FA23V0010700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-50ppm |
| Q22FA23V0011400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 18pF | +/-50ppm |
| Q22FA23V0011900 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 16pF | +/-50ppm |
| Q22FA23V0012300 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 12pF | +/-20ppm |
| Q22FA23V0013100 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 18pF | +/-50ppm |
| Q22FA23V0013600 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 8pF | +/-50ppm |
| Q22FA23V0014400 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-15ppm |
| Q22FA23V0014900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 20pF | +/-30ppm |
| Q22FA23V0015000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-10ppm |
| Q22FA23V0016000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 16pF | +/-30ppm |
| Q22FA23V0016200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 10pF | +/-50ppm |
| Q22FA23V0016400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 9pF | +/-50ppm |
| Q22FA23V0017000 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-30ppm |
| Q22FA23V0017800 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 18pF | +/-50ppm |
| Q22FA23V0017900 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 10pF | +/-50ppm |
| Q22FA23V0018000 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 16pF | +/-50ppm |
| Q22FA23V0019200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 10pF | +/-30ppm |
| Q22FA23V0019300 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12.5pF | +/-50ppm |
| Q22FA23V0019500 | 3.2x2.5x0.7mm | FA-238V | 13.000000MHz | 9pF | +/-20ppm |
| Q22FA23V0019700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 8pF | +/-15ppm |
| Q22FA23V0020500 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 8pF | +/-50ppm |
| Q22FA23V0021000 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 18pF | +/-50ppm |
| Q22FA23V0023300 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-20ppm |
| Q22FA23V0023500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 9pF | +/-30ppm |
| Q22FA23V0023900 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 10pF | +/-50ppm |
| Q22FA23V0024100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-50ppm |
| Q22FA23V0024500 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 16pF | +/-50ppm |
| Q22FA23V0024700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 10pF | +/-20ppm |
| Q22FA23V0025500 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-20ppm |
| Q22FA23V0026600 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 16pF | +/-50ppm |
| Q22FA23V0026800 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 16pF | +/-50ppm |
| Q22FA23V0027900 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 18pF | +/-30ppm |
| Q22FA23V0029100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-15ppm |
| Q22FA23V0030700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 8pF | +/-30ppm |
| Q22FA23V0031000 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 20pF | +/-30ppm |
| Q22FA23V0031400 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 10pF | +/-50ppm |
| Q22FA23V0032600 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-10ppm |
| Q22FA23V0032700 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 12pF | +/-20ppm |
| Q22FA23V0033200 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 18pF | +/-30ppm |
| Q22FA23V0035800 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 7pF | +/-30ppm |
| Q22FA23V0036700 | 3.2x2.5x0.7mm | FA-238V | 14.318000MHz | 9pF | +/-50ppm |
| Q22FA23V0037200 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 18pF | +/-20ppm |
| Q22FA23V0037300 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 16pF | +/-50ppm |
| Q22FA23V0037400 | 3.2x2.5x0.7mm | FA-238V | 13.560000MHz | 9pF | +/-50ppm |
| Q22FA23V0037500 | 3.2x2.5x0.7mm | FA-238V | 12.800000MHz | 15pF | +/-10ppm |
| Q22FA23V0037900 | 3.2x2.5x0.7mm | FA-238V | 13.300000MHz | 10pF | +/-50ppm |
| Q22FA23V0038000 | 3.2x2.5x0.7mm | FA-238V | 12.993000MHz | 10pF | +/-50ppm |
| Q22FA23V0038500 | 3.2x2.5x0.7mm | FA-238V | 12.800000MHz | 15pF | +/-10ppm |
| Q22FA23V0039600 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 7pF | +/-50ppm |
| Q22FA23V0039700 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 12pF | +/-30ppm |
| Q22FA23V0040000 | 3.2x2.5x0.7mm | FA-238V | 12.288000MHz | 12pF | +/-15ppm |
| Q22FA23V0040100 | 3.2x2.5x0.7mm | FA-238V | 13.500000MHz | 10pF | +/-15ppm |
| Q22FA23V0041900 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 15pF | +/-15ppm |
| Q22FA23V0042500 | 3.2x2.5x0.7mm | FA-238V | 12.500000MHz | 7pF | +/-50ppm |
| Q22FA23V0042600 | 3.2x2.5x0.7mm | FA-238V | 14.745600MHz | 10pF | +/-50ppm |
| Q22FA23V0043100 | 3.2x2.5x0.7mm | FA-238V | 14.318180MHz | 8pF | +/-20ppm |
| Q22FA23V0043200 | 3.2x2.5x0.7mm | FA-238V | 12.000000MHz | 22pF | +/-50ppm |
| Q22FA23V0043400 | 3.2x2.5x0.7mm | FA-238V | 12.800000MHz | 15pF | +/-50ppm |
日本EPSON拥有先进的生产设备,追求“省、小、精”的独特技术,研发制造符合业界需求的石英晶振,贴片晶振,有源晶体振荡器等产品.爱普生所生产的石英贴片晶振产品,
爱普生品牌的产业遍布全球,即使除了晶振行业,还有爱普生电容,爱普生打印机,爱普生时钟模块等产品被大家所熟知,多年来因其高稳定的产品质量成为大家一致认可的品牌.
