石英晶体谐振器Q24FA20H0006600适用于平板电脑应用
来源：http://m.hneyq.com 作者：亿金电子 2022年09月24

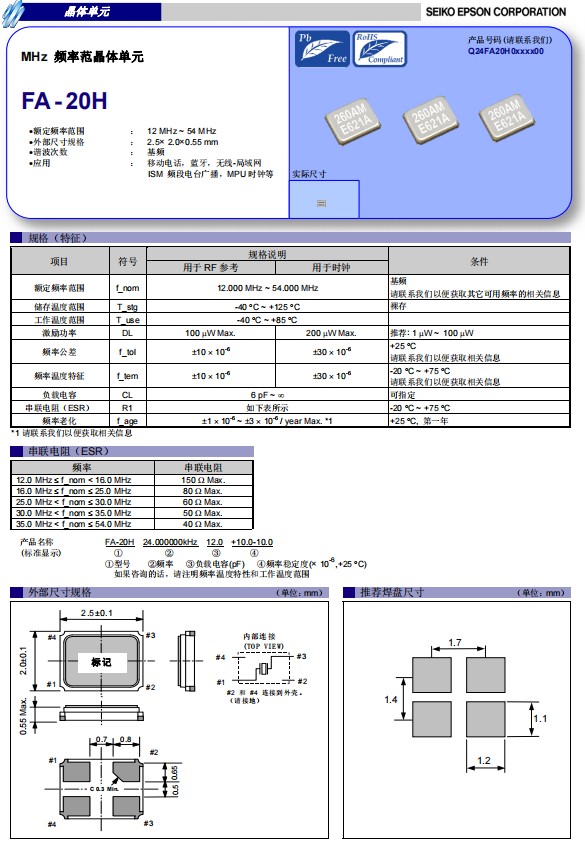

爱普生晶振FA-20H是MHZ系列的晶振，小体积尺寸2.5x2.0mm石英晶体谐振器，四脚贴片无源晶振，频率范围12MHz至54MHz。其实每一款爱普生晶振都有它自己的身份编码，其中16MHZ的频率，负载电容为9PF，30PPM的常用精度，可在-20℃至+75℃的范围内工作，储存温度可达-40℃至+125℃，这些主要的晶振参数让这颗爱普生晶振FA-20H有了一个身份证号码，也就是爱普生晶振编码Q24FA20H0006600，但是同样的16MHZ，工作温度范围以及储存温度都是一样的，却只因精度更高了一点，就让这款FA-20H晶振的爱普生晶振编码发生了改变，10PPM的高精度的爱普生晶振编码为Q24FA20H0035200。被广泛用户小型便捷式设备，可穿戴设备，智能手机，家用电器，平板电脑，汽车电子，无线蓝牙等。
石英晶体谐振器Q24FA20H0006600适用于平板电脑应用,Q24FA20H0035200,爱普生晶振编码
.JPG)
石英晶体谐振器Q24FA20H0006600适用于平板电脑应用,Q24FA20H0035200,爱普生晶振编码
无源晶振就是石英晶体谐振器的别称，英文名（crystal），无源晶体没有电压的问题，信号电平是可变的，主要用在各种电子线路中起产生频率的作用。是有2个引脚的无极性元件，需要借助于时钟电路才能产生振荡信号，自身无法振荡起来，分为直插式与贴片式。
石英晶体谐振器Q24FA20H0006600适用于平板电脑应用,Q24FA20H0035200,爱普生晶振编码
| 产品编码 |
 贴片晶振 |
 型号 |
 频率 |
 负载电容 |
   精度 |
| Q24FA20H0000100 | 2.5x2x0.55mm | FA-20H | 18.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0000300 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0000500 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0000600 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0000800 | 2.5x2x0.55mm | FA-20H | 48.000000MHz | 7pF | +/-50ppm |
| Q24FA20H0002900 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 8pF | +/-10ppm |
| Q24FA20H0003100 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0003600 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 11.5pF | +/-10ppm |
| Q24FA20H0003800 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0003900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | -9/+11ppm |
| Q24FA20H0004400 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0004700 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 8.5pF | +/-15ppm |
| Q24FA20H0005000 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 16pF | +/-10ppm |
| Q24FA20H0005100 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0005200 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0005300 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-20ppm |
| Q24FA20H0005400 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 12pF | +/-30ppm |
| Q24FA20H0005900 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 6pF | +/-10ppm |
| Q24FA20H0006600 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-30ppm |
| Q24FA20H0006900 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0007000 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 8pF | +/-10ppm |
| Q24FA20H0007300 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0007400 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10.5pF | +/-10ppm |
| Q24FA20H0007700 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0021400 | 2.5x2x0.55mm | FA-20H | 40.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0022300 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0022500 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 8pF | +/-10ppm |
| Q24FA20H0022800 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 10pF | +/-30ppm |
| Q24FA20H0022900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 6pF | +/-10ppm |
| Q24FA20H0023200 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0023300 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0023800 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0024100 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 12pF | +/-30ppm |
| Q24FA20H0024200 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0024700 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 16pF | +/-10ppm |
| Q24FA20H0024900 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 7pF | +/-30ppm |
| Q24FA20H0025100 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 10pF | +/-25ppm |
| Q24FA20H0026000 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0026600 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-30ppm |
| Q24FA20H0027000 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-30ppm |
| Q24FA20H0027100 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 10pF | +/-20ppm |
| Q24FA20H0027200 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-30ppm |
| Q24FA20H0027600 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 10pF | +/-15ppm |
| Q24FA20H0027900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0028700 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 8pF | +/-10ppm |
| Q24FA20H0028900 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0029800 | 2.5x2x0.55mm | FA-20H | 20.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0030800 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-30ppm |
| Q24FA20H0031500 | 2.5x2x0.55mm | FA-20H | 26.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0032100 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 10pF | +/-30ppm |
| Q24FA20H0032200 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 10pF | +/-15ppm |
| Q24FA20H0032500 | 2.5x2x0.55mm | FA-20H | 24.576000MHz | 18pF | +/-30ppm |
| Q24FA20H0032600 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 15pF | +/-20ppm |
| Q24FA20H0033100 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 12pF | +/-30ppm |
| Q24FA20H0033200 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-30ppm |
| Q24FA20H0033800 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 10pF | +/-10ppm |
| Q24FA20H0033900 | 2.5x2x0.55mm | FA-20H | 24.000000MHz | 18pF | +/-10ppm |
| Q24FA20H0034000 | 2.5x2x0.55mm | FA-20H | 19.200000MHz | 18pF | +/-10ppm |
| Q24FA20H0034300 | 2.5x2x0.55mm | FA-20H | 27.120000MHz | 18pF | +/-20ppm |
| Q24FA20H0034400 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0034500 | 2.5x2x0.55mm | FA-20H | 27.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0034600 | 2.5x2x0.55mm | FA-20H | 31.250000MHz | 12pF | +/-50ppm |
| Q24FA20H0035200 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 9pF | +/-10ppm |
| Q24FA20H0035500 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 16pF | +/-10ppm |
| Q24FA20H0036400 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 12pF | +/-10ppm |
| Q24FA20H0037100 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 6pF | +/-10ppm |
| Q24FA20H0037200 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 15pF | +/-20ppm |
| Q24FA20H0038000 | 2.5x2x0.55mm | FA-20H | 32.000000MHz | 16pF | +/-10ppm |
| Q24FA20H0038100 | 2.5x2x0.55mm | FA-20H | 28.636360MHz | 30pF | +/-30ppm |
| Q24FA20H0038400 | 2.5x2x0.55mm | FA-20H | 30.000000MHz | 15pF | +/-10ppm |
| Q24FA20H0038600 | 2.5x2x0.55mm | FA-20H | 12.000000MHz | 10pF | +/-20ppm |
| Q24FA20H0038700 | 2.5x2x0.55mm | FA-20H | 16.384000MHz | 10pF | +/-15ppm |
| Q24FA20H0039000 | 2.5x2x0.55mm | FA-20H | 25.000000MHz | 18pF | +/-20ppm |
| Q24FA20H0039100 | 2.5x2x0.55mm | FA-20H | 16.000000MHz | 16pF | +/-20ppm |
无源晶振就是石英晶体谐振器的别称，英文名（crystal），无源晶体没有电压的问题，信号电平是可变的，主要用在各种电子线路中起产生频率的作用。是有2个引脚的无极性元件，需要借助于时钟电路才能产生振荡信号，自身无法振荡起来，分为直插式与贴片式。
