有源晶振X1G005961000715专用于道路交通灯控制器

来源：http://m.hneyq.com 作者：亿金电子 2022年10月17

爱普生晶振公司1942年成立以来一直活跃在晶振领域,注重自主品牌的建设,掌握自主研制,定制,实现全套的晶振工艺技术流程,拥有石英晶体振荡器技术的自主技术专利和产品线,能够为客户提供全国产化晶振解决方案。

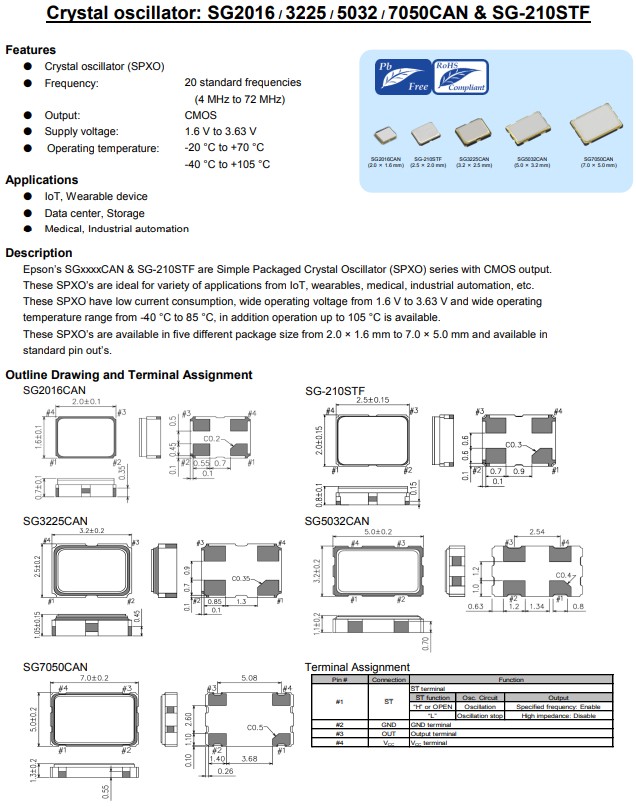

日本爱普生晶振SG3225CAN是一款支持CMOS输出石英晶体振荡器(SPXO)系列，小体积晶振尺寸3.2x2.5mm有源晶振，四脚贴片晶振，具有超小型，轻薄型，低功耗，低电流消耗特点，1.6V至3.63V的宽工作电压和宽工作温度范围从-40℃到+105℃，这些SPXO提供从2.0x1.6mm到7.0x5.0mm的五种不同封装尺寸，并提供标准引脚排列。非常适合物联网、蓝牙?？?，便捷式设备，可穿戴设备、医疗、工业自动化等各种应用。
有源晶振X1G005961000715专用于道路交通灯控制器,X1G005961002715,石英晶体振荡器

爱普生晶振	型号	频率	尺寸	输出波	电源电压	工作温度
X1G005961000115	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000215	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000415	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000515	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000715	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961000915	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001015	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001115	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001215	SG3225CAN	4.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001315	SG3225CAN	8.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001415	SG3225CAN	10.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001515	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961001615	SG3225CAN	12.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961001715	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961001815	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961001915	SG3225CAN	12.288000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002015	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961002115	SG3225CAN	14.745600MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002215	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961002315	SG3225CAN	16.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002415	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C

X1G005961002515	SG3225CAN	20.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002615	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961002715	SG3225CAN	24.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002815	SG3225CAN	24.576000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961002915	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961003015	SG3225CAN	25.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003115	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003215	SG3225CAN	26.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003315	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003415	SG3225CAN	27.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003515	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003615	SG3225CAN	32.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003715	SG3225CAN	33.330000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961003815	SG3225CAN	33.330000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961003915	SG3225CAN	33.333300MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 85 °C
X1G005961004015	SG3225CAN	33.333300MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004115	SG3225CAN	40.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004215	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961004315	SG3225CAN	48.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004415	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-20 to 70 °C
X1G005961004515	SG3225CAN	50.000000MHz	3.20x2.50x1.05mm	CMOS	1.620 to 3.630 V	-40 to 105 °C
X1G005961004615	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS	1.710 to 3.630 V	-20 to 70 °C
X1G005961004715	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS	1.710 to 3.630 V	-40 to 85 °C
X1G005961004815	SG3225CAN	72.000000MHz	3.20x2.50x1.05mm	CMOS	2.250 to 3.630 V	-40 to 105 °C

有源晶振X1G005961000715专用于道路交通灯控制器,X1G005961002715,石英晶体振荡器

石英晶体振荡器优点：

1、石英钟走时准、耗电省、经久耐用为其最大优点。不论是老式石英钟或是新式多功能石英钟都是以石英晶体振荡器为核心电路，其频率精度决定了电子钟表的走时精度。

2、随着电视技术的发展，近来彩电多采用500kHz或503kHz的晶体振荡器作为行、场电路的振荡源，经1/3的分频得到15625Hz的行频，其稳定性和可靠性大为提高。而且晶振价格便宜，更换容易。

3、在通信系统产品中，石英晶体振荡器的价值得到了更广泛的体现，同时也得到了更快的发展。许多高性能的石英晶振主要应用于通信网络、无线数据传输、高速数字数据传输等。
