时钟振荡器CWX823-014.31818M物联网专用晶振
来源：http://m.hneyq.com 作者：亿金电子 2023年04月25
Connorwinfield公司为顺应广大客户群体的需求，已研发生产出含有HCMOS输出，LVPECL输出以及LVDS输出有源晶振，并且电压可为3.3V或者5V，以商业或者工业温度范围展示在大家面前。压控晶体振荡器已成为锁相环应用的质量，紧密容差，低抖动和高频性能的基准。VCXO主要使用高频基模晶体，与频率合成相比，这种设计可以产生最佳的相位噪声和抖动性能。Connorwinfield晶振以其专有的“倒置台面”工艺技术生产晶体的能力而闻名，可以提供极高频率的基模谐振器。在放宽抖动要求的情况下，康纳温菲尔德提供基于频率合成集成电路设计的低成本模型其频率达到1.5GHZ并提供非常好的抖动性能。可以提供多种封装尺寸选项和性能特征的解决方案，使期能够有竞争力的满足客户可能拥有的任何应用要求。时钟振荡器CWX823-014.31818M物联网专用晶振,CWX823-020.0M,石英贴片晶振

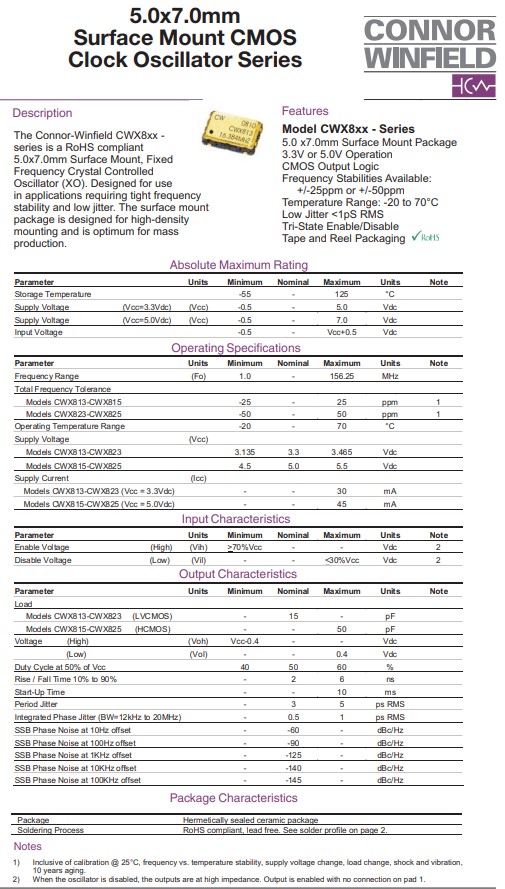

时钟振荡器CWX823-014.31818M物联网专用晶振,CWX823-020.0M,石英贴片晶振，Connorwinfield康纳温菲尔德晶振CWX823，是一款小体积晶振尺寸7.0x5.0mm密封陶瓷封装，时钟晶体振荡器，四脚贴片晶振，石英晶体振荡器，有源晶振，符合RoHS标准5.0x7.0mm毫米表面贴装，固定频率晶体控制振荡器(XO)。为使用而设计在要求严格频率的应用中稳定性和低抖动。表面贴装 封装设计用于高密度安装，是质量的最佳选择生产，符合RoHS，无铅。CWX8xx系列型号5.0x7.0毫米表贴封装，3.3V或5.0V工作电压，CMOS输出逻辑，可用的频率稳定性，低抖动< 1pS RMS，三态使能/禁用 胶带和卷轴包装 +/-25ppm或+/-50ppm，温度范围：-20至70摄氏度。被广泛用于通讯设备，无线网络，蓝牙模块，汽车电子，GPS定位系统，导航仪，医疗设备，数码电子，物联网等应用.
| 原厂代码 | 品牌 | 型号 | 频率 | 工作温度 | 包装/封装 |
| CWX823-012.0M | ConnorWinfield | CWX823 | 12MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-024.0M | ConnorWinfield | CWX823 | 24MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-050.0M | ConnorWinfield | CWX823 | 50MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-032.768M | 康纳温菲尔德晶振 | CWX823 | 32.768MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-018.432M | ConnorWinfield | CWX823 | 18.432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-049.152M | ConnorWinfield | CWX823 | 49.152MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-016.0M | ConnorWinfield | CWX823 | 16MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-012.288M | ConnorWinfield | CWX823 | 12.288MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-020.0M | ConnorWinfield | CWX823 | 20MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-027.0M | ConnorWinfield | CWX823 | 27MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-033.333M | ConnorWinfield | CWX823 | 33.333MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-100.0M | ConnorWinfield | CWX823 | 100MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-001.544M | ConnorWinfield | CWX823 | 1.544MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-040.0M | ConnorWinfield | CWX823 | 40MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-033.0M | ConnorWinfield | CWX823 | 33MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-004.0M | ConnorWinfield | CWX823 | 4MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-025.0M | ConnorWinfield | CWX823 | 25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-001.8432M | ConnorWinfield | CWX823 | 1.8432MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-064.0M | ConnorWinfield | CWX823 | 64MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-125.0M | ConnorWinfield | CWX823 | 125MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-156.25M | ConnorWinfield | CWX823 | 156.25MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-010.0M | ConnorWinfield | CWX823 | 10MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-029.4912M | ConnorWinfield | CWX823 | 29.4912MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-060.0M | ConnorWinfield | CWX823 | 60MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-024.576M | ConnorWinfield | CWX823 | 24.576MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-008.0M | 进口贴片晶振 | CWX823 | 8MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-007.3728M | ConnorWinfield | CWX823 | 7.3728MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-066.6666M | ConnorWinfield | CWX823 | 66.6666MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-032.0M | ConnorWinfield | CWX823 | 32MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-080.0M | ConnorWinfield | CWX823 | 80MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-016.384M | ConnorWinfield | CWX823 | 16.384MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-030.0M | ConnorWinfield | CWX823 | 30MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-044.736M | ConnorWinfield | CWX823 | 44.736MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-003.6864M | ConnorWinfield | CWX823 | 3.6864MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-014.31818M | ConnorWinfield | CWX823 | 14.31818MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-015.36M | ConnorWinfield | CWX823 | 15.36MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-019.44M | ConnorWinfield | CWX823 | 19.44MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-020.48M | ConnorWinfield | CWX823 | 20.48MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-045.0M | ConnorWinfield | CWX823 | 45MHz | -20°C ~ 70°C | 4-SMD, No Lead |
| CWX823-072.0M | ConnorWinfield | CWX823 | 72MHz | -20°C ~ 70°C | 4-SMD, No Lead |
